GX160 K1 QA2 (GC02) - Honda Engine, Made in Japan (SN: GC02-2000001 - GC02-8669999) CYLINDER BARREL Parts Diagram

Engine, Made in Japan

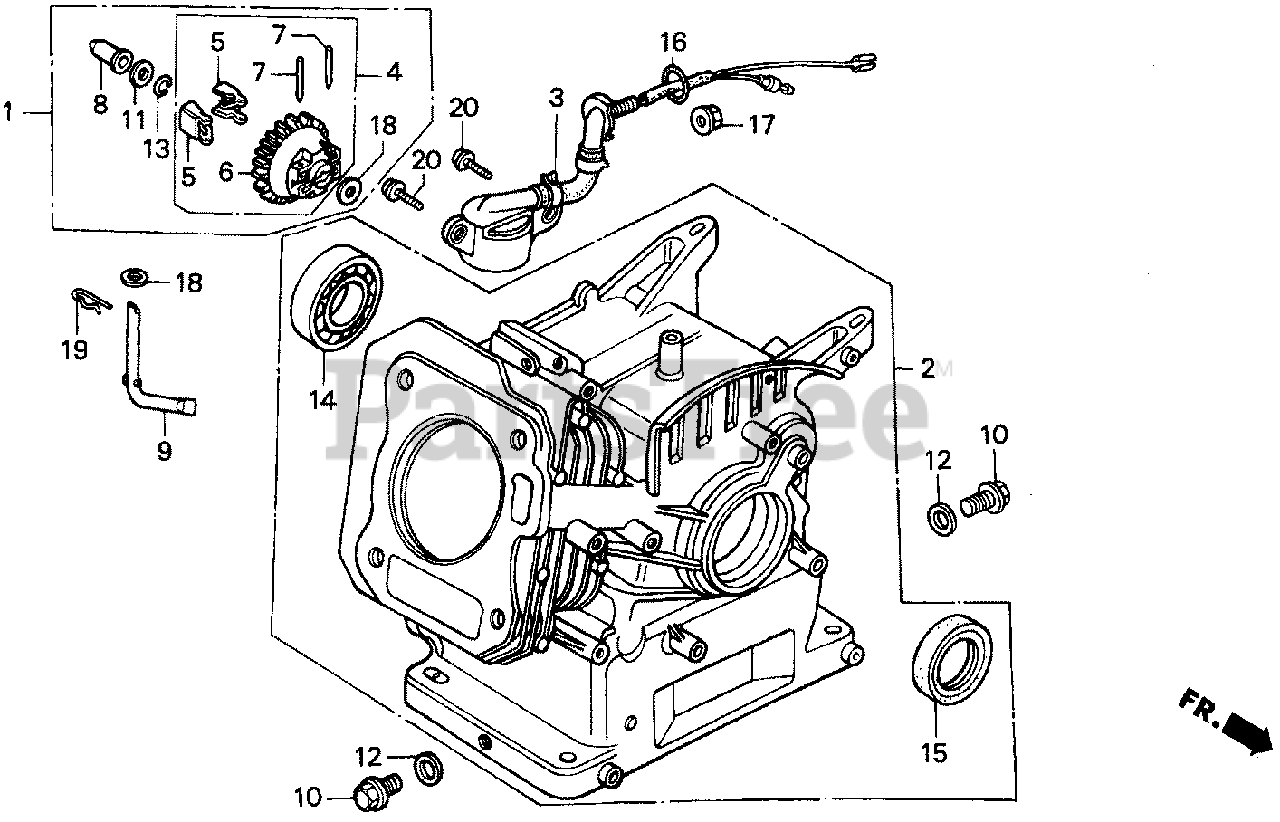

CYLINDER BARREL Parts Diagram

  • Title

2

Honda 12000-ZH8-010

CYLINDER ASSY., BARREL

Note: (Honda Code 5171913).

$

$

Currently unavailable

2

Honda 12000-ZH8-010

CYLINDER ASSY., BARREL

Note: Use up to Engine SN 4078965. (Honda Code 5171913).

$

$

Currently unavailable

2

Honda 12000-ZH8-405

CYLINDER ASSY. (010)

Note: Use from Engine SN 4078966. (Honda Code 6379135).

$

$

Currently unavailable

2

Honda 12000-ZH8-406

CYLINDER ASSY. (811)

Note: Use up to Engine SN 4067884. (Honda Code 6363667).

$

$

Currently unavailable

2

Honda 12000-ZH8-811

CYLINDER ASSY. (OIL ALERT)

Note: Use up to Engine SN 4067884. (Honda Code 5032719).

$

$

Currently unavailable

4

Honda 16510-ZE1-000

GOVERNOR ASSY.

Note: (Honda Code 2414225).

$17.99

$

In Stock, only 2 left!

0

5

Honda 16511-ZE1-000

WEIGHT, GOVERNOR

Note: (Honda Code 1427228).

$4.49

$

Usually ships in 3-6 days

0

6

Honda 16512-ZE1-000

HOLDER, GOVERNOR WEIGHT

Note: (Honda Code 1427236).

$25.99

$

In Stock, only 1 left!

0

8

Honda 16531-ZE1-000

SLIDER, GOVERNOR

Note: (Honda Code 1427251).

$3.49

$

In Stock, Qty 8

0

9

Honda 16541-ZE1-000

SHAFT, GOVERNOR ARM

Note: (Honda Code 1427277).

$13.99

$

Usually ships in 3-6 days

0

10

Honda 90131-ZE1-000

BOLT, DRAIN PLUG

Note: (Honda Code 1431246).

$3.49

$

In Stock, only 2 left!

0

11

Honda 90451-ZE1-000

WASHER, THRUST (6MM)

Note: (Honda Code 2413862).

$2.49

$

In Stock, only 2 left!

0

12

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM)

Note: (Honda Code 1436583).

$1.49

$

In Stock, Qty 20+

0

13

Honda 90602-ZE1-000

CLIP, GOVERNOR HOLDER

Note: (Honda Code 2456697).

$1.99

$

In Stock, only 3 left!

0

14

Honda 91001-ZF1-003

BEARING, RADIAL BALL (6205)

Note: (Honda Code 3684248).

$25.99

$

In Stock, only 3 left!

0

15

Honda 91202-883-005

OIL SEAL (25X41X6)
(Superseded to 91201-Z0T-801)

Note: (Honda Code 0636936).

$9.49

$

In Stock, Qty 15

0

18

Honda 94101-06800

WASHER, PLAIN (6MM)

Note: (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

19

Honda 94251-08000

PIN, LOCK (8MM)

Note: (Honda Code 0115527).

$1.99

$

In Stock, Qty 9

0
