GX160 K1 QA (GC02) - Honda Engine, Made in Japan (SN: GC02-2000001 - GC02-8669999) FUEL TANK Parts Diagram

Engine, Made in Japan

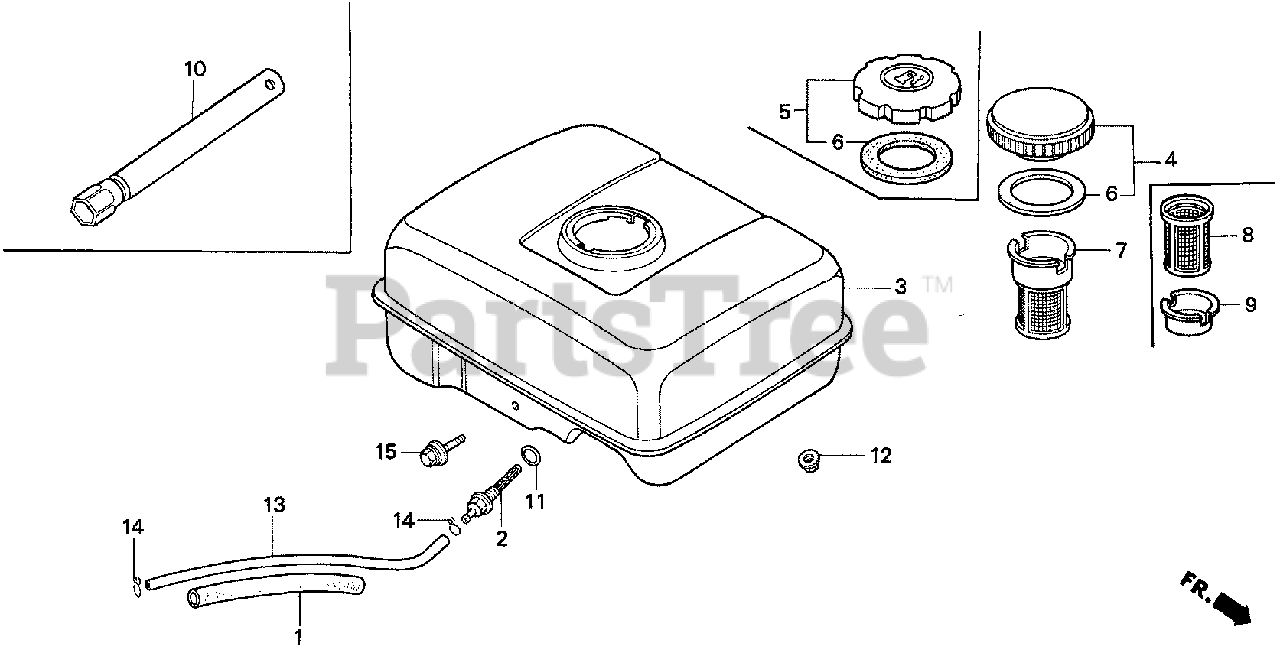

FUEL TANK Parts Diagram

  • Title

1

Honda 16854-ZH8-000

RUBBER, SUPPORTER (107MM)

Note: (Honda Code 3683646).

$4.99

$

In Stock, only 4 left!

0

2

Honda 16955-ZE1-000

JOINT, FUEL TANK
(Superseded to 16955-ZE1-010)

Note: (Honda Code 1427459).

$8.99

$

In Stock, Qty 20+

0

3

Honda 17510-ZE1-020ZA

TANK, FUEL *NH31* (MCKINLEY WHITE)
(Superseded to 17510-ZE1-030ZA)

Note: (Honda Code 3683661).

$176.99

$

Usually ships in 3-6 days

0

4

Honda 17620-ZE2-W00

CAP, FUEL FILLER

Note: Use up to Engine SN 3063877. (Honda Code 3682028).

$

$

Not available

5

Honda 17620-ZH7-023

CAP, FUEL FILLER
(Superseded to 17620-Z0T-305)

Note: Use from Engine SN 3063878. (Honda Code 5344817).

$

$

Not available

6

Honda 17631-ZH7-003

GASKET, FUEL FILLER CAP
(Superseded to 17631-329-003)

Note: Use from Engine SN 3063878. (Honda Code 4608725).

$

$

Not available

6

Honda 17631-329-003

GASKET, FUEL FILLER CAP
(Superseded to 17631-329-013)

Note: Use up to Engine SN 3063877. (Honda Code 2820587).

$

$

Not available

7

Honda 17672-ZE2-W00

FILTER, FUEL

Note: Use up to Engine SN 2468779. (Honda Code 3678703).

$

$

Currently unavailable

7

Honda 17672-ZE2-W01

FILTER, FUEL

Note: Use up to Engine SN 2468779. (Honda Code 4270864).

$12.99

$

In Stock, only 1 left!

0

7

Honda 17672-ZE2-W01

FILTER, FUEL

Note: Use from Engine SN 2827377. (Honda Code 4270864).

$12.99

$

In Stock, only 1 left!

0

8

Honda 17672-880-000

FILTER, FUEL

Note: Use from Engine SN 2468780 to 2827376. (Honda Code 0474759).

$13.99

$

Usually ships in 3-6 days

0

9

Honda 17673-893-000

HOLDER, FUEL FILTER

Note: Use from Engine SN 2468780 to 2827376. (Honda Code 0788109).

$14.99

$

In Stock, only 1 left!

0

10

Honda 89218-ZE1-000

WRENCH, SPARK PLUG

Note: (Honda Code 1431048).

$20.99

$

Usually ships in 3-6 days

0

11

Honda 91353-671-003

O-RING (13.5X1.5) (ARAI)

Note: (Honda Code 0949883).

$3.99

$

In Stock, Qty 20+

0

12

Honda 94050-06000

NUT, FLANGE (6MM)

Note: (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

13

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X140)

Note: (Honda Code 5137104).

$54.99

$

In Stock, only 4 left!

0

14

Honda 95002-02080

CLIP, TUBE (B8)

Note: (Honda Code 0250647).

$2.49

$

In Stock, only 4 left!

0

15

Honda 95700-06025-00

BOLT, FLANGE (6X25)

Note: Use up to Engine SN 2000037. (Honda Code 0484485).

$

$

Currently unavailable

15

Honda 95701-06025-00

BOLT, FLANGE (6X25)

Note: (Honda Code 2105831).

$2.49

$

In Stock, Qty 8

0
