GX160 K1 QA (GC02) - Honda Engine, Made in Japan (SN: GC02-2000001 - GC02-8669999) CARBURETOR Parts Diagram

Engine, Made in Japan

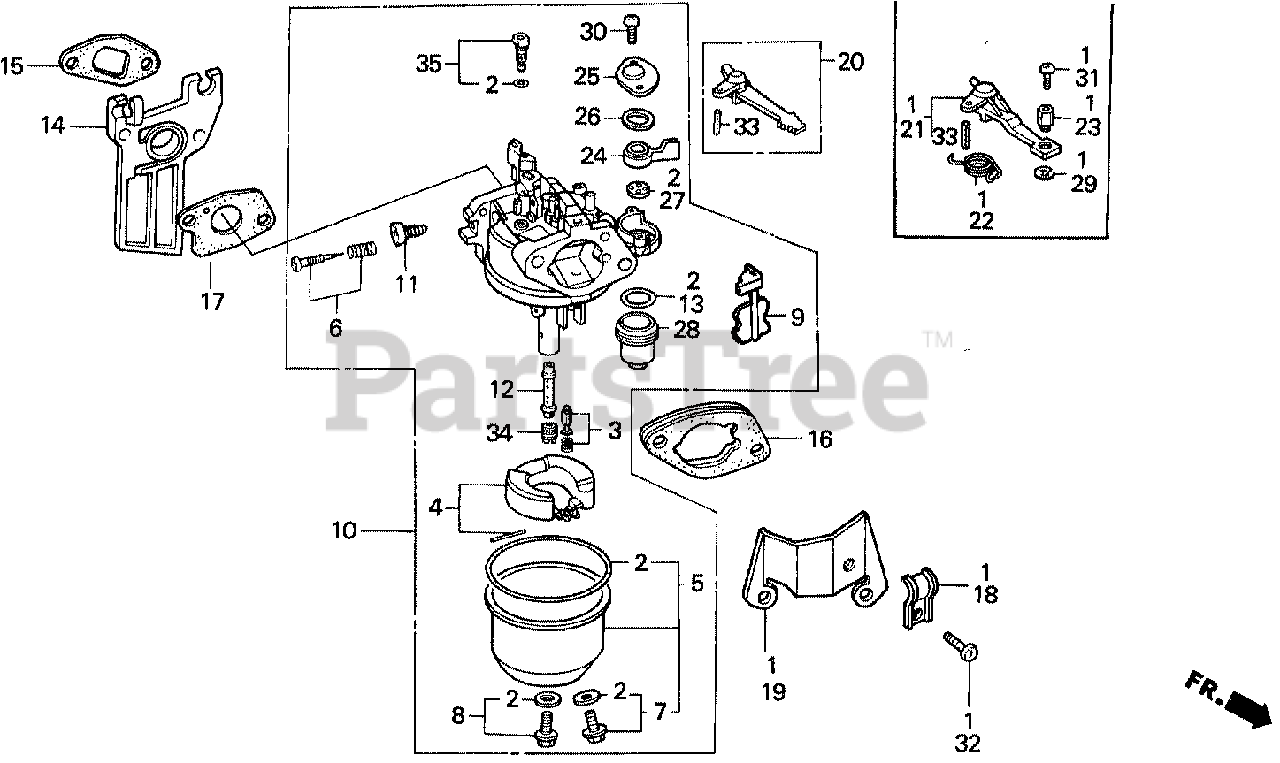

CARBURETOR Parts Diagram

  • Title

2

Honda 16010-ZE1-812

GASKET SET

Note: (Honda Code 3477171).

$20.99

$

In Stock, Qty 8

0

3

Honda 16011-ZE0-005

VALVE SET, FLOAT

Note: (Honda Code 1441476).

$30.99

$

In Stock, only 1 left!

0

4

Honda 16013-ZE0-005

FLOAT SET

Note: (Honda Code 1441492).

$31.99

$

In Stock, only 1 left!

0

5

Honda 16015-ZE0-831

CHAMBER SET, FLOAT

Note: Use from Engine SN BE06J C. (Honda Code 2455608).

$38.99

$

In Stock, only 2 left!

0

5

Honda 16015-ZE1-811

CHAMBER SET, FLOAT
(Superseded to 16015-ZE0-831)

Note: Use up to Engine SN BE06J B. (Honda Code 2464287).

$38.99

$

In Stock, only 2 left!

0

6

Honda 16016-ZE0-005

SCREW SET, PILOT

Note: Use up to Engine SN BE65C A. (Honda Code 1441500).

$15.99

$

In Stock, only 1 left!

0

6

Honda 16016-ZH7-W01

SCREW SET

Note: Use from Engine SN BE65C B. (Honda Code 4219879).

$21.99

$

In Stock, only 1 left!

0

7

Honda 16024-ZE1-811

SCREW SET, DRAIN

Note: (Honda Code 1672187).

$10.99

$

In Stock, only 3 left!

0

8

Honda 16028-ZE0-005

SCREW SET B
(Superseded to 16028-ZK7-S91)

Note: (Honda Code 1441518).

$13.99

$

In Stock, only 1 left!

0

9

Honda 16044-ZE0-005

CHOKE SET

Note: Use from Engine SN BE06J B. (Honda Code 1441526).

$39.99

$

Usually ships in 3-6 days

0

10

Honda 16100-ZH8-W61

CARBURETOR ASSY. (BE65C B)

Note: Use from Engine SN 6276050. (Honda Code 5266705).

$134.99

$

In Stock, only 1 left!

0

10

Honda 16100-ZH8-820

CARBURETOR ASSY.

Note: Use up to Engine SN 2895090. (Honda Code 3683513).

$

$

Currently unavailable

10

Honda 16100-ZH8-822

CARBURETOR ASSY.
(Superseded to 16100-ZH8-W51)

Note: Use up to Engine SN 4012551. (Honda Code 5183728).

$133.99

$

In Stock, only 3 left!

0

10

Honda 16100-ZH8-822

CARBURETOR ASSY.
(Superseded to 16100-ZH8-W51)

Note: Use from Engine SN 4012552 to 6276049. (Honda Code 5183728).

$133.99

$

In Stock, only 3 left!

0

11

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

Note: (Honda Code 1441559).

$17.99

$

In Stock, only 1 left!

0

12

Honda 16166-ZH8-W50

NOZZLE, MAIN

Note: Use from Engine SN BE06J B to BE65C A. (Honda Code 4229563).

$25.99

$

Usually ships in 3-6 days

0

12

Honda 16166-ZH8-W60

NOZZLE, MAIN

Note: Use from Engine SN BE65C B. (Honda Code 4313276).

$

$

Not available

12

Honda 16166-ZH8-810

NOZZLE, MAIN

Note: Use up to Engine SN BE06J A. (Honda Code 3683539).

$26.99

$

Usually ships in 3-6 days

0

13

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

Note: (Honda Code 0005652).

$7.49

$

In Stock, only 2 left!

0

14

Honda 16211-ZE1-000

INSULATOR, CARBURETOR

Note: (Honda Code 1427137).

$25.99

$

In Stock, only 1 left!

0

15

Honda 16212-ZH8-800

GASKET, INSULATOR

Note: (Honda Code 3683547).

$3.49

$

In Stock, Qty 20+

0

16

Honda 16220-ZE1-020

SPACER, CARBURETOR

Note: (Honda Code 2534055).

$8.49

$

In Stock, Qty 20+

0

17

Honda 16221-ZH8-801

GASKET, CARBURETOR

Note: (Honda Code 4725289).

$2.49

$

In Stock, Qty 20+

0

20

Honda 16610-ZE1-000

LEVER, CHOKE (STD)

Note: (Honda Code 1440114).

$11.99

$

In Stock, Qty 8

0

24

Honda 16953-ZE1-812

LEVER, VALVE

Note: (Honda Code 5140876).

$10.99

$

In Stock, Qty 10

0

25

Honda 16954-ZE1-812

PLATE, LEVER SETTING

Note: (Honda Code 5148135).

$4.49

$

In Stock, only 1 left!

0

26

Honda 16956-ZE1-811

SPRING, VALVE LEVER

Note: (Honda Code 1807809).

$4.49

$

Usually ships in 3-6 days

0

27

Honda 16957-ZE1-812

GASKET, VALVE

Note: (Honda Code 3440708).

$4.49

$

In Stock, Qty 20+

0

28

Honda 16967-ZE0-811

CUP, FUEL STRAINER

Note: (Honda Code 1441583).

$23.99

$

In Stock, only 3 left!

0

30

Honda 93500-03006-0H

SCREW, PAN (3X6)

Note: Use from Engine SN BE06J C. (Honda Code 0561654).

$1.49

$

In Stock, only 3 left!

0

30

Honda 93500-03008-0G

SCREW, PAN (3X8)

Note: Use up to Engine SN BE06J B. (Honda Code 0420505).

$

$

Not available

33

Honda 94305-20122

PIN, SPRING (2X12)

Note: (Honda Code 1441591).

$2.49

$

In Stock, only 4 left!

0

34

Honda 99101-ZF5-0680

JET, MAIN (#68)

Note: (Optional). (Honda Code 3684271).

$

$

Currently unavailable

34

Honda 99101-ZF5-0700

JET, MAIN (#70)

Note: (Optional). (Honda Code 3684289).

$

$

Currently unavailable

34

Honda 99101-ZF5-0720

JET, MAIN (#72)
(Superseded to 99101-ZH8-0720)

Note: Use up to Engine SN BE06J A. (Honda Code 3684297).

$8.49

$

In Stock, only 1 left!

0

34

Honda 99101-ZH8-0700

JET, MAIN (#70)
(Superseded to 99101-ZK7-0700)

Note: Use from Engine SN 4811852. (Honda Code 5427505).

$10.99

$

In Stock, Qty 9

0

35

Honda 99204-ZE0-0350

JET SET, PILOT (#35)

Note: Use from Engine SN BE06J B. (Honda Code 1441609).

$23.99

$

In Stock, only 2 left!

0

35

Honda 99204-ZE0-0380

JET SET, PILOT (#38)

Note: Use up to Engine SN BE06J A. (Honda Code 3353075).

$23.99

$

In Stock, only 2 left!

0
