GX160 K1 Q1/A (GCAAK) - Honda Engine, Made in Japan (SN: GCAAK-1000001 - GCAAK-9999999) CONTROL BOX (2) Parts Diagram

Engine, Made in Japan

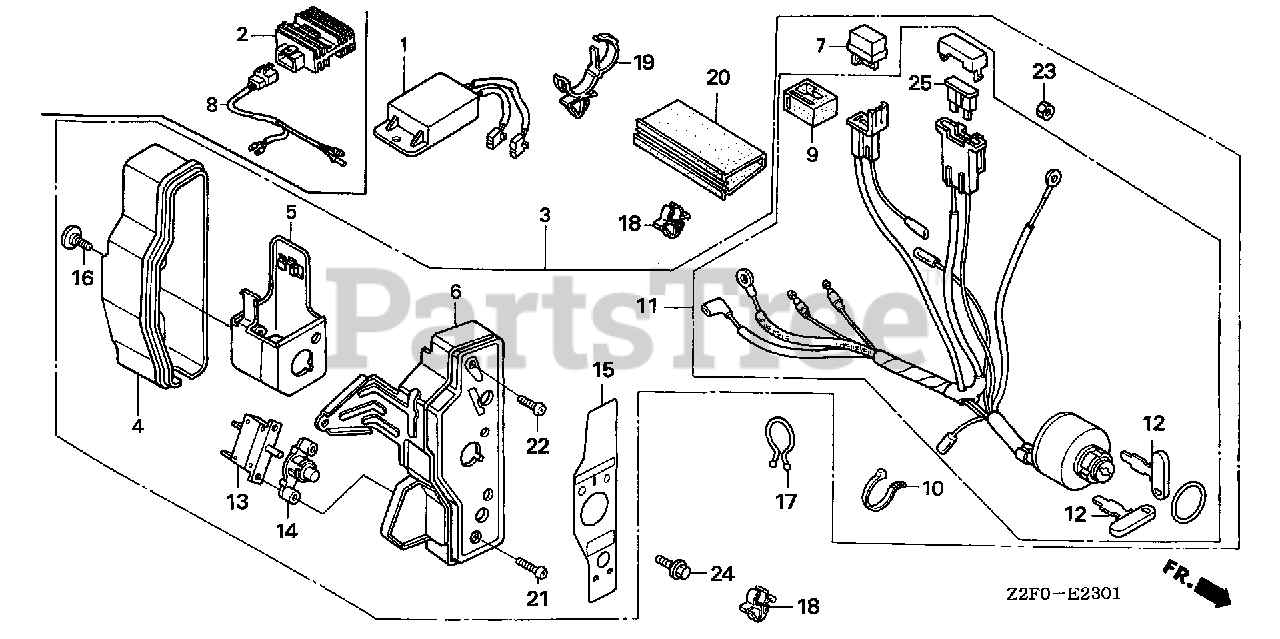

CONTROL BOX (2) Parts Diagram

  • Title

1

Honda 31600-KE1-010

RECTIFIER, REGULATOR

Note: (Optional).

$124.99

$

Usually ships in 3-6 days

0

2

Honda 31600-ZE2-861

RECTIFIER ASSY., REGULATOR (10A)

Note: (Optional).

$221.99

$

Usually ships in 3-6 days

0

3

Honda 31610-ZE1-013ZA

BOX ASSY., CONTROL *NH1* (INTERNAL) (BLACK)

Note: (Optional).

$252.99

$

Usually ships in 3-6 days

0

3

Honda 31610-ZE1-013ZD

BOX ASSY., CONTROL *R280* (INTERNAL) (POWER RED)

Note: (Optional).

$184.99

$

Usually ships in 3-6 days

0

3

Honda 31610-ZE1-812ZA

BOX ASSY., CONTROL *NH1* (EXTERNAL) (BLACK)

Note: (Optional).

$244.99

$

Usually ships in 3-6 days

0

3

Honda 31610-ZE1-812ZD

BOX ASSY., CONTROL *R280* (EXTERNAL) (POWER RED)

Note: (Optional).

$184.99

$

Usually ships in 3-6 days

0

4

Honda 31612-ZE2-003

CASE, CONTROL

Note: (Optional).

$21.99

$

In Stock, only 1 left!

0

5

Honda 31614-ZE2-003

BRACKET, CASE MOUNTING

Note: (Optional).

$17.99

$

Usually ships in 3-6 days

0

6

Honda 31615-ZE1-003ZA

PANEL, CONTROL *NH1* (BLACK)

Note: (Optional).

$69.99

$

Usually ships in 3-6 days

0

6

Honda 31615-ZE1-003ZG

PANEL, CONTROL *R280* (POWER RED)

Note: (Optional).

$59.99

$

Usually ships in 3-6 days

0

7

Honda 31700-124-008

SEE PART DETAILS - PRI; RECTIFIER ASSY., SILICON (SHINDENGEN)

Note: (Optional).

$39.99

$

In Stock, only 1 left!

0

8

Honda 32110-ZH8-W00

SUB-WIRE HARNESS ASSY.

Note: (Optional).

$41.99

$

Usually ships in 3-6 days

0

9

Honda 32127-738-700

SUSPENSION, CONNECTOR

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0

10

Honda 32902-892-003

BAND

Note: (Optional).

$4.99

$

In Stock, only 2 left!

0

11

Honda 35100-ZE1-812

SWITCH ASSY., COMBINATION

Note: (Optional).

$151.99

$

Usually ships in 3-6 days

0

12

Honda 35111-880-013

KEY (HONDALOCK)

Note: (Optional).

$11.99

$

In Stock, Qty 5

0

13

Honda 38240-VA3-900

PROTECTOR, CIRCUIT (1.0A)

Note: (Optional).

$33.99

$

Usually ships in 3-6 days

0

14

Honda 38250-ZA8-701

LENS ASSY., PROTECTOR

Note: (Optional).

$19.99

$

Usually ships in 3-6 days

0

15

Honda 87529-ZE2-020

PANEL, CONTROL BOX (INTERNAL)

Note: (Optional).

$17.99

$

Usually ships in 3-6 days

0

16

Honda 90380-MA6-010

SCREW, SPECIAL (6X12)

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

17

Honda 90630-751-000

CLIP, PURSE LOCK

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

18

Honda 90682-ZE1-000

CLIP, CORD

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

19

Honda 90690-SA0-003

STRAP, WIRE HARNESS (25MM) (BLACK)

Note: (Optional).

$9.99

$

Usually ships in 3-6 days

0

20

Honda 91406-ZE2-003

TUBE, FASTENER (30MM)

Note: (Optional).

$6.99

$

Usually ships in 3-6 days

0

21

Honda 93500-03012-0H

SCREW, PAN (3X12)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

22

Honda 93500-04012-0H

SCREW, PAN (4X12)

Note: (Optional).

$1.49

$

In Stock, Qty 10

0

23

Honda 94001-04390-0S

NUT, HEX. (4MM) (SOURCE: VINTAGE PARTS INC.)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

24

Honda 95701-06010-00

BOLT, FLANGE (6X10)

Note: (Optional).

$1.99

$

In Stock, Qty 13

0

25

Honda 98200-30500

FUSE, BLADE (5A)

Note: (Optional).

$1.99

$

In Stock, Qty 5

0
