GX160 K1 Q1/A (GCAAK) - Honda Engine, Made in Japan (SN: GCAAK-1000001 - GCAAK-9999999) CARBURETOR (1) Parts Diagram

Engine, Made in Japan

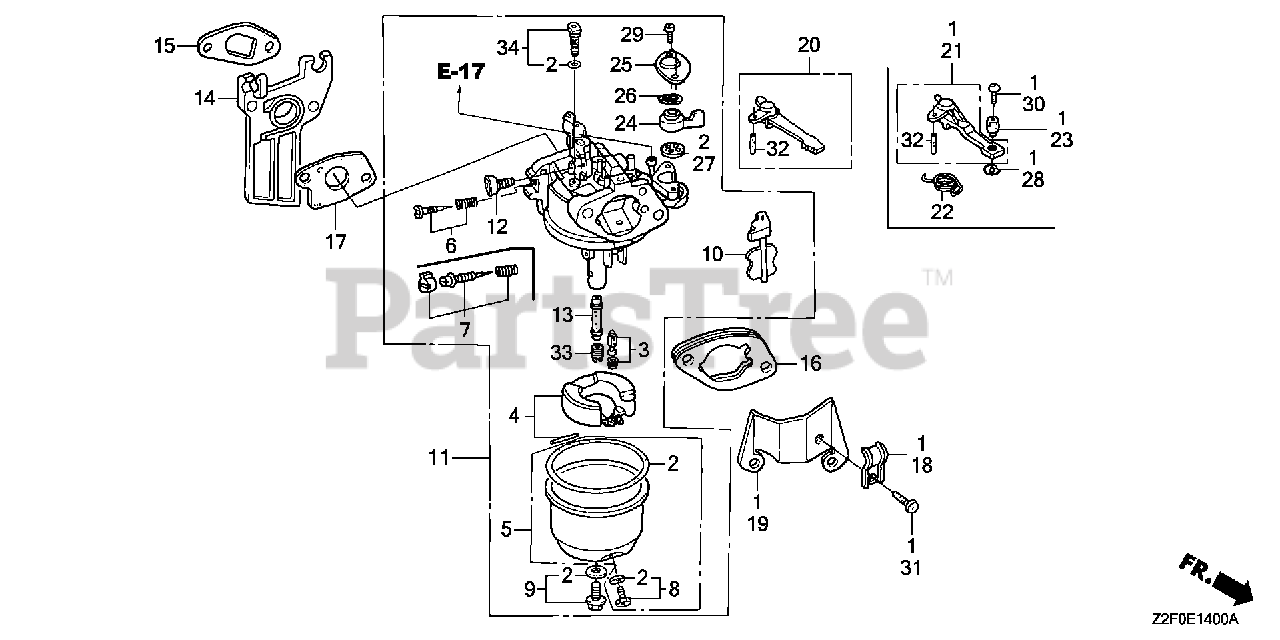

CARBURETOR (1) Parts Diagram

  • Title

1

Honda 06164-ZE1-000

CHOKE KIT, REMOTE CONTROL

Note: (Optional).

$30.99

$

Usually ships in 3-6 days

0

2

Honda 16010-ZE0-025

SEE PART DETAILS - PRI; GASKET SET

Note: (Optional).

$19.99

$

In Stock, Qty 6

0

3

Honda 16011-ZE0-005

VALVE SET, FLOAT (SEAT NOT INCLUDED)

Note: (Optional).

$28.99

$

In Stock, only 2 left!

0

4

Honda 16013-ZE0-005

FLOAT SET

Note: (Optional).

$29.99

$

In Stock, only 1 left!

0

5

Honda 16015-ZE0-831

CHAMBER SET, FLOAT

Note: (Optional).

$37.99

$

In Stock, only 2 left!

0

6

Honda 16016-ZE0-005

SCREW SET, PILOT

Note: (Optional).

$14.99

$

In Stock, only 1 left!

0

8

Honda 16024-ZE1-811

SCREW SET, DRAIN

Note: (Optional).

$10.99

$

In Stock, only 3 left!

0

9

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

Note: (Optional).

$13.99

$

In Stock, only 3 left!

0

9

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

Note: (Optional).

$13.99

$

In Stock, only 3 left!

0

10

Honda 16044-ZE0-005

CHOKE SET

Note: (Optional).

$37.99

$

Usually ships in 3-6 days

0

11

Honda 16100-ZH8-W41

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE66D B)

Note: (Optional).

$99.99

$

Usually ships in 3-6 days

0

11

Honda 16100-ZH8-812

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE06H C)
(Superseded to 16100-ZH8-W41)

Note: (Optional).

$99.99

$

Usually ships in 3-6 days

0

12

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

Note: (Optional).

$17.99

$

In Stock, only 1 left!

0

13

Honda 16166-ZH8-W50

NOZZLE, MAIN

Note: (Optional).

$24.99

$

Usually ships in 3-6 days

0

14

Honda 16211-ZE1-000

INSULATOR, CARBURETOR

$23.99

$

In Stock, only 3 left!

0

15

Honda 16212-ZH8-800

GASKET, INSULATOR

Note: (Optional).

$3.49

$

In Stock, Qty 20+

0

16

Honda 16220-ZE1-020

SEE PART DETAILS - PRI; SPACER, CARBURETOR

$7.99

$

In Stock, Qty 20+

0

17

Honda 16221-ZH8-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR

Note: (Optional).

$2.49

$

In Stock, Qty 20+

0

18

Honda 16582-883-300

HOLDER, CONTROL CABLE

Note: (Optional).

$4.49

$

In Stock, only 1 left!

0

19

Honda 16598-ZE1-000

STAY, CHOKE CONTROL

Note: (Optional).

$13.99

$

Usually ships in 3-6 days

0

20

Honda 16610-ZE1-000

LEVER, CHOKE (STD)

Note: (Optional).

$10.99

$

In Stock, Qty 10

0

21

Honda 16610-ZE1-810

LEVER, CHOKE (REMOTE)

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

22

Honda 16615-ZE1-010

SPRING, RETURN

Note: (Optional).

$5.99

$

Usually ships in 3-6 days

0

23

Honda 16617-890-010

HOLDER, CABLE

Note: (Optional).

$8.49

$

In Stock, only 1 left!

0

24

Honda 16953-ZE1-812

LEVER, PETCOCK

Note: (Optional).

$10.99

$

In Stock, Qty 10

0

25

Honda 16954-ZE1-812

PLATE, LEVER SETTING

Note: (Optional).

$4.49

$

In Stock, only 1 left!

0

26

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER

Note: (Optional).

$3.99

$

In Stock, only 1 left!

0

27

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK

Note: (Optional).

$4.49

$

In Stock, Qty 20+

0

28

Honda 90605-230-000

CIRCLIP (5MM)

Note: (Optional).

$3.99

$

In Stock, only 3 left!

0

29

Honda 93500-03006-0H

SCREW, PAN (3X6)

Note: (Optional).

$1.49

$

In Stock, Qty 5

0

30

Honda 93500-04008-0A

SCREW, PAN (4X8)

Note: (Optional).

$1.49

$

In Stock, only 4 left!

0

31

Honda 93500-05008-0A

SCREW, PAN (5X8)

Note: (Optional).

$1.49

$

In Stock, Qty 8

0

32

Honda 94305-20122

PIN, SPRING (2X12)

Note: (Optional).

$2.49

$

In Stock, Qty 5

0

33

Honda 99101-ZK7-0650

JET, MAIN (#65)

Note: (Optional).

$7.49

$

Usually ships in 3-6 days

0

33

Honda 99101-ZK7-0680

SEE PART DETAILS - PRI; JET, MAIN (#68)

Note: (Optional).

$8.49

$

Usually ships in 3-6 days

0

33

Honda 99101-ZK7-0700

JET, MAIN (#70)

Note: (Optional).

$9.99

$

In Stock, Qty 9

0

34

Honda 99204-ZE0-0350

JET SET, PILOT (#35)

Note: (Optional).

$22.99

$

In Stock, only 3 left!

0
