GX160 K1 LX (GC02) - Honda Engine, Made in Japan (SN: GC02-2000001 - GC02-8669999) AIR CLEANER (1) Parts Diagram

Engine, Made in Japan

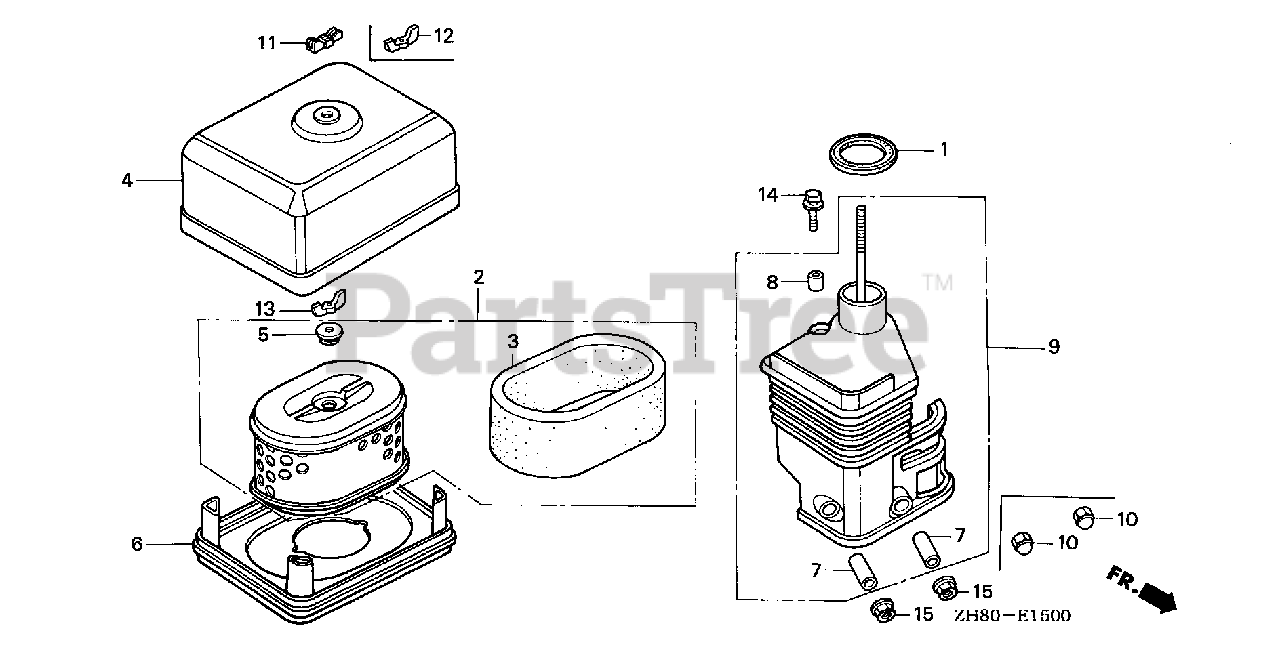

AIR CLEANER (1) Parts Diagram

  • Title

1

Honda 16271-ZE1-000

GASKET, ELBOW

$4.99

$

In Stock, Qty 9

0

2

Honda 17210-ZE1-822

ELEMENT, AIR CLEANER (DUAL)
(Superseded to 17210-Z4M-821)

$9.99

$

In Stock, Qty 20+

0

3

Honda 17218-ZE1-507

SEE PART DETAILS - PRI; FILTER (OUTER)
(Superseded to 17218-ZE1-821)

$11.99

$

In Stock, only 1 left!

0

3

Honda 17218-ZE1-821

SEE PART DETAILS - SUP; FILTER (OUTER)

$11.99

$

In Stock, only 1 left!

0

4

Honda 17230-ZE1-820

COVER, AIR CLEANER (DUAL)

$35.99

$

In Stock, only 2 left!

0

5

Honda 17232-891-000

GROMMET, AIR CLEANER

$5.99

$

In Stock, Qty 15

0

7

Honda 17238-ZE7-010

COLLAR, AIR CLEANER

$4.99

$

Usually ships in 3-6 days

0

8

Honda 17239-ZE1-000

COLLAR B, AIR CLEANER

$4.99

$

In Stock, Qty 7

0

9

Honda 17410-ZE1-020

SEE PART DETAILS - SUP; ELBOW, AIR CLEANER
(Superseded to 17410-ZE1-030)

$40.99

$

In Stock, only 2 left!

0

10

Honda 90201-415-000

NUT, CAP (6MM)

Note: Use up to Engine SN 2708121.

$2.99

$

In Stock, Qty 9

0

11

Honda 90203-PB2-000

NUT, AIR CLEANER COVER (DACRO COATING)

Note: Use up to Engine SN 2468252.

$10.99

$

In Stock, only 3 left!

0

11

Honda 90203-ZA0-800

WINGNUT (6MM) (BLACK)

Note: Use from Engine SN 2468253 to 2836833.

$4.49

$

In Stock, only 2 left!

0

12

Honda 90325-044-000

NUT, TOOL BOX SETTING

Note: Use from Engine SN 2836834.

$5.49

$

In Stock, Qty 20+

0

13

Honda 90325-044-000

NUT, TOOL BOX SETTING

$5.49

$

In Stock, Qty 20+

0

14

Honda 93404-06020-08

SEE PART DETAILS - PRI; BOLT-WASHER (6X20)

$2.49

$

In Stock, only 2 left!

0

14

Honda 93494-06020-08

SEE PART DETAILS - SUP; BOLT-WASHER (6X20)

$

$

Not available

15

Honda 94050-06000

NUT, FLANGE (6MM)

Note: Use from Engine SN 2708122.

$0.99

$

In Stock, Qty 20+

0
