GX160 K1 HX2/A (GC02) - Honda Engine, Made in Japan (SN: GC02-8670001 - GC02-9099999) REDUCTION (3) Parts Diagram

Engine, Made in Japan

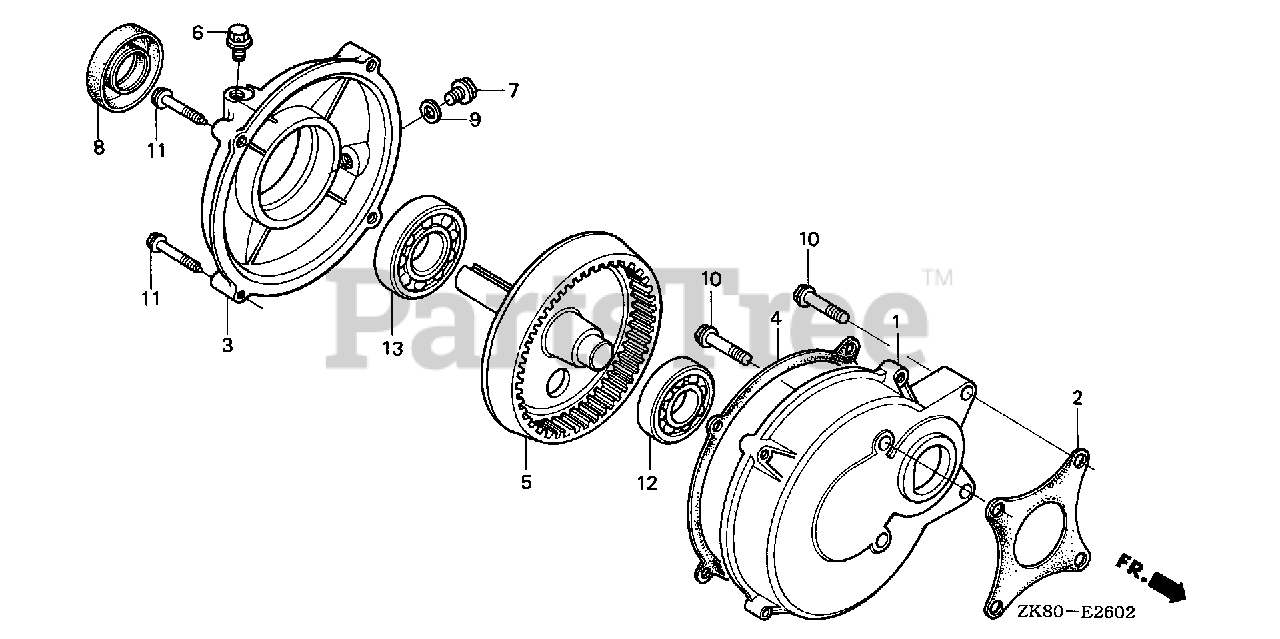

REDUCTION (3) Parts Diagram

  • Title

1

Honda 21521-883-741

CASE, REDUCTION

$144.99

$

Usually ships in 3-6 days

0

2

Honda 21591-ZH8-740

GASKET, REDUCTION CASE

$6.99

$

In Stock, Qty 14

0

3

Honda 21621-883-741

COVER, REDUCTION
(Superseded to 21621-883-742)

$34.99

$

Usually ships in 3-6 days

0

4

Honda 21692-ZH8-800

GASKET, REDUCTION COVER

$10.99

$

In Stock, Qty 10

0

5

Honda 23710-883-740

SHAFT, P.T.O. (86T)

$319.99

$

Usually ships in 3-6 days

0

6

Honda 90002-883-740

BOLT, BREATHING

$5.99

$

Usually ships in 3-6 days

0

7

Honda 90131-883-000

SEE PART DETAILS - SUP; BOLT, DRAIN PLUG (12X15)

$

$

Not available

7

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (12X15)

$4.99

$

In Stock, only 2 left!

0

8

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6)

$8.99

$

In Stock, Qty 5

0

9

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, only 4 left!

0

10

Honda 95701-08032-08

BOLT, FLANGE (8X32)

$2.99

$

Usually ships in 3-6 days

0

11

Honda 95701-08035-00

BOLT, FLANGE (8X35)

$2.99

$

In Stock, only 3 left!

0

12

Honda 96100-62040-00

BEARING, RADIAL BALL (6204)

$16.99

$

In Stock, only 2 left!

0

13

Honda 96100-63050-00

BEARING, RADIAL BALL (6305)

$20.99

$

Usually ships in 3-6 days

0
