GX160 K1 AR (GC02) - Honda Engine, Made in Japan (SN: GC02-2000001 - GC02-8669999) CRANKCASE COVER (2) Parts Diagram

Engine, Made in Japan

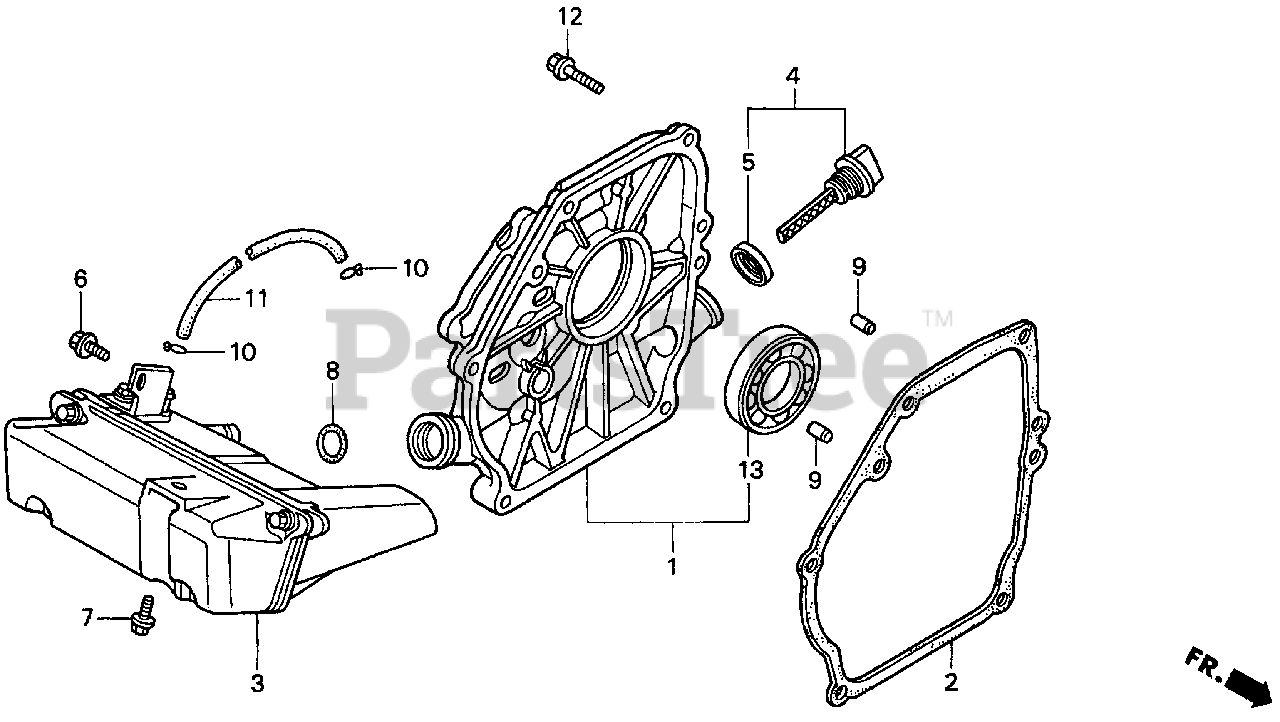

CRANKCASE COVER (2) Parts Diagram

  • Title

1

Honda 11300-ZK8-V00

COVER ASSY., CRANKCASE

Note: (Honda Code 5337951).

$212.99

$

Usually ships in 3-6 days

0

2

Honda 11381-ZK8-V00

GASKET, CASE COVER

Note: (Honda Code 5318597).

$20.99

$

Usually ships in 3-6 days

0

3

Honda 15500-ZK8-V00

TANK ASSY., OIL

Note: (Honda Code 5338009).

$124.99

$

Usually ships in 3-6 days

0

4

Honda 15600-ZE1-003

CAP ASSY., OIL FILLER
(Superseded to 15600-Z0T-810)

Note: (Honda Code 4500146).

$1.49

$

In Stock, Qty 7

0

5

Honda 15625-ZE1-003

GASKET, OIL FILLER CAP

Note: (Honda Code 4497947).

$3.49

$

In Stock, only 2 left!

0

6

Honda 90014-952-000

BOLT, FLANGE (6X14)

Note: (Honda Code 0803619).

$2.99

$

In Stock, only 3 left!

0

7

Honda 90029-888-000

BOLT, FLANGE (6X16)

Note: (Honda Code 0747733).

$2.99

$

Usually ships in 3-6 days

0

8

Honda 91304-MJ0-003

O-RING (15.8X2.4) (SHOWA)
(Superseded to 91303-800-000)

Note: (Honda Code 1762210).

$2.99

$

In Stock, only 1 left!

0

9

Honda 94303-08140

PIN C, DOWEL (8X14)

Note: (Honda Code 0256800).

$2.99

$

Usually ships in 3-6 days

0

10

Honda 95002-02070

CLIP, TUBE (B7)

Note: (Honda Code 0250639).

$2.49

$

In Stock, Qty 5

0

11

Honda 95005-35008-10M

BULK HOSE, VACUUM (3.5X8000) (3.5X130)

Note: (Honda Code 2325058).

$158.99

$

Usually ships in 3-6 days

0

12

Honda 95701-08032-00

BOLT, FLANGE (8X32)

Note: (Honda Code 2751725).

$1.99

$

In Stock, Qty 5

0

13

Honda 96100-62050-00

BEARING, RADIAL BALL (6205)

Note: (Honda Code 0636977).

$24.99

$

In Stock, only 3 left!

0
