GX160 H1 QX2 (GCAAH) - Honda Engine, Made in China (SN: GCAAH-1000001 - GCAAH-9999999) FUEL TANK Parts Diagram

Engine, Made in China

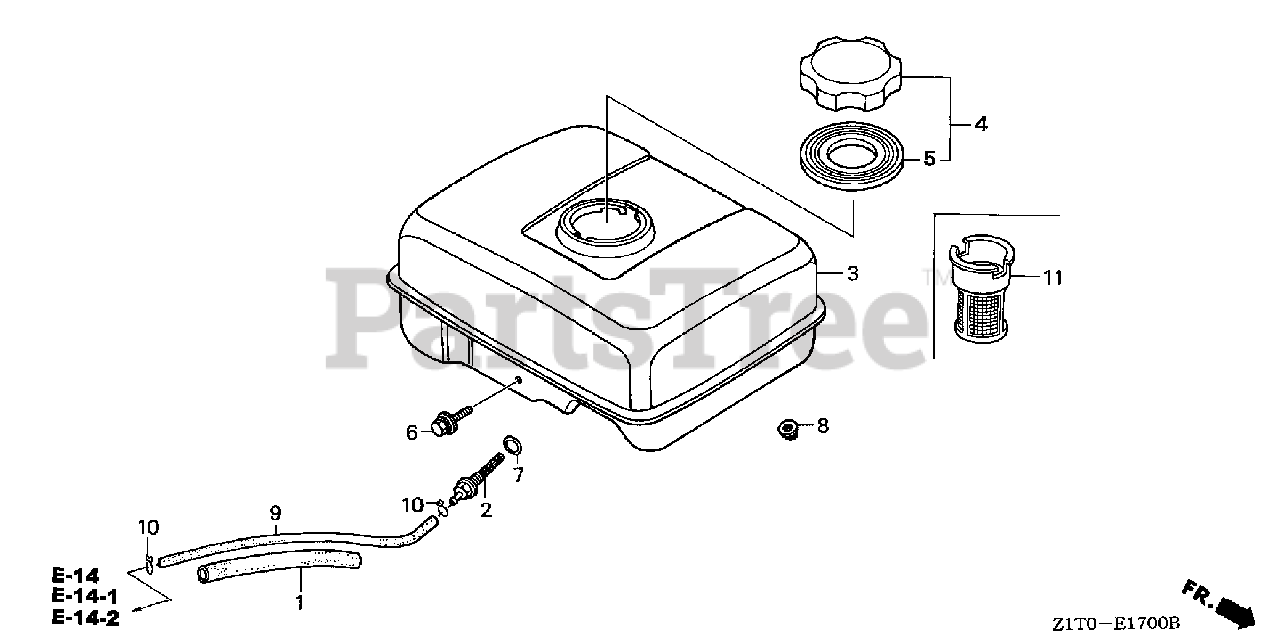

FUEL TANK Parts Diagram

  • Title

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM)

$4.99

$

In Stock, only 4 left!

0

2

Honda 16955-Z1T-000

SEE PART DETAILS - SUP; JOINT, FUEL TANK
(Superseded to 16955-Z1T-010)

$8.99

$

In Stock, only 1 left!

0

3

Honda 17510-ZE1-020ZA

SEE PART DETAILS - SUP; TANK, FUEL *NH31* (MCKINLEY WHITE)
(Superseded to 17510-ZE1-030ZA)

$176.99

$

Usually ships in 3-6 days

0

3

Honda 17510-ZE1-030ZA

SEE PART DETAILS - PRI; TANK, FUEL *NH31* (MCKINLEY WHITE)

$176.99

$

Usually ships in 3-6 days

0

3

Honda 17510-ZE1-030ZF

SEE PART DETAILS - PRI; TANK, FUEL *NH1* (BLACK)

$176.99

$

In Stock, only 1 left!

0

4

Honda 17620-Z0T-305

SEE PART DETAILS - PRI; CAP, FUEL FILLER (CHROME PLATED)

Note: (Optional).

$

$

Not available

4

Honda 17620-Z1T-800

CAP, FUEL FILLER (CHROME PLATED)(TOUYOUSYA)
(Superseded to 17620-Z1T-801)

$20.99

$

In Stock, only 2 left!

0

5

Honda 17631-Z0T-812

GASKET, FUEL FILLER CAP (39X62X3) (TOUYOUSYA)
(Superseded to 17631-Z0T-813)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

5

Honda 17631-Z1T-800

GASKET, FUEL FILLER CAP (39X62X3) (TOUYOUSYA)

$

$

Not available

6

Honda 90004-ZH7-003

BOLT, FLANGE (6X29)

$1.49

$

In Stock, Qty 7

0

7

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (14MM) (ARAI)

$3.99

$

In Stock, Qty 20+

0

7

Honda 91353-671-004

SEE PART DETAILS - SUP; O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$3.99

$

In Stock, Qty 20+

0

8

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

9

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X140)

$54.99

$

In Stock, only 4 left!

0

10

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, only 4 left!

0
