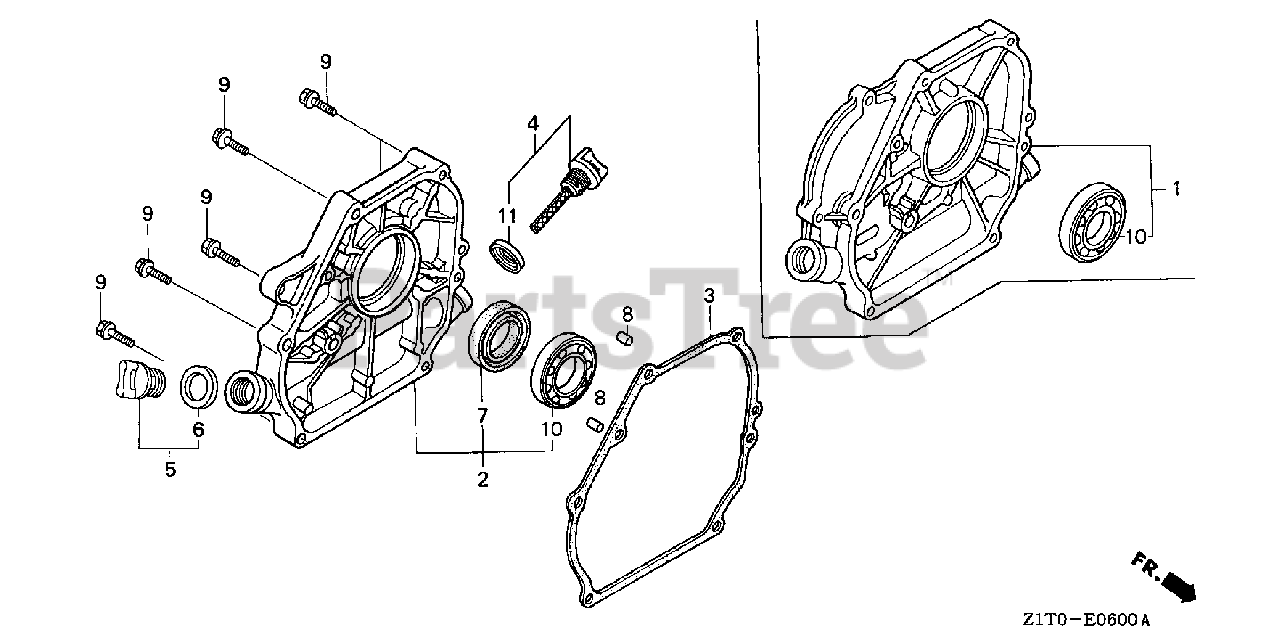

GX160 H1 QX2 (GCAAH) - Honda Engine, Made in China (SN: GCAAH-1000001 - GCAAH-9999999) CRANKCASE COVER Parts Diagram
Engine, Made in China
CRANKCASE COVER Parts Diagram
Honda 11300-Z1T-640
COVER ASSY., CRANKCASE
$
$
Not available
Honda 11381-ZH8-801
SEE PART DETAILS - PRI; GASKET, CASE COVER (NON-ASBESTOS)
$7.99
$
In Stock, Qty 20+
Honda 15600-ZE1-003
SEE PART DETAILS - PRI; CAP ASSY., OIL FILLER (GRAY)
(Superseded to 15600-Z0T-810)
$1.49
$
In Stock, Qty 7
Honda 15600-ZG4-003
CAP ASSY., OIL FILLER
$6.99
$
In Stock, only 1 left!
Honda 15625-Z1T-000
GASKET, OIL FILLER CAP
$3.99
$
Usually ships in 3-6 days
Honda 91202-Z1T-003
OIL SEAL (25X41X6)
$10.99
$
In Stock, only 4 left!
Honda 94301-08140
PIN, DOWEL (8X14)
$2.99
$
In Stock, Qty 8
Honda 95701-08032-00
BOLT, FLANGE (8X32)
$1.99
$
In Stock, Qty 5
Honda 96100-62050-00
SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205)
$25.99
$
In Stock, only 1 left!
Honda 15625-Z1T-000
GASKET, OIL FILLER CAP
$3.99
$
Usually ships in 3-6 days
