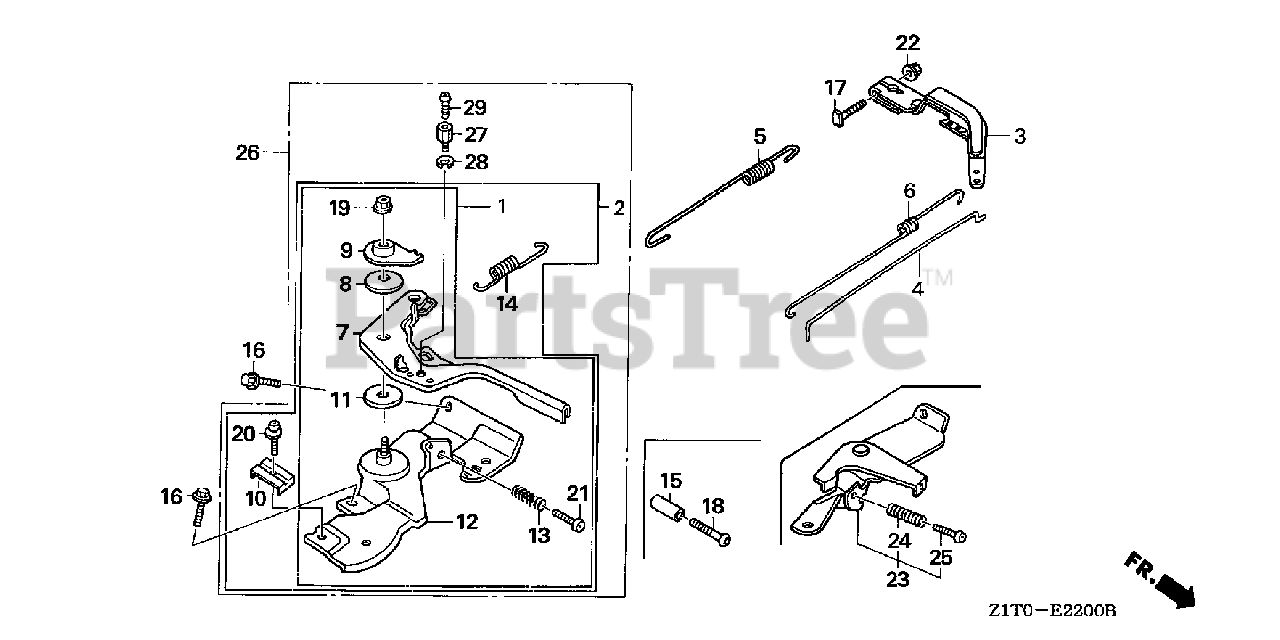

GX160 H1 QX2 (GCAAH) - Honda Engine, Made in China (SN: GCAAH-1000001 - GCAAH-9999999) CONTROL Parts Diagram

Engine, Made in China

CONTROL Parts Diagram

  • Title

2

Honda 16500-Z1T-600

CONTROL ASSY. (REMOTE)

$45.99

$

Usually ships in 3-6 days

0

3

Honda 16551-ZE0-010

SEE PART DETAILS - PRI; ARM, GOVERNOR

$15.99

$

Usually ships in 3-6 days

0

4

Honda 16555-ZE1-000

ROD, GOVERNOR

$4.99

$

In Stock, Qty 6

0

5

Honda 16561-ZE1-020

SPRING, GOVERNOR

$5.49

$

In Stock, Qty 5

0

6

Honda 16562-ZE1-020

SPRING, THROTTLE RETURN

$3.99

$

In Stock, Qty 20+

0

7

Honda 16571-Z1T-000

LEVER, CONTROL

$12.99

$

Usually ships in 3-6 days

0

8

Honda 16574-ZE1-000

SPRING, LEVER

$4.49

$

In Stock, only 2 left!

0

9

Honda 16575-ZH8-000

WASHER, CONTROL LEVER

$5.99

$

Usually ships in 3-6 days

0

10

Honda 16576-891-000

HOLDER, CABLE

$4.99

$

Usually ships in 3-6 days

0

11

Honda 16578-ZE1-000

SPACER, CONTROL LEVER

$5.49

$

In Stock, only 4 left!

0

12

Honda 16580-ZH8-813

SEE PART DETAILS - PRI; BASE, CONTROL (REMOTE)

$24.99

$

Usually ships in 3-6 days

0

13

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

$4.99

$

In Stock, Qty 7

0

14

Honda 16592-ZE1-810

SPRING, CABLE RETURN

$2.49

$

In Stock, only 3 left!

0

16

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

17

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

$3.49

$

In Stock, only 3 left!

0

19

Honda 90114-SA0-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM)

$4.49

$

In Stock, Qty 20+

0

20

Honda 93500-05016-0A

SCREW, PAN (5X16)

$1.49

$

In Stock, Qty 7

0

21

Honda 93500-05025-0H

SCREW, PAN (5X25)

$0.99

$

In Stock, only 4 left!

0

22

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0
