GX140 TX (GX140) - Honda Engine, Made in Japan (SN: GX140-1000001 - GX140-3263982) CARBURETOR Parts Diagram

Engine, Made in Japan

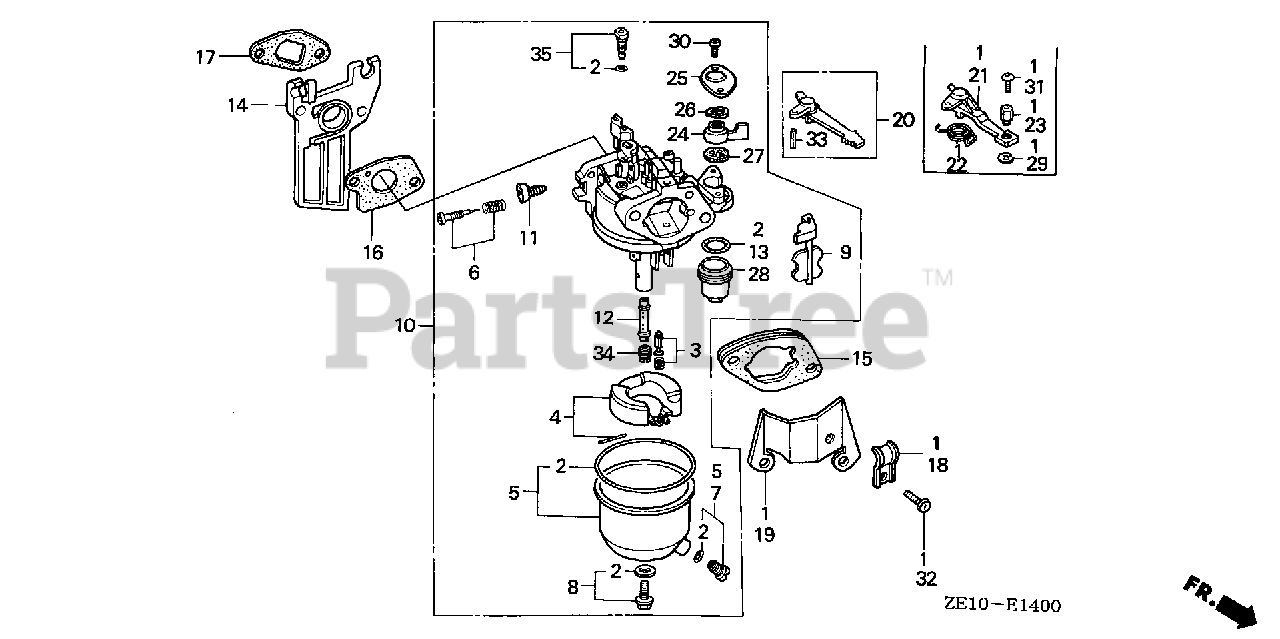

CARBURETOR Parts Diagram

  • Title
2

Honda 16010-ZE1-811

SEE PART DETAILS - SUP; GASKET SET (CARBURETOR NO.)
(Superseded to 16010-ZE1-812)

Note: Use up to Engine SN BE05B D.

$19.99

$

In Stock, Qty 14

0

2

Honda 16010-ZE1-812

SEE PART DETAILS - PRI; GASKET SET (CARBURETOR NO.)

Note: Use up to Engine SN BE05B D.

$19.99

$

In Stock, Qty 14

0

3

Honda 16011-ZE0-005

VALVE SET, FLOAT (SEAT NOT INCLUDED)

$28.99

$

In Stock, only 2 left!

0

4

$29.99

$

In Stock, only 1 left!

0

5

Honda 16015-ZE1-811

CHAMBER SET, FLOAT
(Superseded to 16015-ZE0-831)

$37.99

$

In Stock, only 2 left!

0

6

Honda 16016-ZE0-005

SCREW SET, PILOT

$14.99

$

In Stock, only 1 left!

0

7

Honda 16024-ZE1-811

SCREW SET, DRAIN

$10.99

$

In Stock, only 3 left!

0

8

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 3 left!

0

8

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 3 left!

0

9

$37.99

$

Usually ships in 3-6 days

0

10

Honda 16100-ZE1-822

CARBURETOR ASSY. (BE05C B) Use up to Engine SN 1378034.

$

$

Not available

10

Honda 16100-ZE1-825

SEE PART DETAILS - PRI; CARBURETOR ASSY.

Note: Use from Engine SN 2559751.

$116.99

$

Usually ships in 3-6 days

0

10

Honda 16100-ZE1-825

SEE PART DETAILS - PRI; CARBURETOR ASSY.

Note: Use from Engine SN 1378035 to 2559750.

$116.99

$

Usually ships in 3-6 days

0

11

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

12

Honda 16166-ZE1-005

NOZZLE, MAIN

$25.99

$

Usually ships in 3-6 days

0

13

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

$7.49

$

In Stock, Qty 7

0

14

Honda 16211-ZE1-000

INSULATOR, CARBURETOR

$23.99

$

In Stock, only 3 left!

0

15

Honda 16220-ZE1-000

SEE PART DETAILS - SUP; SPACER, CARBURETOR
(Superseded to 16220-ZE1-020)

Note: Use up to Engine SN 1786084.

$7.99

$

In Stock, Qty 20+

0

15

Honda 16220-ZE1-020

SEE PART DETAILS - PRI; SPACER, CARBURETOR

$7.99

$

In Stock, Qty 20+

0

16

Honda 16221-ZE0-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-ZH8-801)

$2.49

$

In Stock, Qty 20+

0

16

Honda 16221-ZE0-800

SEE PART DETAILS - SUP; GASKET, CARBURETOR

$

$

Currently unavailable

16

Honda 16221-ZH8-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

17

Honda 16223-ZE1-800

GASKET, INSULATOR

$3.49

$

In Stock, only 1 left!

0

20

Honda 16610-ZE1-000

LEVER, CHOKE (STD)

$10.99

$

In Stock, Qty 10

0

24

Honda 16953-ZE1-406

SEE PART DETAILS - PRI; LEVER, VALVE

Note: Use from Engine SN BE05C B.

$13.99

$

Usually ships in 3-6 days

0

25

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING

Note: Use from Engine SN BE05C B.

$4.49

$

In Stock, only 1 left!

0

26

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER (CARBURETOR NO.)

Note: Use from Engine SN BE05C B.

$3.99

$

In Stock, only 1 left!

0

27

Honda 16957-ZE1-811

SEE PART DETAILS - SUP; GASKET, PETCOCK (CARBURETOR NO.)
(Superseded to 16957-ZE1-812)

Note: Use from Engine SN BE05C B to BE05B D.

$4.49

$

In Stock, Qty 20+

0

27

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK (CARBURETOR NO.)

Note: Use from Engine SN BE05C B to BE05B D.

$4.49

$

In Stock, Qty 20+

0

28

Honda 16967-ZE0-811

CUP, FUEL STRAINER

$22.99

$

In Stock, only 4 left!

0

30

Honda 93500-03008-0G

SCREW, PAN (3X8)

Note: Use from Engine SN BE05B E.

$

$

Not available

30

Honda 93500-03008-0H

SCREW, PAN (3X8) (CARBURETOR NO.)

Note: Use from Engine SN BE05C B to BE05B D.

$0.99

$

In Stock, Qty 8

0

33

Honda 94305-20122

PIN, SPRING (2X12)

$2.49

$

In Stock, Qty 5

0

34

Honda 99101-124-0620

JET, MAIN (#62)

$11.99

$

Usually ships in 3-6 days

0

34

Honda 99101-124-0650

JET, MAIN (#65)

$12.99

$

In Stock, only 2 left!

0

34

Honda 99101-124-0680

JET, MAIN (#68)

$11.99

$

Usually ships in 3-6 days

0

35

Honda 99204-ZE0-0350

JET SET, PILOT (#35)

$22.99

$

In Stock, only 3 left!

0
