GX140 STP (GX140) - Honda Engine, Made in Japan (SN: GX140-1000001 - GX140-3263982) PISTON Parts Diagram

Engine, Made in Japan

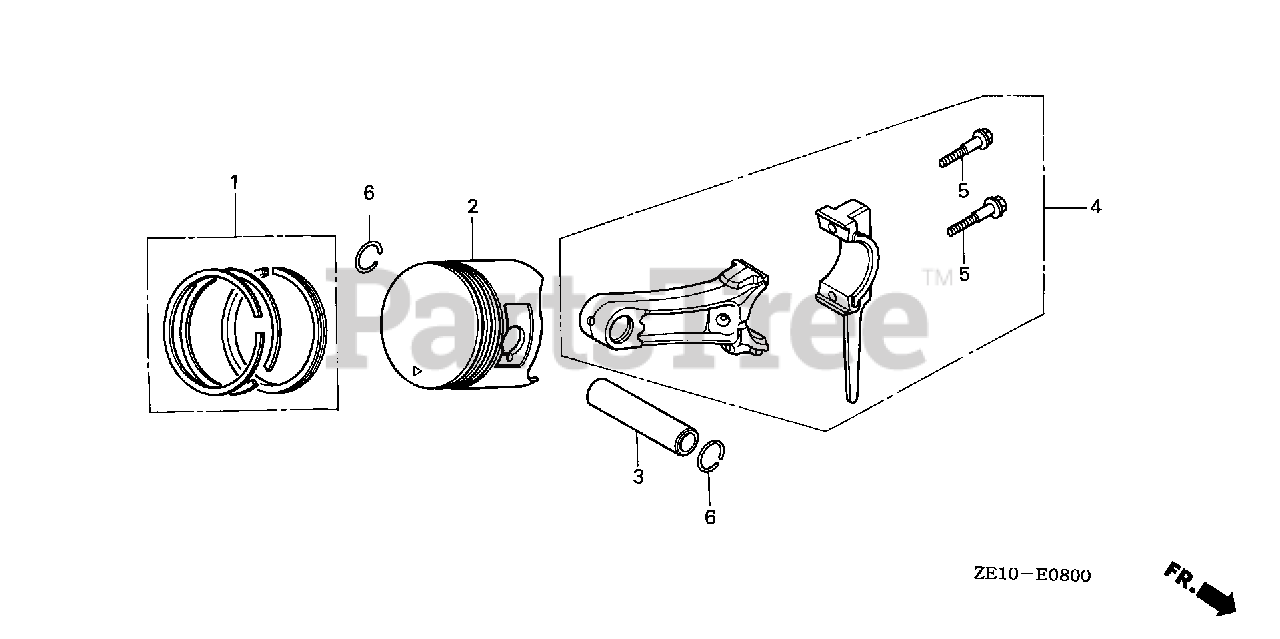

PISTON Parts Diagram

  • Title

1

Honda 130A1-ZE1-003

SEE PART DETAILS - SUP; RING SET, PISTON (STD) (NIPPON)
(Superseded to 13010-ZE1-013)

Note: Use up to Engine SN 2120317.

$34.99

$

Usually ships in 3-6 days

0

1

Honda 130A1-ZE1-004

SEE PART DETAILS - SUP; RING SET, PISTON (STD) (TEIKOKU)
(Superseded to 13010-ZE1-013)

Note: Use up to Engine SN 2120317.

$34.99

$

Usually ships in 3-6 days

0

1

Honda 130A2-ZE1-003

SEE PART DETAILS - SUP; RING SET, PISTON (0.25) Use up to Engine SN 2120317.
(Superseded to 13011-ZE1-013)

$

$

Not available

1

Honda 130A2-ZE1-004

SEE PART DETAILS - SUP; RING SET, PISTON (0.25) Use up to Engine SN 2120317.
(Superseded to 13011-ZE1-013)

$

$

Not available

1

Honda 130A3-ZE1-003

SEE PART DETAILS - SUP; RING SET, PISTON (0.50) Use up to Engine SN 2120317.
(Superseded to 13012-ZE1-013)

$

$

Not available

1

Honda 130A3-ZE1-004

SEE PART DETAILS - SUP; RING SET, PISTON (0.50) Use up to Engine SN 2120317.
(Superseded to 13012-ZE1-014)

$

$

Not available

1

Honda 130A4-ZE1-003

SEE PART DETAILS - SUP; RING SET, PISTON (0.75) Use up to Engine SN 2120317.
(Superseded to 13013-ZE1-013)

$

$

Not available

1

Honda 130A4-ZE1-004

SEE PART DETAILS - SUP; RING SET, PISTON (0.75) Use up to Engine SN 2120317.
(Superseded to 13013-ZE1-014)

$

$

Not available

1

Honda 13010-ZE1-013

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (NIPPON)

$34.99

$

Usually ships in 3-6 days

0

1

Honda 13011-ZE1-013

SEE PART DETAILS - PRI; RING SET, PISTON (0.25)

$

$

Not available

1

Honda 13012-ZE1-013

SEE PART DETAILS - PRI; RING SET, PISTON (0.50)

$

$

Not available

1

Honda 13013-ZE1-013

SEE PART DETAILS - PRI; RING SET, PISTON (0.75)

$

$

Not available

1

Honda 13013-ZE1-014

SEE PART DETAILS - SUP; RING SET, PISTON (0.75)
(Superseded to 13013-ZE1-013)

$

$

Not available

2

Honda 13101-ZE1-010

SEE PART DETAILS - PRI; PISTON (STD)

$

$

Not available

2

Honda 13102-ZE1-010

SEE PART DETAILS - PRI; PISTON (0.25)

$43.99

$

Usually ships in 3-6 days

0

2

Honda 13103-ZE1-010

PISTON (0.50)

$

$

Not available

2

Honda 13104-ZE1-000

PISTON (0.75) Use up to Engine SN 2120317.

$

$

Currently unavailable

2

Honda 13104-ZE1-010

PISTON (0.75) Use from Engine SN 2120318.

$

$

Currently unavailable

3

Honda 13111-ZE1-000

PIN, PISTON

$12.99

$

Usually ships in 3-6 days

0

4

Honda 132A0-ZE1-000

ROD ASSY., CONNECTING

$

$

Not available

4

Honda 13200-ZE1-000

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING (STD)
(Superseded to 13200-Z4V-900)

$13.99

$

In Stock, only 1 left!

0

4

Honda 13200-ZE1-010

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING (STD)
(Superseded to 13200-Z0T-800)

$13.99

$

In Stock, only 1 left!

0

5

Honda 90001-ZE1-000

BOLT, CONNECTING ROD

$3.99

$

In Stock, only 2 left!

0

6

Honda 90551-ZE1-000

CLIP, PISTON PIN (18MM)

$1.49

$

In Stock, Qty 20+

0
