GX140 QXE (GX140) - Honda Engine, Made in Japan (SN: GX140-1000001 - GX140-3263982) STARTING MOTOR Parts Diagram

Engine, Made in Japan

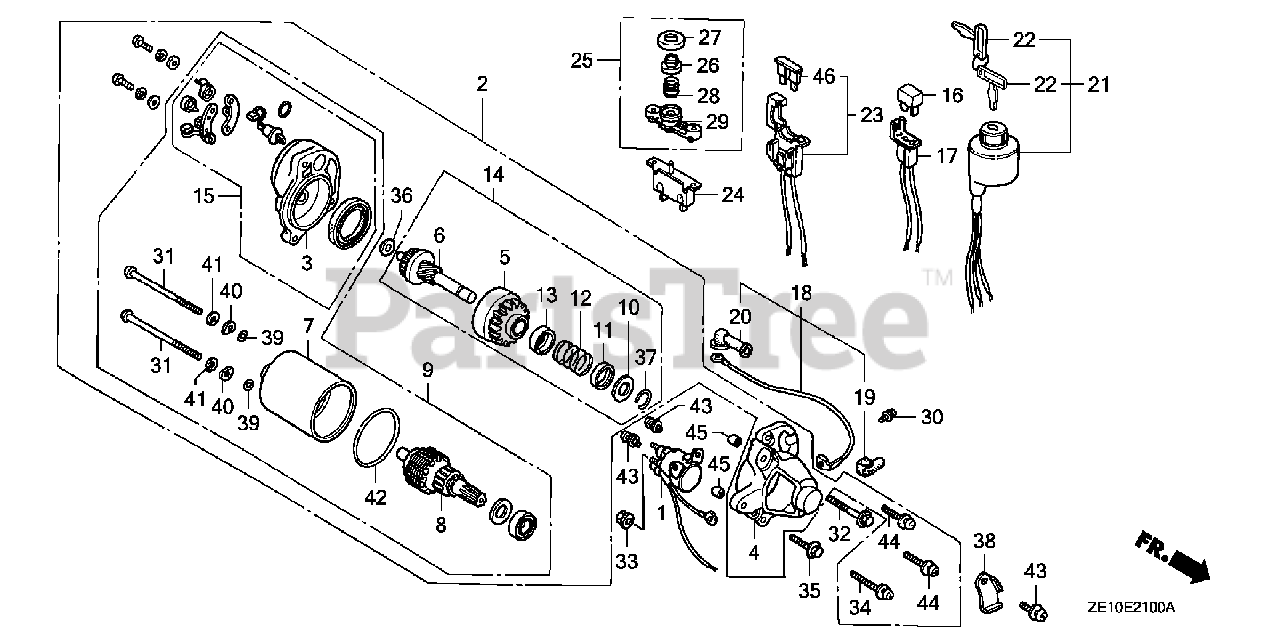

STARTING MOTOR Parts Diagram

  • Title

1

Honda 31204-ZE1-003

SEE PART DETAILS - SUP; SWITCH, STARTING MAGNET
(Superseded to 31204-ZE1-013)

$84.99

$

Usually ships in 3-6 days

0

2

Honda 31210-ZE1-023

STARTER MOTOR UNIT (SM-11203)

$313.99

$

Usually ships in 3-6 days

0

3

Honda 31211-ZE1-003

BRACKET, FR. Use up to Engine SN 1703215.

$56.99

$

Usually ships in 3-6 days

0

4

Honda 31212-ZE1-003

COVER, GEAR

$100.99

$

Usually ships in 3-6 days

0

5

Honda 31214-ZE1-003

PINION ASSY.

$169.99

$

Usually ships in 3-6 days

0

6

Honda 31215-ZE1-003

SHAFT UNIT, GEAR

$116.99

$

Usually ships in 3-6 days

0

7

Honda 31216-ZE1-003

YOKE ASSY.

$49.99

$

Usually ships in 3-6 days

0

8

Honda 31217-ZE1-013

ROTOR ASSY.

$68.99

$

Usually ships in 3-6 days

0

9

Honda 31220-ZE1-013

MOTOR ONLY

$292.99

$

Usually ships in 3-6 days

0

10

Honda 31221-ZE1-003

PIECE A, STOPPER

$12.99

$

Usually ships in 3-6 days

0

11

Honda 31222-ZE1-003

PIECE B, STOPPER

$12.99

$

Usually ships in 3-6 days

0

12

Honda 31223-ZE1-003

SPRING, RETURN

$9.49

$

Usually ships in 3-6 days

0

13

Honda 31224-ZE1-003

COVER, SPRING

$12.99

$

Usually ships in 3-6 days

0

14

Honda 31230-ZE1-003

GEAR ASSY.

$299.99

$

Usually ships in 3-6 days

0

15

Honda 31235-ZE1-013

BRACKET, FR.

$173.99

$

Usually ships in 3-6 days

0

18

Honda 32410-ZE1-010

SEE PART DETAILS - PRI; WIRE, MAGNETIC SWITCH

$15.99

$

Usually ships in 3-6 days

0

19

Honda 32411-ZE1-000

COVER, MAGNETIC SWITCH

$4.49

$

Usually ships in 3-6 days

0

20

Honda 32411-230-000

COVER, STARTER MOTOR TERMINAL

$9.49

$

Usually ships in 3-6 days

0

30

Honda 90010-ZE1-003

SCREW-WASHER (5X8)

$2.49

$

Usually ships in 3-6 days

0

31

Honda 90012-ZE1-003

BOLT, SETTING

$2.49

$

Usually ships in 3-6 days

0

32

Honda 90017-883-000

BOLT, FLANGE (6X32)

$3.49

$

In Stock, only 2 left!

0

33

Honda 90071-MB0-000

NUT-WASHER (6MM)

$2.99

$

Usually ships in 3-6 days

0

34

Honda 93892-05030-08

SCREW-WASHER (5X30)

$3.99

$

Usually ships in 3-6 days

0

35

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) (CT200)

$2.99

$

In Stock, Qty 20+

0

36

Honda 90502-187-701

WASHER, PINION

$3.49

$

Usually ships in 3-6 days

0

37

Honda 90603-ZE1-003

CIRCLIP (10.2MM)

$4.49

$

Usually ships in 3-6 days

0

38

Honda 90631-ZE1-003

HOLDER, HARNESS

$5.49

$

Usually ships in 3-6 days

0

39

Honda 91301-ZE1-003

O-RING

$2.49

$

Usually ships in 3-6 days

0

40

Honda 91402-ZE6-003

WASHER, SPECIAL

$2.99

$

Usually ships in 3-6 days

0

41

Honda 91403-ZE6-003

WASHER, SPRING

$2.49

$

Usually ships in 3-6 days

0

42

Honda 31206-KN7-670

O-RING Use from Engine SN 2664637.

$3.49

$

Usually ships in 3-6 days

0

42

Honda 91601-ZE1-003

O-RING Use up to Engine SN 2664636.

$7.99

$

Usually ships in 3-6 days

0

43

Honda 93892-05014-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X14)

$1.49

$

Usually ships in 3-6 days

0

44

Honda 93892-05020-08

SCREW-WASHER (5X20)

$1.49

$

Usually ships in 3-6 days

0

45

Honda 94301-08100

SEE PART DETAILS - PRI; PIN, DOWEL (8X10)

$2.99

$

Usually ships in 3-6 days

0
