GX140 QXE (GX140) - Honda Engine, Made in Japan (SN: GX140-1000001 - GX140-3263982) FLYWHEEL Parts Diagram

Engine, Made in Japan

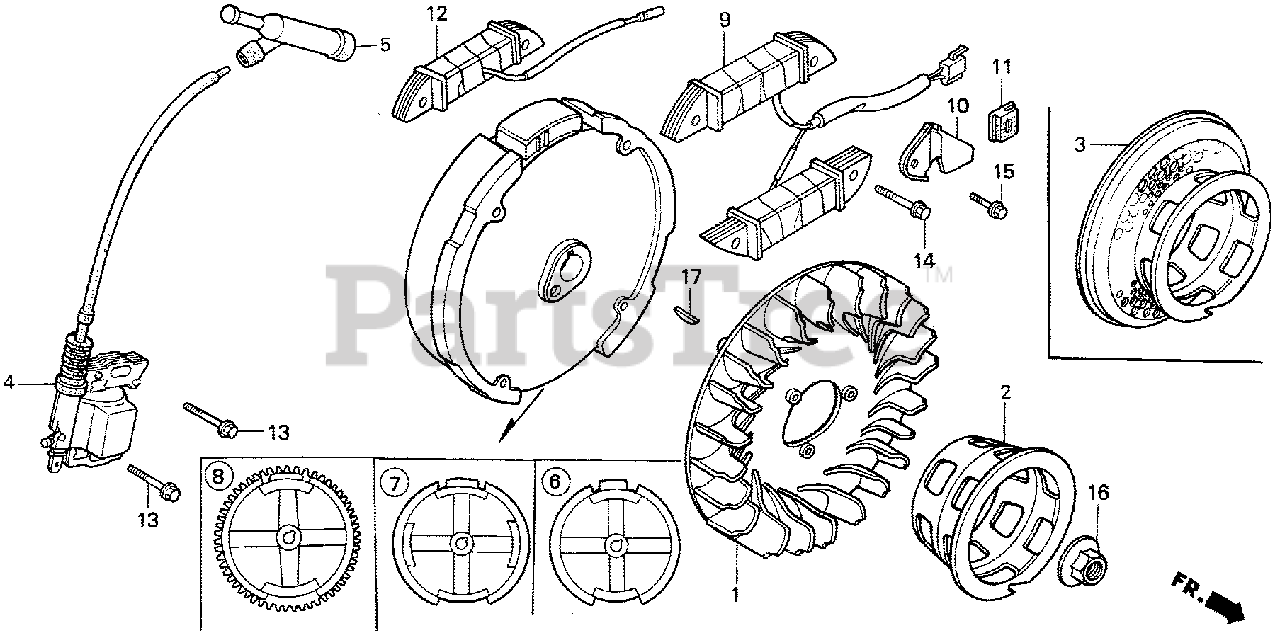

FLYWHEEL Parts Diagram

  • Title

1

Honda 19511-ZE1-000

FAN, COOLING (Honda Code 1428051).

$31.99

$

Usually ships in 3-6 days

0

2

Honda 28451-ZE1-003

SEE PART DETAILS - PRI; PULLEY, STARTER (Honda Code 1428721).

$36.99

$

Usually ships in 3-6 days

0

4

Honda 30500-ZE1-033

SEE PART DETAILS - SUP; COIL ASSY., IGNITION (Honda Code 4589693).
(Superseded to 30500-ZE1-073)

Note: Use up to Engine SN 3155568.

$109.99

$

In Stock, only 1 left!

0

4

Honda 30500-ZE1-033

SEE PART DETAILS - SUP; COIL ASSY., IGNITION (Honda Code 4589693).
(Superseded to 30500-ZE1-073)

Note: Use from Engine SN 3155569.

$109.99

$

In Stock, only 1 left!

0

4

Honda 30500-ZE1-043

SEE PART DETAILS - SUP; COIL ASSY., IGNITION (Honda Code 7120405).
(Superseded to 30500-ZE1-073)

Note: Use up to Engine SN 3155568.

$109.99

$

In Stock, only 1 left!

0

4

Honda 30500-ZE1-043

SEE PART DETAILS - SUP; COIL ASSY., IGNITION (Honda Code 7120405).
(Superseded to 30500-ZE1-073)

Note: Use from Engine SN 3155569.

$109.99

$

In Stock, only 1 left!

0

5

Honda 30700-ZE1-013

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR (Honda Code 3526837).

$24.99

$

In Stock, only 1 left!

0

8

Honda 31100-ZE1-821

SEE PART DETAILS - PRI; FLYWHEEL (STARTER MOTOR) (Honda Code 5308457).

$211.99

$

Usually ships in 3-6 days

0

10

Honda 31511-ZE1-000

CLAMP, WIRE (Honda Code 1497197).

$4.99

$

In Stock, only 2 left!

0

11

Honda 31512-ZE1-000

GROMMET, WIRE (Honda Code 1497205).

$3.49

$

Usually ships in 3-6 days

0

12

Honda 31630-ZE1-003

COIL ASSY., CHARGE (Honda Code 2026615).
(Superseded to 31630-ZE1-013)

$71.99

$

Usually ships in 3-6 days

0

13

Honda 90121-952-000

BOLT, FLANGE (6X25) (Honda Code 0748111).

$2.99

$

In Stock, Qty 20+

0

14

Honda 90015-883-000

BOLT, FLANGE (6X28) (Honda Code 0636852).

$3.99

$

In Stock, Qty 8

0

15

Honda 90019-883-000

BOLT, FLANGE (5X10) (Honda Code 0636878).

$3.49

$

Usually ships in 3-6 days

0

16

Honda 90201-878-003

SEE PART DETAILS - PRI; NUT, SPECIAL (14MM) (Honda Code 0442038).

$7.99

$

In Stock, only 1 left!

0

17

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18) (Honda Code 0348433).

$5.49

$

In Stock, only 4 left!

0
