GX140 QA (GX140) - Honda Engine, Made in Japan (SN: GX140-1000001 - GX140-3263982) FUEL TANK Parts Diagram

Engine, Made in Japan

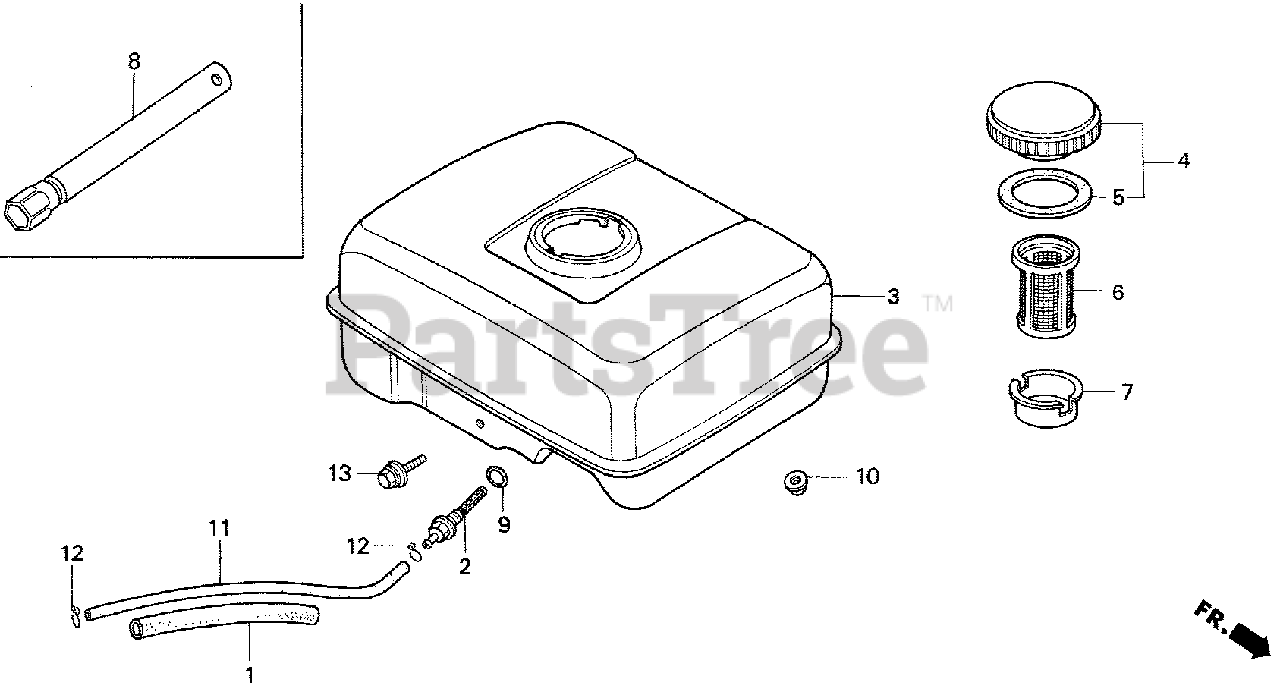

FUEL TANK Parts Diagram

  • Title

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM) (Honda Code 3683646).

$4.99

$

In Stock, only 4 left!

0

2

Honda 16955-ZE1-000

JOINT, FUEL TANK (Honda Code 1427459).
(Superseded to 16955-ZE1-010)

$8.99

$

In Stock, Qty 20+

0

3

Honda 17510-ZE1-020ZA

SEE PART DETAILS - PRI; TANK, FUEL *NH31* (MCKINLEY WHITE) (Honda Code 3683661).
(Superseded to 17510-ZE1-030ZA)

$176.99

$

Usually ships in 3-6 days

0

4

Honda 17620-ZH7-013

SEE PART DETAILS - SUP; CAP, FUEL FILLER (Honda Code 4572392).

$

$

Currently unavailable

4

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER (Honda Code 5344817).
(Superseded to 17620-Z0T-305)

$

$

Not available

5

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP (Honda Code 2820587).
(Superseded to 17631-329-013)

$

$

Not available

6

Honda 17672-880-000

FILTER, FUEL (Honda Code 0474759).

$13.99

$

Usually ships in 3-6 days

0

7

Honda 17673-893-000

SEE PART DETAILS - PRI; HOLDER, FUEL FILTER (Honda Code 0788109).

$14.99

$

In Stock, only 1 left!

0

8

Honda 89218-ZE1-000

WRENCH, SPARK PLUG (Honda Code 1431048).

Note: Use from Engine SN 1005955.

$20.99

$

Usually ships in 3-6 days

0

9

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (13.5X1.5) (ARAI) (Honda Code 0949883).

$3.99

$

In Stock, Qty 20+

0

10

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

11

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X140) (Honda Code 5137104).

$54.99

$

In Stock, only 4 left!

0

12

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

$2.49

$

In Stock, only 4 left!

0

13

Honda 95700-06025-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X25) (Honda Code 0484485).

$

$

Currently unavailable

13

Honda 95701-06025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) (Honda Code 2105831).

$2.49

$

In Stock, Qty 8

0
