GX140 QA (GX140) - Honda Engine, Made in Japan (SN: GX140-1000001 - GX140-3263982) CRANKCASE COVER Parts Diagram

Engine, Made in Japan

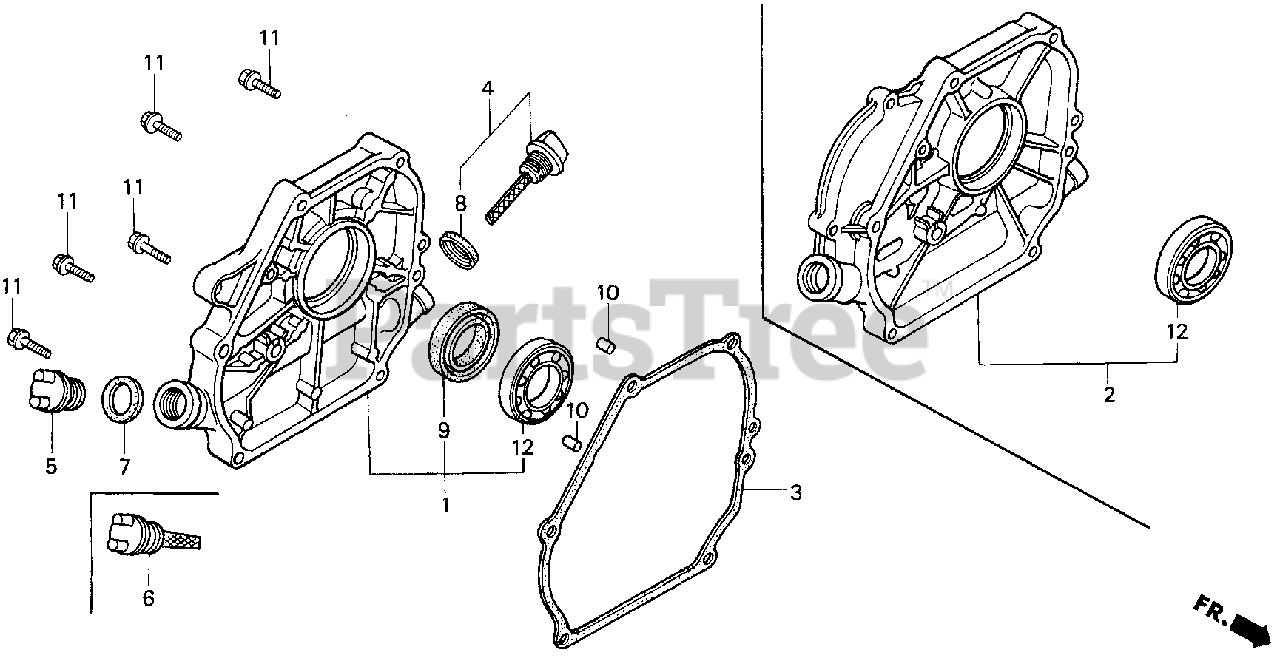

CRANKCASE COVER Parts Diagram

  • Title

1

Honda 11300-ZE1-600

COVER ASSY., CRANKCASE (Q-TYPE) (Honda Code 1426295).

Note: Use up to Engine SN 1604445.

$

$

Not available

1

Honda 11300-ZE1-641

SEE PART DETAILS - SUP; COVER ASSY., CRANKCASE (U-TYPE) (Honda Code 4731568).
(Superseded to 11300-ZE1-642)

Note: Use from Engine SN 1604446.

$63.99

$

Usually ships in 3-6 days

0

1

Honda 11300-ZE1-642

SEE PART DETAILS - PRI; COVER ASSY., CRANKCASE (Honda Code 7393127).

Note: Use from Engine SN 1604446.

$63.99

$

Usually ships in 3-6 days

0

3

Honda 11381-ZE1-800

SEE PART DETAILS - SUP; GASKET, CASE COVER (Honda Code 4512893).
(Superseded to 11381-ZH8-801)

$7.99

$

In Stock, Qty 20+

0

3

Honda 11381-ZH8-800

SEE PART DETAILS - SUP; GASKET, CASE COVER (Honda Code 3683349).
(Superseded to 11381-ZH8-801)

$7.99

$

In Stock, Qty 20+

0

3

Honda 11381-ZH8-801

SEE PART DETAILS - PRI; GASKET, CASE COVER (NON-ASBESTOS) (Honda Code 4723144).

$7.99

$

In Stock, Qty 20+

0

4

Honda 15600-ZE1-003

SEE PART DETAILS - PRI; CAP ASSY., OIL FILLER (Honda Code 4500146).
(Superseded to 15600-Z0T-810)

$1.49

$

In Stock, Qty 7

0

5

Honda 15620-ZG4-910

SEE PART DETAILS - PRI; CAP, OIL FILLER (Honda Code 3678596).

Note: Use from Engine SN 3249295.

$4.99

$

Usually ships in 3-6 days

0

5

Honda 15620-ZG4-910

SEE PART DETAILS - PRI; CAP, OIL FILLER (Honda Code 3678596).

Note: Use from Engine SN 3248505.

$4.99

$

Usually ships in 3-6 days

0

6

Honda 15621-ZE1-000

CAP, OIL HOLE (Honda Code 1427061).

Note: Use up to Engine SN 3248504.

$7.49

$

Usually ships in 3-6 days

0

7

Honda 15621-896-010

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP (Honda Code 1033042).

$5.99

$

In Stock, Qty 5

0

8

Honda 15625-ZE1-000

SEE PART DETAILS - SUP; GASKET, OIL FILLER CAP (Honda Code 1427079).
(Superseded to 15625-ZE1-003)

$3.49

$

In Stock, only 3 left!

0

8

Honda 15625-ZE1-003

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP (Honda Code 4497947).

$3.49

$

In Stock, only 3 left!

0

9

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6) (Honda Code 7352453).

$9.49

$

In Stock, Qty 11

0

9

Honda 91202-883-005

SEE PART DETAILS - SUP; OIL SEAL (25X41X6) (Honda Code 0636936).
(Superseded to 91201-Z0T-801)

$9.49

$

In Stock, Qty 11

0

10

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0

11

Honda 95701-08032-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X32) (Honda Code 2751725).

$1.99

$

In Stock, Qty 5

0

12

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205) (Honda Code 0636977).

$25.99

$

In Stock, only 1 left!

0
