GX140 QA (GX140) - Honda Engine, Made in Japan (SN: GX140-1000001 - GX140-3263982) CONTROL Parts Diagram

Engine, Made in Japan

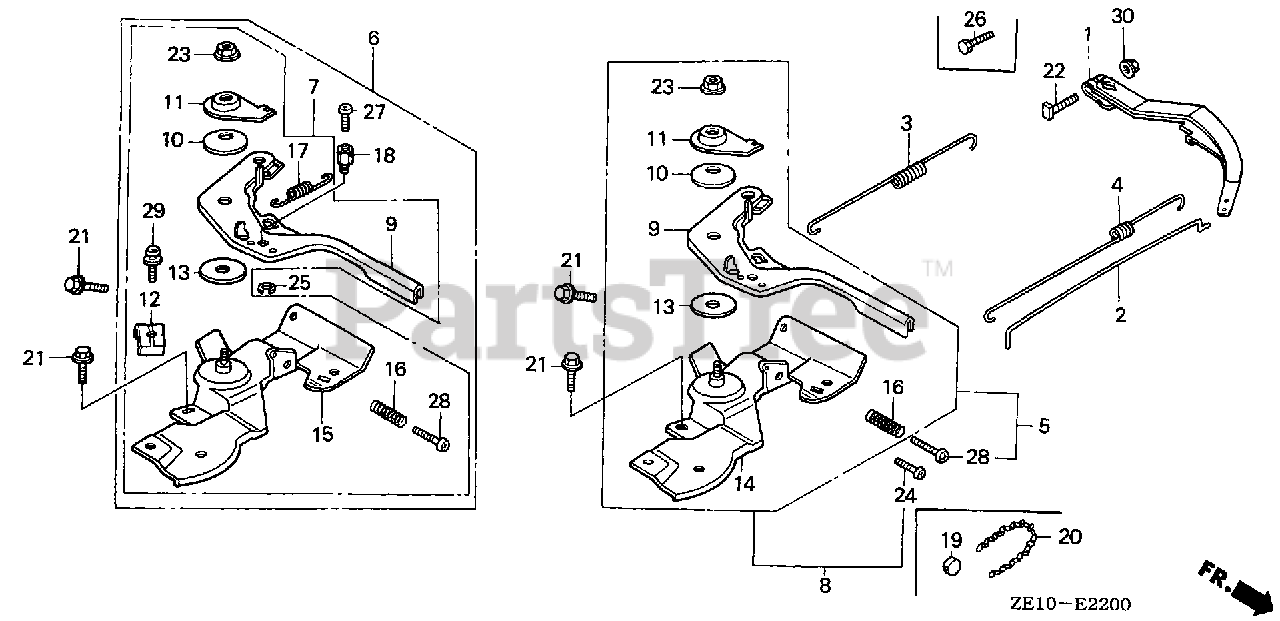

CONTROL Parts Diagram

  • Title

1

Honda 16551-ZE0-010

SEE PART DETAILS - PRI; ARM, GOVERNOR

Note: Use from Engine SN 3033316.

$15.99

$

Usually ships in 3-6 days

0

1

Honda 16551-ZE0-010

SEE PART DETAILS - PRI; ARM, GOVERNOR

Note: Use up to Engine SN 3033315.

$15.99

$

Usually ships in 3-6 days

0

1

Honda 16551-ZE1-010

SEE PART DETAILS - SUP; ARM, GOVERNOR

Note: Use up to Engine SN 3033315.

$15.99

$

Usually ships in 3-6 days

0

2

Honda 16555-ZE1-000

ROD, GOVERNOR

$4.99

$

In Stock, only 4 left!

0

3

Honda 16561-ZE1-010

SEE PART DETAILS - SUP; SPRING, GOVERNOR
(Superseded to 16561-ZE1-810)

Note: Use up to Engine SN 1378034.

$5.49

$

In Stock, only 3 left!

0

3

Honda 16561-ZE1-020

SPRING, GOVERNOR

Note: Use from Engine SN 1378035.

$5.49

$

In Stock, only 2 left!

0

3

Honda 16561-ZE1-810

SEE PART DETAILS - PRI; SPRING, GOVERNOR

Note: Use up to Engine SN 1378034.

$5.49

$

In Stock, only 3 left!

0

4

Honda 16562-ZE1-020

SPRING, THROTTLE RETURN

$3.99

$

In Stock, Qty 17

0

7

Honda 16500-ZH8-823

CONTROL ASSY. (REMOTE)

Note: Use from Engine SN 3172542.

$43.99

$

Usually ships in 3-6 days

0

7

Honda 16500-ZH8-823

CONTROL ASSY. (REMOTE)

Note: Use from Engine SN 1378035 to 3172541.

$43.99

$

Usually ships in 3-6 days

0

7

Honda 16570-ZE1-820

CONTROL ASSY. (REMOTE)

Note: Use up to Engine SN 1378034.

$39.99

$

Usually ships in 3-6 days

0

9

Honda 16571-ZE1-000

LEVER, CONTROL

Note: Use up to Engine SN 1378034.

$14.99

$

Usually ships in 3-6 days

0

9

Honda 16571-ZH8-010

SEE PART DETAILS - SUP; LEVER, CONTROL

Note: Use from Engine SN 1378035 to 3172541.

$

$

Currently unavailable

9

Honda 16571-ZH8-010

SEE PART DETAILS - SUP; LEVER, CONTROL

Note: Use from Engine SN 3172542.

$

$

Currently unavailable

10

Honda 16574-ZE1-000

SPRING, LEVER

$4.49

$

In Stock, only 2 left!

0

11

Honda 16575-ZH8-000

WASHER, CONTROL LEVER

Note: Use up to Engine SN 3172541.

$5.99

$

Usually ships in 3-6 days

0

11

Honda 16575-ZH8-000

WASHER, CONTROL LEVER

Note: Use from Engine SN 3172542.

$5.99

$

Usually ships in 3-6 days

0

12

Honda 16576-891-000

HOLDER, CABLE

$4.99

$

Usually ships in 3-6 days

0

13

Honda 16578-ZE1-000

SPACER, CONTROL LEVER

$5.49

$

In Stock, only 4 left!

0

15

Honda 16580-ZH8-811

SEE PART DETAILS - SUP; BASE, CONTROL (REMOTE)

Note: Use from Engine SN 3172542.

$

$

Currently unavailable

15

Honda 16580-ZH8-811

SEE PART DETAILS - SUP; BASE, CONTROL (REMOTE)

Note: Use up to Engine SN 3172541.

$

$

Currently unavailable

16

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

$4.99

$

In Stock, Qty 7

0

17

Honda 16592-ZE1-810

SPRING, CABLE RETURN

$2.49

$

In Stock, only 2 left!

0

21

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

22

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

Note: Use from Engine SN 1770358.

$3.49

$

In Stock, only 3 left!

0

23

Honda 90114-SA0-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM)

Note: Use from Engine SN 1049825.

$4.49

$

Usually ships in 3-6 days

0

23

Honda 94050-06000

NUT, FLANGE (6MM)

Note: Use up to Engine SN 1049824.

$0.99

$

In Stock, Qty 20+

0

26

Honda 92101-06020-0A

BOLT, HEX. (6X20)

Note: Use up to Engine SN 1770357.

$1.49

$

Usually ships in 3-6 days

0

28

Honda 93500-05020-0H

SCREW, PAN (5X20)

Note: Use up to Engine SN 3172541.

$1.49

$

Usually ships in 3-6 days

0

28

Honda 93500-05025-0H

SCREW, PAN (5X25)

Note: Use from Engine SN 3172542.

$0.99

$

In Stock, only 4 left!

0

29

Honda 93500-05016-0A

SCREW, PAN (5X16)

Note: Use from Engine SN 3172542.

$1.49

$

In Stock, Qty 7

0

29

Honda 93893-05016-00

SCREW-WASHER (5X16)

Note: Use up to Engine SN 3172541.

$1.49

$

Usually ships in 3-6 days

0

30

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0
