GX140 QA (GX140) - Honda Engine, Made in Japan (SN: GX140-1000001 - GX140-3263982) AIR CLEANER (OIL BATH) Parts Diagram

Engine, Made in Japan

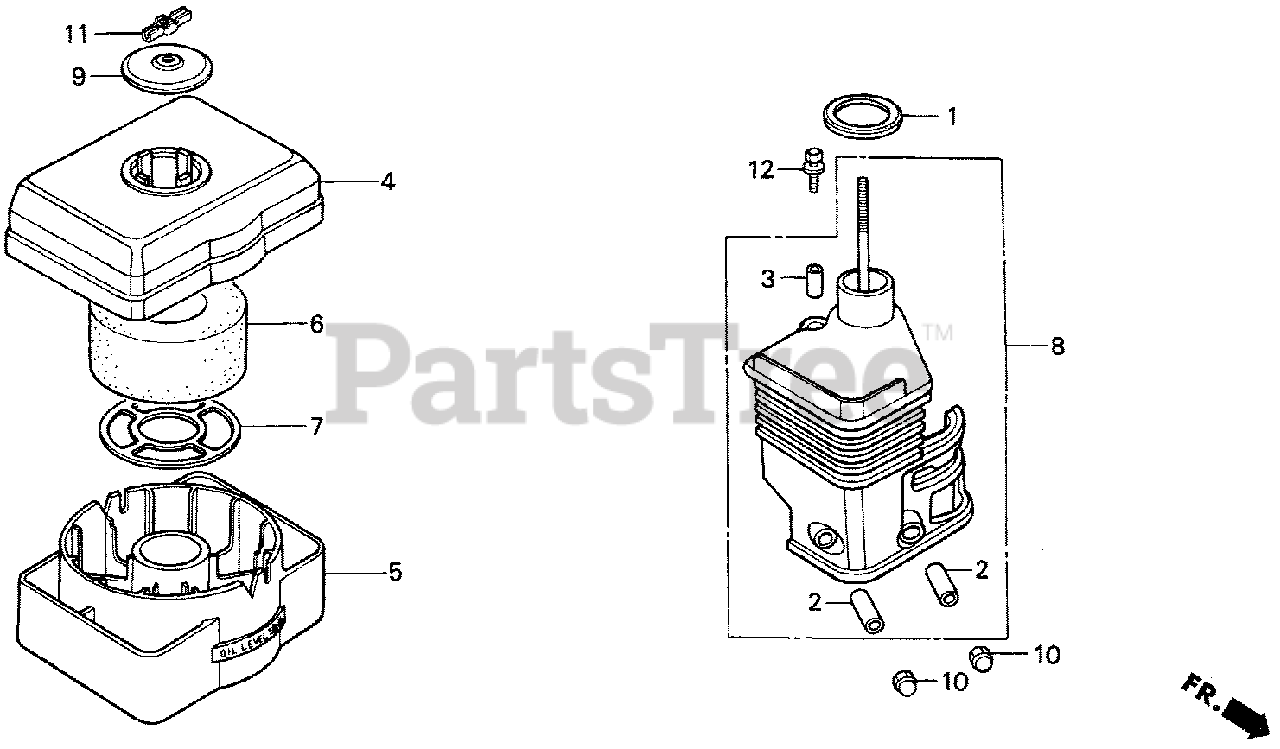

AIR CLEANER (OIL BATH) Parts Diagram

  • Title
1

Honda 16271-ZE1-000

GASKET, ELBOW (Honda Code 1427194).

$4.99

$

In Stock, Qty 7

0

2

Honda 17238-ZE1-000

COLLAR, AIR CLEANER (Honda Code 1427525).

Note: Use up to Engine SN 1786084.

$5.49

$

Usually ships in 3-6 days

0

2

Honda 17238-ZE7-010

COLLAR, AIR CLEANER (Honda Code 2455673).

Note: Use from Engine SN 1786085.

$4.99

$

Usually ships in 3-6 days

0

3

Honda 17239-ZE1-000

COLLAR B, AIR CLEANER (Honda Code 1427533).

$4.99

$

In Stock, Qty 7

0

4

Honda 17401-ZE1-810

BODY, CLEANER (OIL BATH) (Honda Code 1427574).

$35.99

$

Usually ships in 3-6 days

0

5

Honda 17402-ZE1-810

PAN, CLEANER OIL (OIL BATH) (Honda Code 1427582).

$35.99

$

Usually ships in 3-6 days

0

6

Honda 17403-ZE1-810

ELEMENT, AIR CLEANER (OIL BATH) (Honda Code 1427590).

$6.49

$

In Stock, only 2 left!

0

7

Honda 17404-841-000

GRID, AIR CLEANER (Honda Code 0181180).

$10.99

$

Usually ships in 3-6 days

0

8

Honda 04101-ZE1-000

SEE PART DETAILS - PRI; ELBOW, AIR CLEANER (Honda Code 2660157).

Note: Use from Engine SN 1220570 to 1786084.

$

$

Not available

8

Honda 17410-ZE1-010

SEE PART DETAILS - SUP; ELBOW, AIR CLEANER (Honda Code 1551175).
(Superseded to 04101-ZE1-000)

Note: Use from Engine SN 1220570 to 1786084.

$

$

Not available

8

Honda 17410-ZE1-020

ELBOW, AIR CLEANER (Honda Code 2481653).
(Superseded to 17410-ZE1-030)

Note: Use from Engine SN 1786085.

$39.99

$

In Stock, only 1 left!

0

8

Honda 17410-ZE1-405

SEE PART DETAILS - PRI; ELBOW, AIR CLEANER (Honda Code 2752590).

Note: Use up to Engine SN 1220569.

$

$

Not available

9

Honda 17421-ZE1-000

CAP, CLEANER (Honda Code 1427616).

$12.99

$

In Stock, only 4 left!

0

10

Honda 90201-415-000

NUT, CAP (6MM) (Honda Code 0670729).

$2.99

$

In Stock, Qty 12

0

11

Honda 90203-PB2-000

SEE PART DETAILS - PRI; WINGNUT, AIR CLEANER COVER (Honda Code 0994855).

$10.99

$

In Stock, only 3 left!

0

12

Honda 93404-06020-08

BOLT-WASHER (6X20) (Honda Code 2410694).

$2.49

$

In Stock, only 2 left!

0

12

Honda 93494-06020-08

SEE PART DETAILS - PRI; BOLT-WASHER (6X20) (Honda Code 0468421).

$

$

Not available
