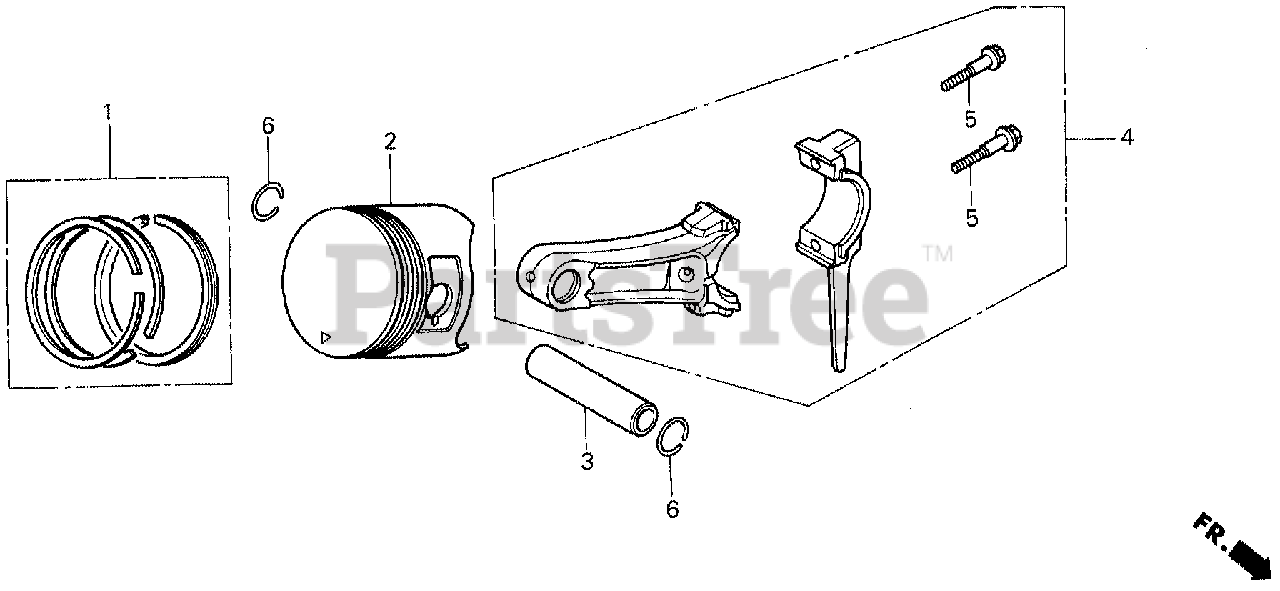

GX140 LX (GX140) - Honda Engine, Made in Japan (SN: GX140-1000001 - GX140-3263982) PISTON Parts Diagram

Engine, Made in Japan

PISTON Parts Diagram

  • Title

1

Honda 130A1-ZE1-003

SEE PART DETAILS - SUP; RING SET, PISTON (STD) (Honda Code 1436526).
(Superseded to 13010-ZE1-013)

Note: Use up to Engine SN 2120317.

$34.99

$

Usually ships in 3-6 days

0

1

Honda 130A1-ZE1-004

SEE PART DETAILS - SUP; RING SET, PISTON (STD) (Honda Code 1436534).
(Superseded to 13010-ZE1-013)

Note: Use up to Engine SN 2120317.

$34.99

$

Usually ships in 3-6 days

0

1

Honda 130A2-ZE1-003

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.25) (Honda Code 1441179).
(Superseded to 13011-ZE1-013)

Note: (Optional). Use up to Engine SN 2120317.

$

$

Not available

1

Honda 130A2-ZE1-004

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.25) (Honda Code 1441187).
(Superseded to 13011-ZE1-013)

Note: (Optional). Use up to Engine SN 2120317.

$

$

Not available

1

Honda 130A3-ZE1-003

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.50) (Honda Code 1441211).
(Superseded to 13012-ZE1-013)

Note: (Optional). Use up to Engine SN 2120317.

$

$

Not available

1

Honda 130A3-ZE1-004

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.50) (Honda Code 1441229).
(Superseded to 13012-ZE1-014)

Note: (Optional). Use up to Engine SN 2120317.

$

$

Not available

1

Honda 130A4-ZE1-003

SEE PART DETAILS - SUP; RING SET, PISTON (0.75) (Honda Code 1441252).
(Superseded to 13013-ZE1-013)

Note: (Optional). Use up to Engine SN 2120317.

$

$

Not available

1

Honda 130A4-ZE1-004

SEE PART DETAILS - SUP; RING SET, PISTON (0.75) (Honda Code 1441260).
(Superseded to 13013-ZE1-014)

Note: (Optional). Use up to Engine SN 2120317.

$

$

Not available

1

Honda 13010-ZE1-013

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (Honda Code 3017811).

Note: Use up to Engine SN 2120317.

$34.99

$

Usually ships in 3-6 days

0

1

Honda 13010-ZE1-013

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (Honda Code 3017811).

Note: Use from Engine SN 2120318.

$34.99

$

Usually ships in 3-6 days

0

1

Honda 13010-ZE1-014

SEE PART DETAILS - SUP; RING SET, PISTON (STD) (Honda Code 3017829).
(Superseded to 13010-ZE1-013)

Note: Use up to Engine SN 2120317.

$34.99

$

Usually ships in 3-6 days

0

1

Honda 13010-ZE1-014

SEE PART DETAILS - SUP; RING SET, PISTON (STD) (Honda Code 3017829).
(Superseded to 13010-ZE1-013)

Note: Use from Engine SN 2120318.

$34.99

$

Usually ships in 3-6 days

0

1

Honda 13011-ZE1-013

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25) (Honda Code 3017837).

Note: (Optional).

$

$

Not available

1

Honda 13011-ZE1-014

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.25) (Honda Code 3017845).
(Superseded to 13011-ZE1-013)

Note: (Optional). Use up to Engine SN 2120317.

$

$

Not available

1

Honda 13011-ZE1-014

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.25) (Honda Code 3017845).
(Superseded to 13011-ZE1-013)

Note: (Optional). Use from Engine SN 2120318.

$

$

Not available

1

Honda 13012-ZE1-013

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50) (Honda Code 3017852).

Note: (Optional).

$

$

Not available

1

Honda 13013-ZE1-013

SEE PART DETAILS - PRI; RING SET, PISTON (0.75) (Honda Code 3017878).

Note: (Optional). Use up to Engine SN 2120317.

$

$

Not available

1

Honda 13013-ZE1-013

SEE PART DETAILS - PRI; RING SET, PISTON (0.75) (Honda Code 3017878).

Note: (Optional). Use from Engine SN 2120318.

$

$

Not available

2

Honda 13101-ZE1-000

SEE PART DETAILS - SUP; PISTON (STD) (Honda Code 1426568).
(Superseded to 13101-ZE1-010)

Note: Use up to Engine SN 2120317.

$

$

Not available

2

Honda 13101-ZE1-010

SEE PART DETAILS - PRI; PISTON (STD) (Honda Code 2981371).

Note: Use up to Engine SN 2120317.

$

$

Not available

2

Honda 13101-ZE1-010

SEE PART DETAILS - PRI; PISTON (STD) (Honda Code 2981371).

Note: Use from Engine SN 2120318.

$

$

Not available

2

Honda 13102-ZE1-010

SEE PART DETAILS - PRI; PISTON (OS 0.25) (Honda Code 3098795).

Note: (Optional).

$43.99

$

Usually ships in 3-6 days

0

2

Honda 13103-ZE1-010

SEE PART DETAILS - PRI; PISTON (OS 0.50) (Honda Code 3088390).

Note: (Optional).

$

$

Not available

2

Honda 13104-ZE1-010

SEE PART DETAILS - PRI; PISTON (0.75) (Honda Code 3101169).

Note: (Optional). Use up to Engine SN 2120317.

$

$

Currently unavailable

2

Honda 13104-ZE1-010

SEE PART DETAILS - PRI; PISTON (0.75) (Honda Code 3101169).

Note: (Optional). Use from Engine SN 2120318.

$

$

Currently unavailable

3

Honda 13111-ZE1-000

PIN, PISTON (Honda Code 1426584).

$12.99

$

Usually ships in 3-6 days

0

4

Honda 132A0-ZE1-000

ROD ASSY., CONNECTING (US 0.25) (Honda Code 1441344).

Note: (Optional).

$

$

Not available

4

Honda 13200-ZE1-000

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING (Honda Code 1426600).
(Superseded to 13200-Z4V-900)

$13.99

$

In Stock, only 1 left!

0

4

Honda 13200-ZE1-010

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (Honda Code 4725255).
(Superseded to 13200-Z0T-800)

$13.99

$

In Stock, only 1 left!

0

5

Honda 90001-ZE1-000

BOLT, CONNECTING ROD (Honda Code 1431055).

$3.99

$

In Stock, only 2 left!

0

6

Honda 90551-ZE1-000

CLIP, PISTON PIN (18MM) (Honda Code 2539120).

Note: Use from Engine SN 1894373.

$1.49

$

In Stock, Qty 18

0

6

Honda 94601-18000

SEE PART DETAILS - PRI; CLIP, PISTON PIN (18MM) (Honda Code 0317305).

Note: Use up to Engine SN 1894372.

$1.49

$

Usually ships in 3-6 days

0
