GX120 UT3 LXUZ (GCCJT) - Honda Engine, Made in Thailand (SN: GCCJT-1000001 - GCCJT-1398593) REDUCTION (1) Parts Diagram
Engine, Made in Thailand

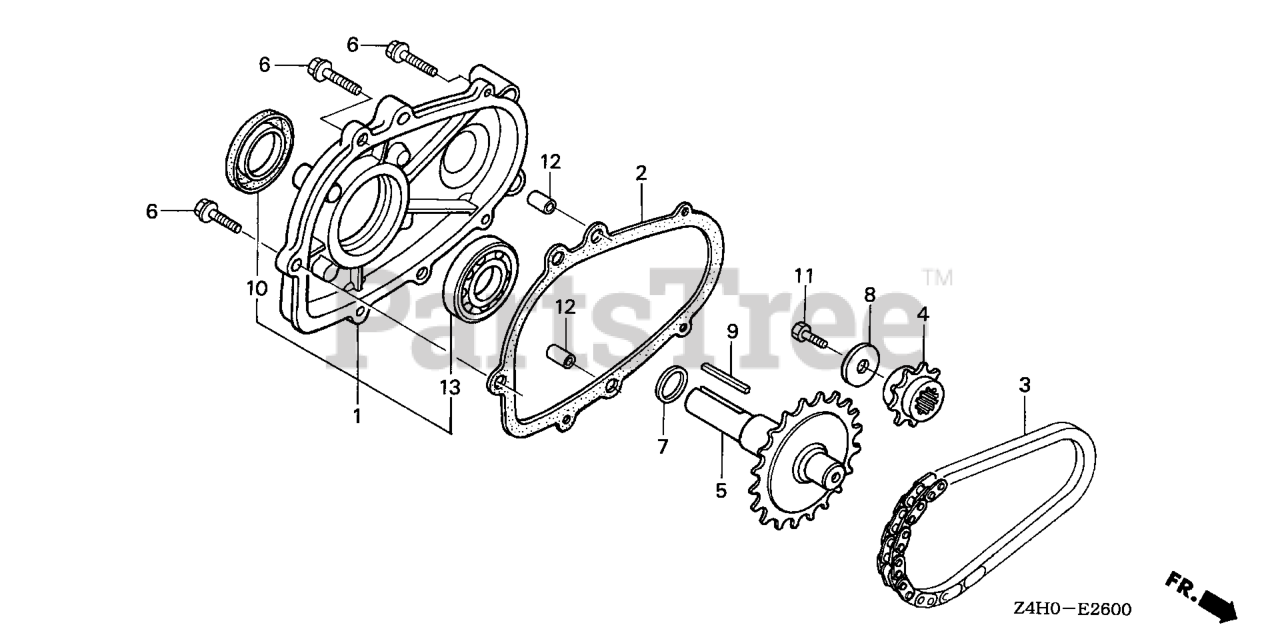

REDUCTION (1) Parts Diagram
Honda 11500-ZE1-611
SEE PART DETAILS - PRI; COVER ASSY., CHAIN CASE
$126.99
$
Usually ships in 3-6 days
Honda 11521-ZH8-800
SEE PART DETAILS - PRI; GASKET, CHAIN CASE COVER (Honda Code 3735362).
$8.49
$
Usually ships in 3-6 days
Honda 14411-ZE0-611
CHAIN, P.T.O. DRIVE (DID270S-DHA-36LE)
$27.99
$
Usually ships in 3-6 days
Honda 23110-ZE0-610
SPROCKET, DRIVE (14T)
$46.99
$
Usually ships in 3-6 days
Honda 23710-ZE0-613
SHAFT, P.T.O. (28T)
$150.99
$
Usually ships in 3-6 days
Honda 90015-883-000
BOLT, FLANGE (6X28) (CT200) Use up to Engine SN 1530314.
$3.99
$
Usually ships in 3-6 days
Honda 90456-ZE1-000
SPRING, THRUST (Honda Code 2946226).
$5.49
$
Usually ships in 3-6 days
Honda 90471-ZE1-610
WASHER (8MM) (Honda Code 1904366).
$5.49
$
Usually ships in 3-6 days
Honda 90741-883-810
KEY (5X5X33) (Honda Code 1033505).
$11.99
$
Usually ships in 3-6 days
Honda 91201-Z0T-801
SEE PART DETAILS - PRI; OIL SEAL (25X41X6) (Honda Code 7352453).
$8.99
$
In Stock, only 2 left!
Honda 92101-08025-0A
SEE PART DETAILS - PRI; BOLT, HEX. (8X25) (Honda Code 2651537).
$2.49
$
In Stock, Qty 6
Honda 94301-08140
SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).
$2.99
$
In Stock, Qty 8
Honda 96100-62050-00
SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205) (Honda Code 0636977).
$24.99
$
In Stock, only 1 left!
