GX120 UT1 VXU (GCAGT) - Honda Engine, Made in Thailand (SN: GCAGT-1000001 - GCAGT-9999999) FUEL TANK (1) Parts Diagram

Engine, Made in Thailand

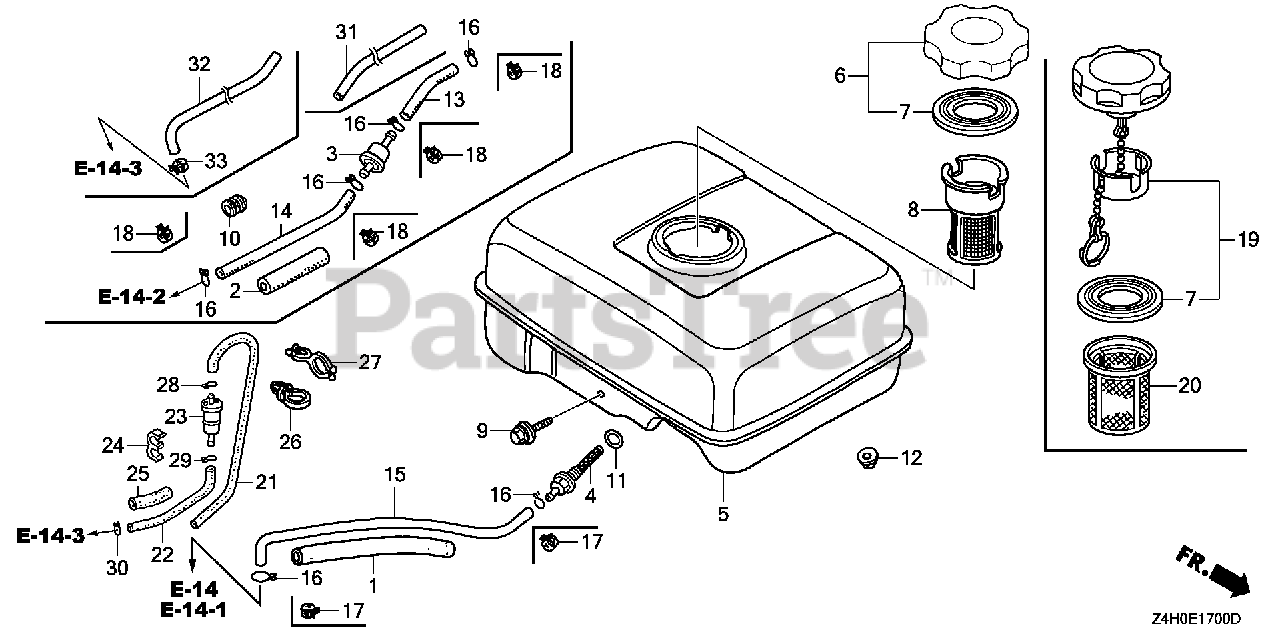

FUEL TANK (1) Parts Diagram

  • Title

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM) (Honda Code 3683646).

$5.49

$

In Stock, Qty 12

0

4

Honda 16955-ZE1-010

SEE PART DETAILS - PRI; JOINT, FUEL TANK

$8.99

$

In Stock, Qty 20+

0

5

Honda 17510-Z0S-010ZB

TANK, FUEL *NH31* (MCKINLEY WHITE)

$

$

Not available

6

Honda 17620-Z0T-813

CAP, FUEL FILLER (CHROME PLATED)(RADICON)
(Superseded to 17620-Z1T-801)

Note: Use up to Engine SN 1120058.

$21.99

$

In Stock, only 1 left!

0

7

Honda 17631-Z0T-801

GASKET, FUEL FILLER CAP (Honda Code 7346745).

Note: Use up to Engine SN 1188057.

$0.99

$

In Stock, Qty 8

0

7

Honda 17631-Z0T-801

GASKET, FUEL FILLER CAP (Honda Code 7346745).

Note: Use from Engine SN 1206681.

$0.99

$

In Stock, Qty 8

0

7

Honda 17631-Z4H-800

GASKET, FUEL FILLER CAP (39X62X3)

Note: Use from Engine SN 1188058 to 1206680.

$1.49

$

In Stock, Qty 6

0

9

Honda 90004-ZH7-003

SEE PART DETAILS - PRI; BOLT, FLANGE (6X29) (Honda Code 6779540).

$1.49

$

In Stock, Qty 7

0

11

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (14MM) (ARAI) Use up to Engine SN 2949254.

$3.99

$

In Stock, Qty 20+

0

11

Honda 91353-671-004

SEE PART DETAILS - SUP; O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$3.99

$

In Stock, Qty 20+

0

12

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

15

Honda 91424-Z4F-802

SEE PART DETAILS - PRI; TUBE, FUEL (4.5X140) (FKM)
(Superseded to 91424-Z4F-804)

Note: Use from Engine SN 1038090.

$8.49

$

In Stock, only 1 left!

0

15

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (Honda Code 5137104). (4.5X140)

Note: Use up to Engine SN 1038089.

$54.99

$

In Stock, only 1 left!

0

16

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

Note: Use up to Engine SN 1038089.

$2.49

$

In Stock, Qty 20+

0

17

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

Note: Use from Engine SN 1038090.

$2.99

$

In Stock, only 4 left!

0

19

Honda 17620-Z4H-000

SEE PART DETAILS - SUP; CAP, FUEL FILLER
(Superseded to 17620-Z4H-900)

Note: Use from Engine SN 1120059 to 1188057.

$79.99

$

Usually ships in 3-6 days

0

19

Honda 17620-Z4H-010

SEE PART DETAILS - SUP; CAP, FUEL FILLER (CHROME PLATED)
(Superseded to 17620-Z4H-900)

Note: Use from Engine SN 1120059 to 1206680.

$79.99

$

Usually ships in 3-6 days

0

19

Honda 17620-Z4H-030

SEE PART DETAILS - SUP; CAP, FUEL FILLER
(Superseded to 17620-Z4H-900)

Note: Use from Engine SN 1120059.

$79.99

$

Usually ships in 3-6 days

0

19

Honda 17620-Z4H-900

SEE PART DETAILS - PRI; CAP, FUEL FILLER

Note: Use from Engine SN 1120059.

$79.99

$

Usually ships in 3-6 days

0
