GX120 UT1 VMS4 (GCAGT) - Honda Engine, Made in Thailand (SN: GCAGT-1000001 - GCAGT-9999999) MUFFLER (2) Parts Diagram

Engine, Made in Thailand

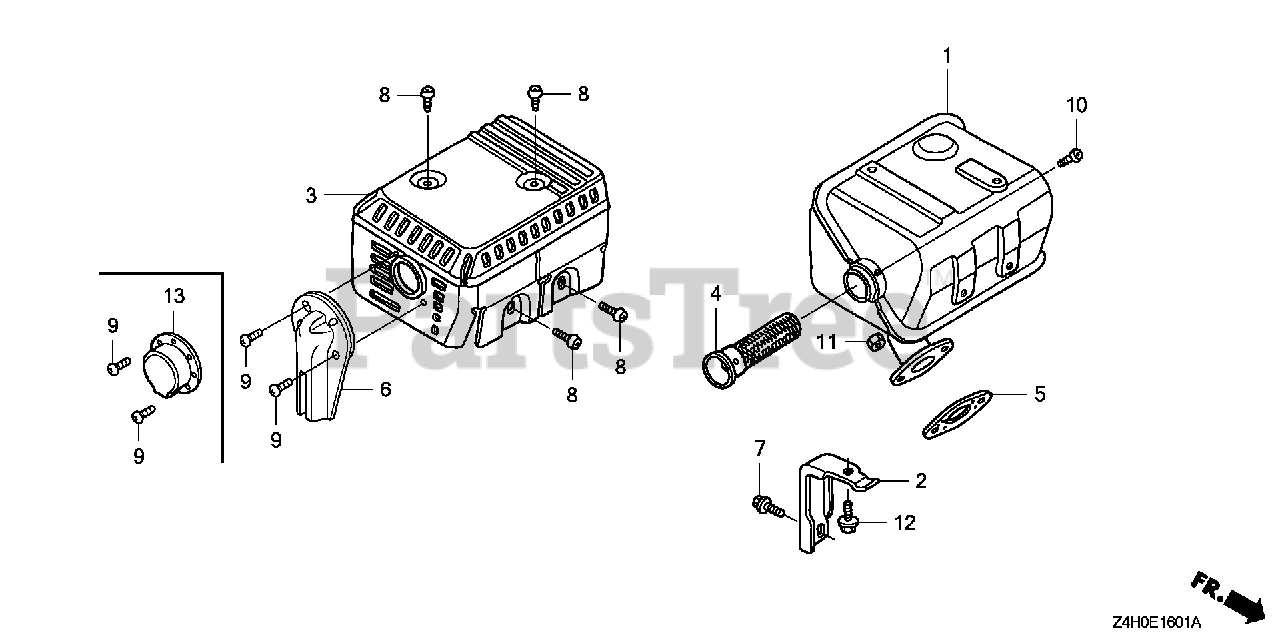

MUFFLER (2) Parts Diagram

  • Title

1

Honda 18310-ZE1-821

MUFFLER (SILENT) (Honda Code 2574135).

$131.99

$

Usually ships in 3-6 days

0

1

Honda 18310-ZH8-810

MUFFLER (ARRESTER) (SPARK ARRESTER TYPE)

Note: (Optional).

$112.99

$

In Stock, only 1 left!

0

2

Honda 18315-ZE1-000

STAY, MUFFLER (Honda Code 1540830).

$17.99

$

In Stock, only 1 left!

0

3

Honda 18320-ZF1-H52

SEE PART DETAILS - PRI; PROTECTOR, MUFFLER (SILENT)

$41.99

$

Usually ships in 3-6 days

0

4

Honda 18355-ZE1-000

ARRESTER, SPARK (Honda Code 1427780).

Note: (Optional).

$15.99

$

In Stock, only 3 left!

0

4

Honda 18355-ZE1-810

ARRESTER, SPARK (SILENT) (Honda Code 1540855).

$19.99

$

Usually ships in 3-6 days

0

5

Honda 18381-ZH8-801

SEE PART DETAILS - PRI; GASKET, MUFFLER

Note: Use up to Engine SN 1060773.

$4.49

$

In Stock, Qty 12

0

5

Honda 18381-Z0T-801

GASKET, MUFFLER

Note: Use from Engine SN 1060774.

$5.49

$

In Stock, Qty 19

0

6

Honda 18431-ZH8-W50

DEFLECTOR, MUFFLER

Note: (Optional).

$12.99

$

Usually ships in 3-6 days

0

7

Honda 90016-ZE1-000

BOLT, FLANGE (6X13) (Honda Code 1541002).

$3.99

$

Usually ships in 3-6 days

0

8

Honda 90050-ZE1-000

SCREW, TAPPING (5X8) (Honda Code 1431105).

$2.49

$

In Stock, Qty 20+

0

9

Honda 90055-ZE1-000

SCREW, TAPPING (4X6) (TO INSTALL OPTIONAL SPARK ARRESTER)

Note: (Optional).

$1.49

$

In Stock, Qty 11

0

10

Honda 90055-ZE1-000

SCREW, TAPPING (4X6) (TO INSTALL OPTIONAL SPARK ARRESTER)

Note: (Optional).

$1.49

$

In Stock, Qty 11

0

10

Honda 90056-ZL0-000

SCREW, TAPPING (4X6) (Honda Code 7227622).

$1.49

$

Usually ships in 3-6 days

0

11

Honda 94001-08000-0S

SEE PART DETAILS - PRI; NUT, HEX. (8MM) (Honda Code 0167338).

$1.99

$

In Stock, Qty 10

0

12

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0
