GX120 UT1 QJG2 (GCAGT) - Honda Engine, Made in Thailand (SN: GCAGT-1000001 - GCAGT-9999999) MUFFLER (1) Parts Diagram

Engine, Made in Thailand

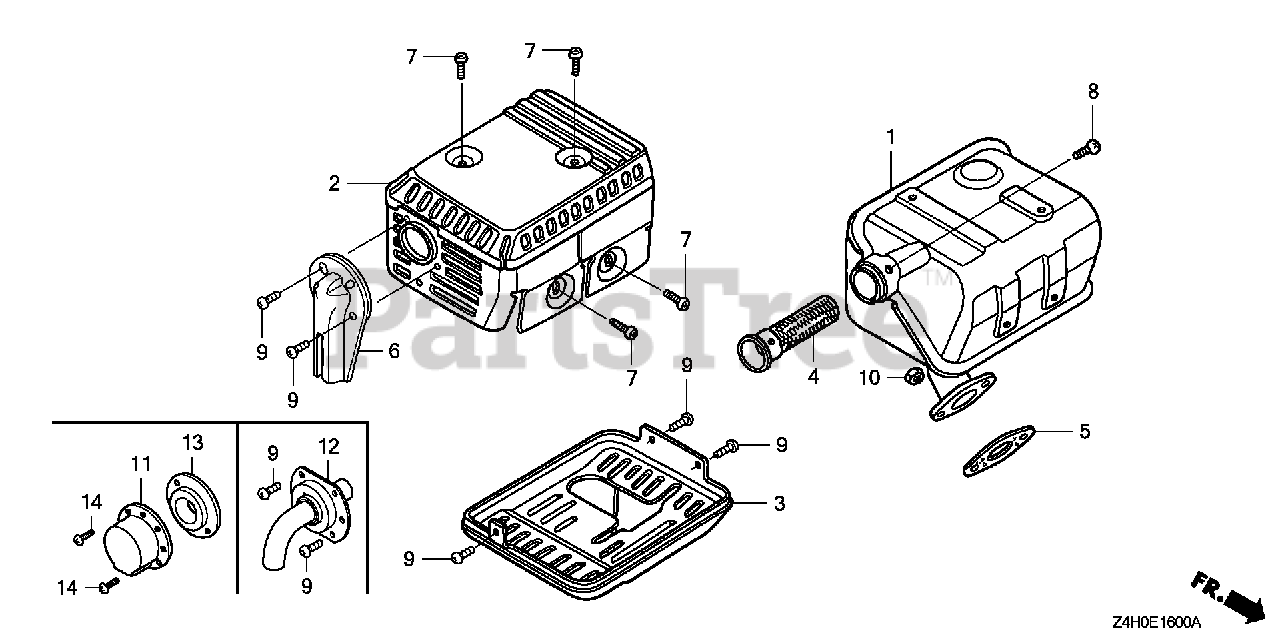

MUFFLER (1) Parts Diagram

  • Title
1

Honda 18310-ZF1-000

MUFFLER (STD)

$97.99

$

In Stock, only 2 left!

0

1

Honda 18310-ZH8-810

MUFFLER (ARRESTER)

Note: (Optional).

$112.99

$

In Stock, only 1 left!

0

2

Honda 18320-ZF1-H02

PROTECTOR, MUFFLER (STD) (BLACK)

$40.99

$

In Stock, only 2 left!

0

4

Honda 18355-ZE1-000

ARRESTER, SPARK

Note: (Optional).

$15.99

$

In Stock, only 1 left!

0

5

Honda 18381-ZH8-801

SEE PART DETAILS - PRI; GASKET, MUFFLER

Note: Use up to Engine SN 1060773.

$4.49

$

In Stock, only 1 left!

0

5

Honda 18381-Z0T-801

GASKET, MUFFLER

Note: Use from Engine SN 1060774.

$5.49

$

In Stock, Qty 20+

0

6

Honda 18431-ZH8-W50

DEFLECTOR, MUFFLER

Note: (Optional).

$12.99

$

Usually ships in 3-6 days

0

7

Honda 90050-ZE1-000

SCREW, TAPPING (5X8)

$2.49

$

In Stock, Qty 20+

0

8

Honda 90055-ZE1-000

SCREW, TAPPING (4X6)

Note: (Optional).

$1.49

$

In Stock, Qty 13

0

9

Honda 90055-ZE1-000

SCREW, TAPPING (4X6)

Note: (Optional).

$1.49

$

In Stock, Qty 13

0

10

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 10

0
