GX120 U1 UXU (GCAHK) - Honda Engine, Made in Japan (SN: GCAHK-1000001 - GCAHK-9999999) FUEL TANK (1) Parts Diagram

Engine, Made in Japan

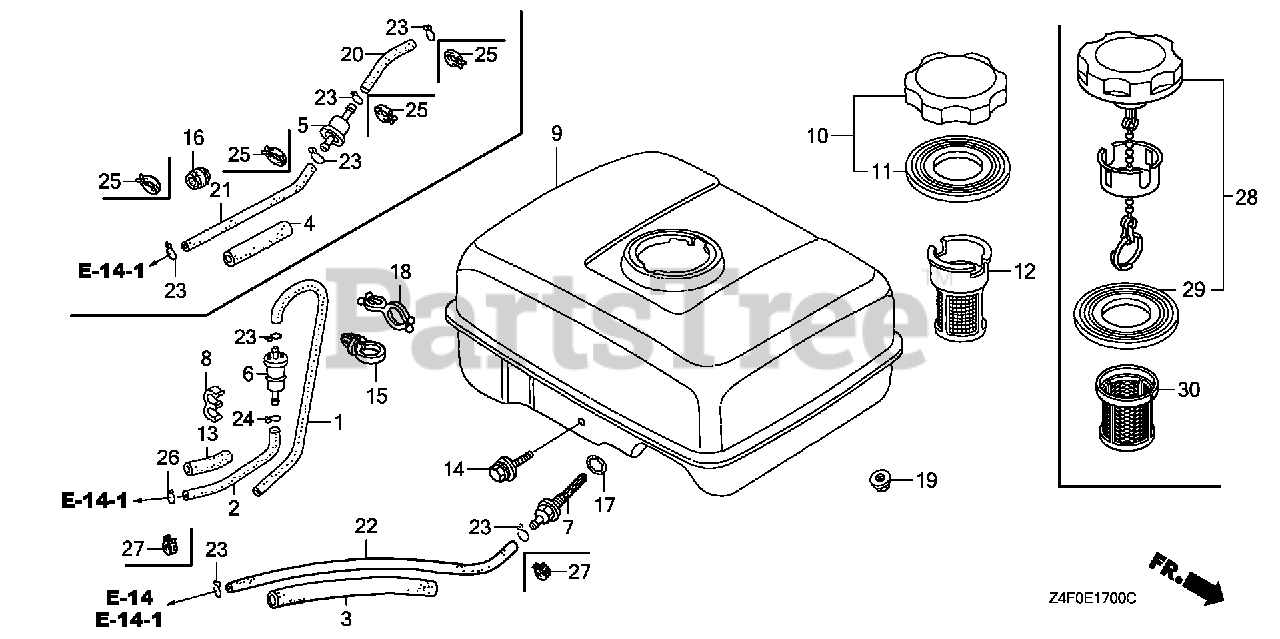

FUEL TANK (1) Parts Diagram

  • Title

3

Honda 16854-ZH8-000

RUBBER, SUPPORTER (107MM)

$5.49

$

In Stock, Qty 12

0

7

Honda 16955-ZE1-010

JOINT, FUEL TANK

$8.99

$

In Stock, Qty 20+

0

9

Honda 17510-ZE0-020ZA

TANK, FUEL *NH31* (MCKINLEY WHITE)

$51.99

$

In Stock, only 1 left!

0

10

Honda 17620-Z0T-305

SEE PART DETAILS - PRI; CAP, FUEL FILLER (CHROME PLATED)

Note: Use up to Engine SN 1085092.

$

$

Not available

11

Honda 17631-Z0T-812

GASKET, FUEL FILLER CAP (39X62X3) (TOUYOUSYA)
(Superseded to 17631-Z0T-813)

Note: Use up to Engine SN 1085092.

$3.49

$

Usually ships in 3-6 days

0

12

Honda 17672-ZE2-W01

FILTER, FUEL

Note: Use up to Engine SN 1085092.

$13.99

$

In Stock, only 3 left!

0

14

Honda 90004-ZH7-003

BOLT, FLANGE (6X29)

$1.49

$

In Stock, Qty 7

0

17

Honda 91353-671-003

O-RING (13.5X1.5) (ARAI)

$3.99

$

In Stock, Qty 20+

0

17

Honda 91353-671-004

O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$3.99

$

In Stock, Qty 20+

0

19

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

22

Honda 91424-Z4F-802

SEE PART DETAILS - PRI; TUBE, FUEL (4.5X140) (FKM)
(Superseded to 91424-Z4F-804)

Note: Use from Engine SN 1020710.

$8.49

$

In Stock, only 1 left!

0

22

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X140)

Note: Use up to Engine SN 1020709.

$54.99

$

In Stock, only 1 left!

0

23

Honda 95002-02080

CLIP, TUBE (B8)

Note: Use up to Engine SN 1020709.

$2.49

$

In Stock, Qty 20+

0

27

Honda 95002-40800-08

CLAMP, TUBE (D8)

Note: Use from Engine SN 1020710.

$2.99

$

In Stock, only 4 left!

0

28

Honda 17620-Z4H-010

SEE PART DETAILS - SUP; CAP, FUEL FILLER (CHROME PLATED)
(Superseded to 17620-Z4H-900)

Note: Use from Engine SN 1085093 to 1150470.

$79.99

$

Usually ships in 3-6 days

0

28

Honda 17620-Z4H-020

SEE PART DETAILS - SUP; CAP, FUEL FILLER
(Superseded to 17620-Z4H-900)

Note: Use from Engine SN 1085093 to 1150470.

$79.99

$

Usually ships in 3-6 days

0

28

Honda 17620-Z4H-020

SEE PART DETAILS - SUP; CAP, FUEL FILLER
(Superseded to 17620-Z4H-900)

Note: Use from Engine SN 1150471 to 1224174.

$79.99

$

Usually ships in 3-6 days

0

28

Honda 17620-Z4H-030

SEE PART DETAILS - SUP; CAP, FUEL FILLER
(Superseded to 17620-Z4H-900)

Note: Use from Engine SN 1085093 to 1150470.

$79.99

$

Usually ships in 3-6 days

0

28

Honda 17620-Z4H-030

SEE PART DETAILS - SUP; CAP, FUEL FILLER
(Superseded to 17620-Z4H-900)

Note: Use from Engine SN 1150471.

$79.99

$

Usually ships in 3-6 days

0

29

Honda 17631-Z0T-801

GASKET, FUEL FILLER CAP (39X62X3) (RADICON)

Note: Use from Engine SN 1085093 to 1143463.

$0.99

$

In Stock, Qty 8

0

29

Honda 17631-Z4H-800

GASKET, FUEL FILLER CAP (39X62X3)

Note: Use from Engine SN 1143464 to 1150470.

$1.49

$

In Stock, Qty 6

0

30

Honda 17672-Z4H-000

FILTER, FUEL

Note: Use from Engine SN 1085093.

$11.99

$

In Stock, only 4 left!

0
