GX120 U1 SKB2 (GCAHK) - Honda Engine, Made in Japan (SN: GCAHK-1000001 - GCAHK-9999999) FUEL TANK (2) Parts Diagram

Engine, Made in Japan

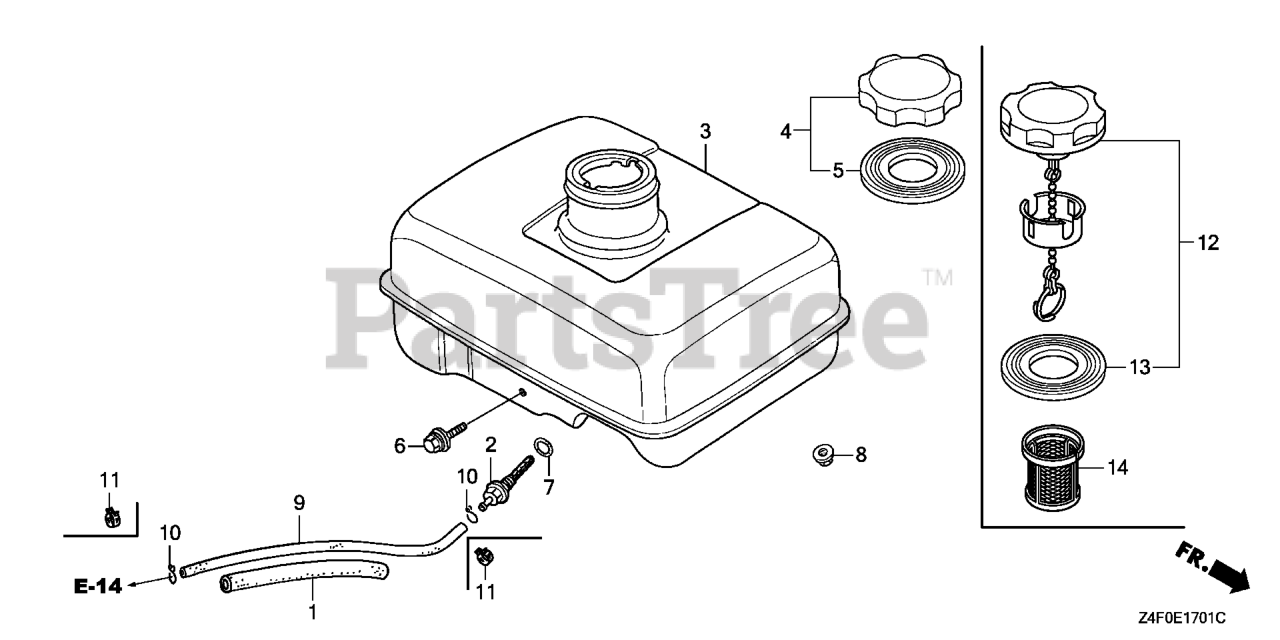

FUEL TANK (2) Parts Diagram

  • Title

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM) (Honda Code 3683646).

$4.99

$

In Stock, Qty 5

0

2

Honda 16955-ZE1-010

SEE PART DETAILS - PRI; JOINT, FUEL TANK

$8.99

$

In Stock, Qty 9

0

3

Honda 17510-ZK7-U20ZD

TANK, FUEL *NH1* (BLACK)

$189.99

$

Usually ships in 3-6 days

0

6

Honda 90004-ZH7-003

SEE PART DETAILS - PRI; BOLT, FLANGE (6X29) (Honda Code 6779540).

$1.49

$

In Stock, Qty 7

0

7

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (14MM) (ARAI) Use up to Engine SN 2949254.

$3.99

$

In Stock, Qty 13

0

8

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

9

Honda 91424-Z4F-802

SEE PART DETAILS - PRI; TUBE, FUEL (4.5X140) (FKM)
(Superseded to 91424-Z4F-803)

$6.99

$

Usually ships in 3-6 days

0

9

Honda 91424-Z4F-803

TUBE, FUEL (4.5X140)

$6.99

$

Usually ships in 3-6 days

0

9

Honda 91424-Z4F-804

TUBE, FUEL (4.5X140)

$7.99

$

In Stock, only 1 left!

0

11

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

$2.99

$

In Stock, Qty 10

0

12

Honda 17620-Z4H-800

SEE PART DETAILS - SUP; CAP, FUEL FILLER
(Superseded to 17620-Z4H-801)

$41.99

$

Usually ships in 3-6 days

0

12

Honda 17620-Z4H-801

SEE PART DETAILS - PRI; CAP, FUEL FILLER

$41.99

$

Usually ships in 3-6 days

0

13

Honda 17631-Z0T-801

GASKET, FUEL FILLER CAP (Honda Code 7346745).

$0.99

$

In Stock, Qty 10

0

14

Honda 17672-Z4H-000

FILTER, FUEL (FROM 1204807)

$11.99

$

In Stock, Qty 5

0
