GX120 U1 SAD4 (GCAHK) - Honda Engine, Made in Japan (SN: GCAHK-1000001 - GCAHK-9999999) CONTROL (4) Parts Diagram

Engine, Made in Japan

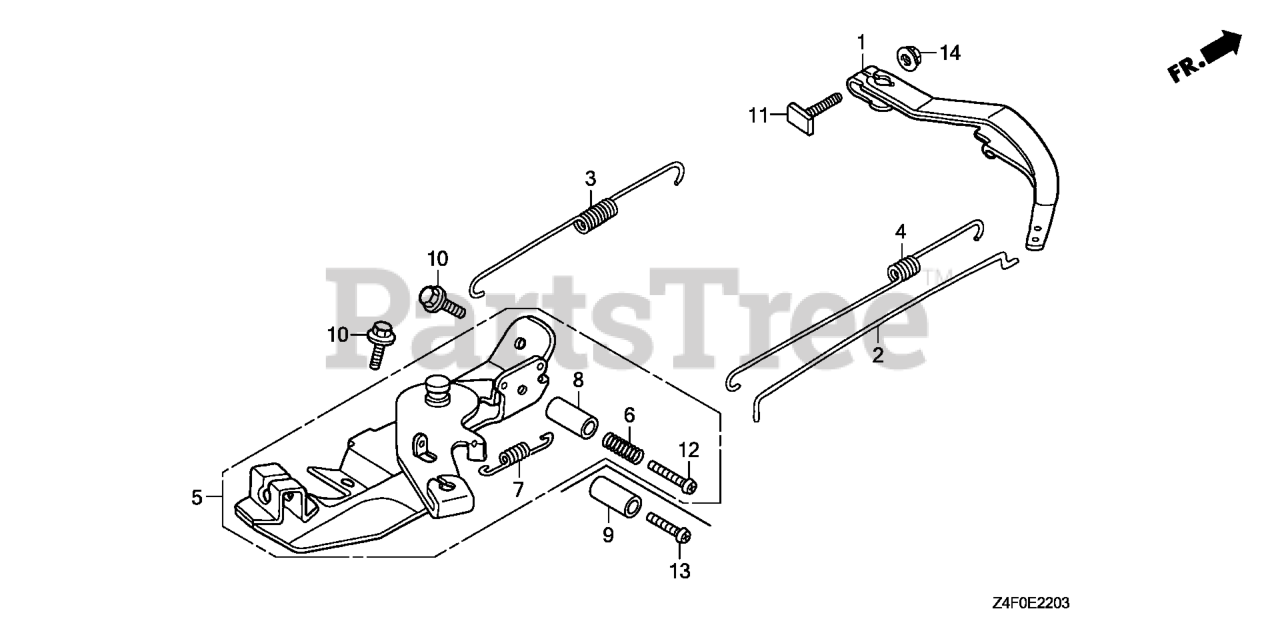

CONTROL (4) Parts Diagram

  • Title

1

Honda 16551-ZE0-010

SEE PART DETAILS - PRI; ARM, GOVERNOR (Honda Code 1950609).

$15.99

$

Usually ships in 3-6 days

0

2

Honda 16555-ZE0-000

ROD, GOVERNOR (Honda Code 1427301).

$6.49

$

Usually ships in 3-6 days

0

3

Honda 16561-733-010

SPRING, GOVERNOR

$6.99

$

Usually ships in 3-6 days

0

4

Honda 16562-ZE0-020

SPRING, THROTTLE RETURN (Honda Code 1961408).

$4.49

$

In Stock, only 1 left!

0

5

Honda 16570-ZK7-A00

CONTROL ASSY.

$55.99

$

Usually ships in 3-6 days

0

6

Honda 16584-883-300

SPRING, CONTROL ADJUSTING Use from Engine SN 2327377.

$4.99

$

In Stock, Qty 7

0

7

Honda 16592-ZE1-810

SPRING, CABLE RETURN (Honda Code 1445774).

$2.49

$

In Stock, only 3 left!

0

8

Honda 16599-ZG1-M10

COLLAR, STOPPER (Honda Code 4755252).

$3.99

$

Usually ships in 3-6 days

0

9

Honda 16599-ZG1-M10

COLLAR, STOPPER (Honda Code 4755252).

Note: (Optional)

$3.99

$

Usually ships in 3-6 days

0

10

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

11

Honda 90015-ZE5-010

SEE PART DETAILS - PRI; BOLT, GOVERNOR ARM (Honda Code 2418671).

$3.49

$

In Stock, only 3 left!

0

12

Honda 90016-ZE7-W00

SCREW, RECESSED (5X28)

$2.99

$

Usually ships in 3-6 days

0

13

Honda 90016-ZG9-N30

SCREW, RECESSED (5X25) (Honda Code 4755427).

Note: (Optional)

$2.49

$

Usually ships in 3-6 days

0

14

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0
