GX120 U1 LXM2 (GCAHK) - Honda Engine, Made in Japan (SN: GCAHK-1000001 - GCAHK-9999999) FUEL TANK (1) Parts Diagram

Engine, Made in Japan

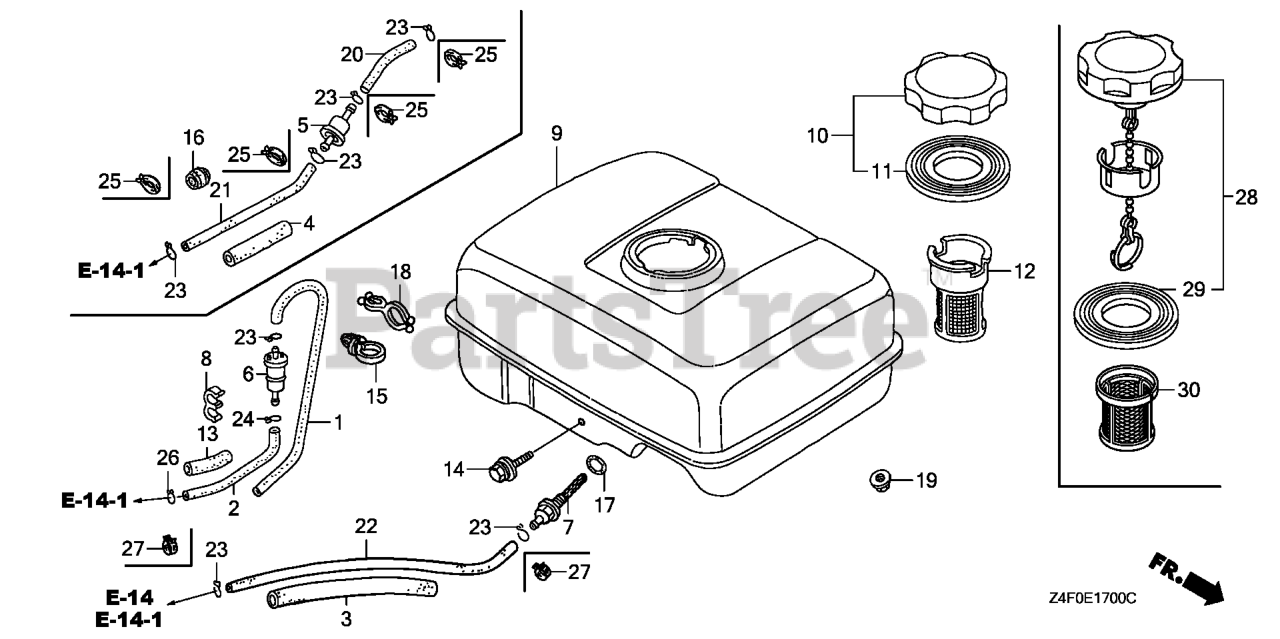

FUEL TANK (1) Parts Diagram

  • Title

3

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM) (Honda Code 3683646).

$4.99

$

In Stock, Qty 14

0

7

Honda 16955-ZE1-010

SEE PART DETAILS - PRI; JOINT, FUEL TANK

$8.99

$

In Stock, Qty 20+

0

9

Honda 17510-ZE0-020ZA

SEE PART DETAILS - PRI; TANK, FUEL *NH31* (MCKINLEY WHITE) (Honda Code 3695236).

$49.99

$

In Stock, only 1 left!

0

14

Honda 90004-ZH7-003

SEE PART DETAILS - PRI; BOLT, FLANGE (6X29) (Honda Code 6779540).

$1.49

$

In Stock, Qty 7

0

17

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (14MM) (ARAI) Use up to Engine SN 2949254.

$3.99

$

In Stock, Qty 20+

0

19

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

22

Honda 91424-Z4F-802

SEE PART DETAILS - PRI; TUBE, FUEL (4.5X140) (FKM)
(Superseded to 91424-Z4F-803)

$6.99

$

Usually ships in 3-6 days

0

22

Honda 91424-Z4F-803

TUBE, FUEL (4.5X140)

$6.99

$

Usually ships in 3-6 days

0

22

Honda 91424-Z4F-804

TUBE, FUEL (4.5X140)

$7.99

$

In Stock, only 1 left!

0

27

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

$2.99

$

In Stock, Qty 6

0

28

Honda 17620-Z4H-020

SEE PART DETAILS - SUP; CAP, FUEL FILLER
(Superseded to 17620-Z4H-900)

Note: Use up to Engine SN 1224174.

$69.99

$

Usually ships in 3-6 days

0

28

Honda 17620-Z4H-900

SEE PART DETAILS - PRI; CAP, FUEL FILLER

$69.99

$

Usually ships in 3-6 days

0

29

Honda 17631-Z0T-801

GASKET, FUEL FILLER CAP (Honda Code 7346745).

$0.99

$

In Stock, Qty 8

0

30

Honda 17672-Z4H-000

FILTER, FUEL (FROM 1204807)

$11.99

$

In Stock, Qty 5

0
