GX120 U1 KRF4 (GCAHK) - Honda Engine, Made in Japan (SN: GCAHK-1000001 - GCAHK-9999999) REDUCTION (2) Parts Diagram

Engine, Made in Japan

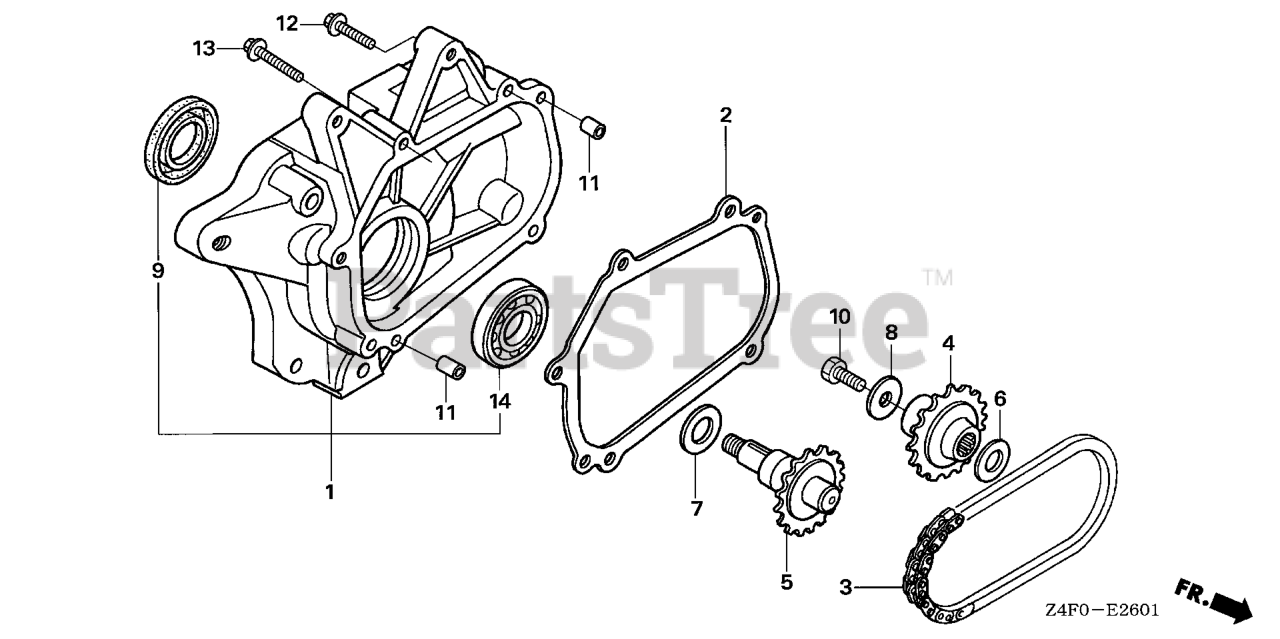

REDUCTION (2) Parts Diagram

  • Title

1

Honda 11500-ZK7-V00

COVER ASSY., CHAIN CASE

$224.99

$

Usually ships in 3-6 days

0

2

Honda 11521-ZK7-V00

GASKET, CHAIN CASE COVER

$16.99

$

Usually ships in 3-6 days

0

3

Honda 14411-ZK7-V01

CHAIN, P.T.O. DRIVE

$42.99

$

Usually ships in 3-6 days

0

4

Honda 23121-ZK7-V00

SPROCKET, DRIVE (17T)

$72.99

$

Usually ships in 3-6 days

0

5

Honda 23151-ZK7-V00

SHAFT, P.T.O. (16T)

$187.99

$

Usually ships in 3-6 days

0

6

Honda 90454-428-000

SEE PART DETAILS - PRI; WASHER, THRUST (20X1.00)

$3.49

$

Usually ships in 3-6 days

0

7

Honda 90456-ZE1-000

SPRING, THRUST (Honda Code 2946226).

$5.49

$

Usually ships in 3-6 days

0

8

Honda 90471-ZE1-610

WASHER (8MM) (Honda Code 1904366).

$5.49

$

Usually ships in 3-6 days

0

9

Honda 91201-ZG9-U71

SEE PART DETAILS - PRI; OIL SEAL (25X38X7) (Honda Code 5230073).

$4.99

$

In Stock, Qty 7

0

9

Honda 91252-888-003

SEE PART DETAILS - SUP; OIL SEAL (25X38X7) (ARAI) (Honda Code 0671628).
(Superseded to 91201-ZG9-U71)

$4.99

$

In Stock, Qty 7

0

10

Honda 92101-08025-0A

SEE PART DETAILS - PRI; BOLT, HEX. (8X25) (Honda Code 2651537).

$2.49

$

In Stock, Qty 6

0

11

Honda 94303-08140

PIN C, DOWEL (8X14)

$2.99

$

Usually ships in 3-6 days

0

12

Honda 95701-08035-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35) (Honda Code 2724029).

$2.99

$

In Stock, only 3 left!

0

13

Honda 95701-08055-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X55) (Honda Code 2774438).

$3.49

$

In Stock, only 2 left!

0

14

Honda 96100-60050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6005)

$14.99

$

Usually ships in 3-6 days

0
