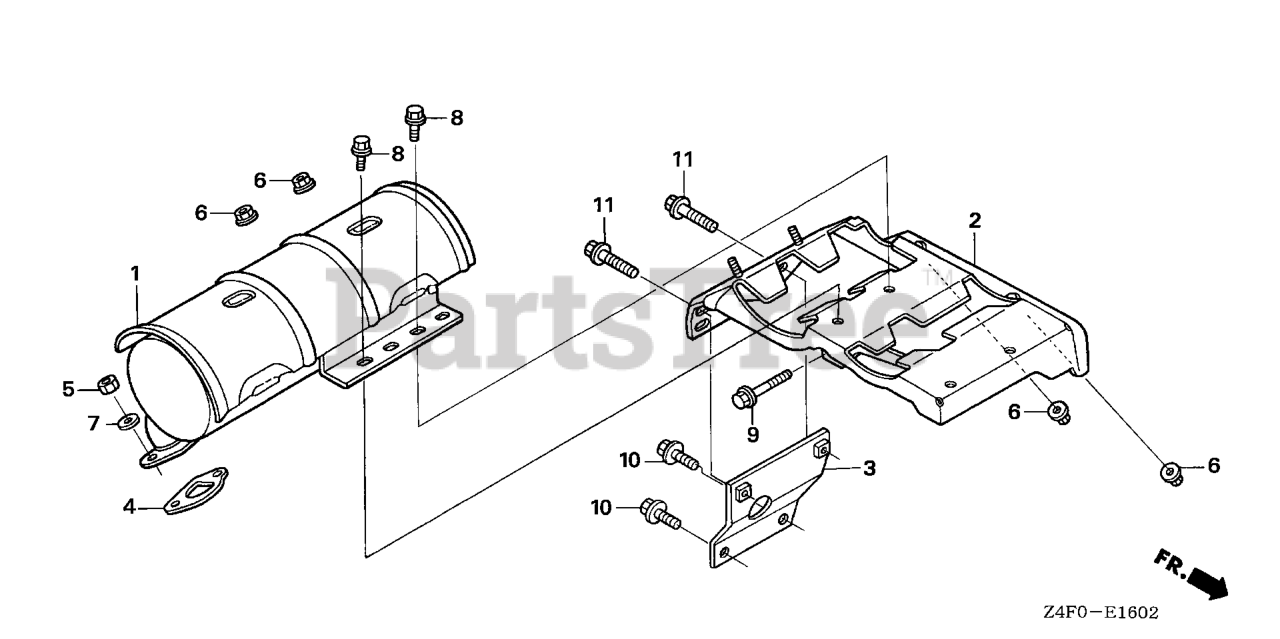

GX120 U1 KRF4 (GCAHK) - Honda Engine, Made in Japan (SN: GCAHK-1000001 - GCAHK-9999999) MUFFLER (3) Parts Diagram
Engine, Made in Japan
MUFFLER (3) Parts Diagram
Honda 18310-ZK7-V01
MUFFLER
$235.99
$
Usually ships in 3-6 days
Honda 18338-ZK7-V01
STAY, MUFFLER
$118.99
$
Usually ships in 3-6 days
Honda 18381-ZH8-801
SEE PART DETAILS - PRI; GASKET, MUFFLER
$4.49
$
In Stock, Qty 12
Honda 94001-08000-0S
SEE PART DETAILS - PRI; NUT, HEX. (8MM) (Honda Code 0167338).
$1.99
$
In Stock, Qty 10
Honda 94050-06000
SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).
$0.99
$
In Stock, Qty 20+
Honda 94103-08700
WASHER, PLAIN (8MM)
$1.49
$
Usually ships in 3-6 days
Honda 95701-06016-00
SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) Use from Engine SN 2056820.
$2.49
$
In Stock, Qty 20+
Honda 95701-06025-00
SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) (Honda Code 2105831).
$2.49
$
In Stock, Qty 8
Honda 95701-08020-00
SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) Use up to Engine SN 1609606.
$2.49
$
In Stock, only 1 left!
