GX120 U1 AR (GCAHK) - Honda Engine, Made in Japan (SN: GCAHK-1000001 - GCAHK-9999999) AIR CLEANER (5) Parts Diagram

Engine, Made in Japan

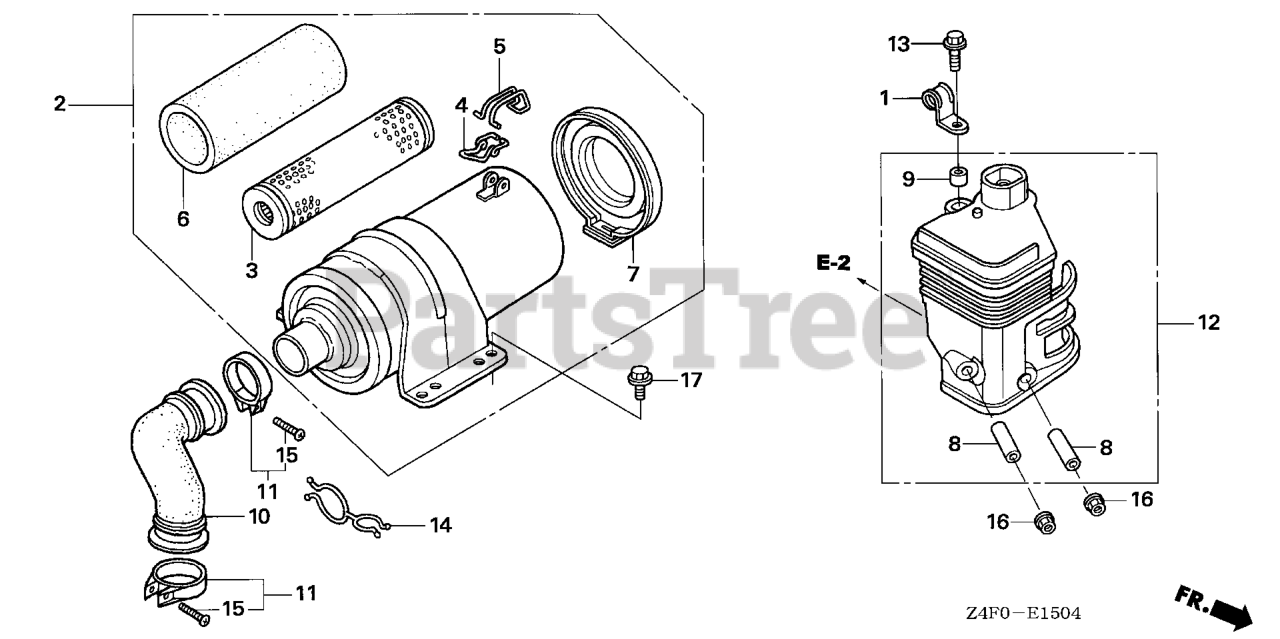

AIR CLEANER (5) Parts Diagram

  • Title

1

Honda 16106-KW7-900

CLIP B, TUBE

$3.99

$

Usually ships in 3-6 days

0

2

Honda 17200-ZK7-V02

SEE PART DETAILS - PRI; AIR CLEANER ASSY.

$97.99

$

Usually ships in 3-6 days

0

3

Honda 17210-ZK7-V01

ELEMENT, AIR CLEANER

$19.99

$

Usually ships in 3-6 days

0

4

Honda 17216-PM4-300

CLIP A, WIRE

$4.49

$

Usually ships in 3-6 days

0

5

Honda 17217-PM4-300

CLIP B, WIRE

$7.99

$

Usually ships in 3-6 days

0

6

Honda 17218-ZK7-V01

FILTER (OUTER)

$7.49

$

Usually ships in 3-6 days

0

7

Honda 17230-ZK7-V01

COVER, AIR CLEANER

$39.99

$

Usually ships in 3-6 days

0

8

Honda 17238-ZE7-010

COLLAR, AIR CLEANER Use from Engine SN 1786085.

$4.99

$

Usually ships in 3-6 days

0

9

Honda 17239-ZE1-000

COLLAR B, AIR CLEANER (Honda Code 1427533).

$4.99

$

In Stock, Qty 7

0

10

Honda 17251-ZE0-S10

TUBE, AIR CLEANER CONNECTING

$19.99

$

Usually ships in 3-6 days

0

11

Honda 17255-758-000

BAND, A/CLNR TUBE

$7.49

$

Usually ships in 3-6 days

0

12

Honda 17410-ZE1-P31

SEE PART DETAILS - PRI; ELBOW, AIR CLEANER

$5.99

$

Usually ships in 3-6 days

0

13

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

14

Honda 91473-PA1-003

CLIP, WATER HOSE

$15.99

$

Usually ships in 3-6 days

0

15

Honda 93500-04020-0A

SEE PART DETAILS - PRI; SCREW, PAN (4X20)

$1.49

$

In Stock, Qty 10

0

16

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

17

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) Use from Engine SN 2056820.

$2.49

$

In Stock, Qty 20+

0
