GX120 T3 SJD5 (GCCHT) - Honda Engine, Made in Thailand (SN: GCCHT-1000001 - GCCHT-9999999) FUEL TANK Parts Diagram

Engine, Made in Thailand

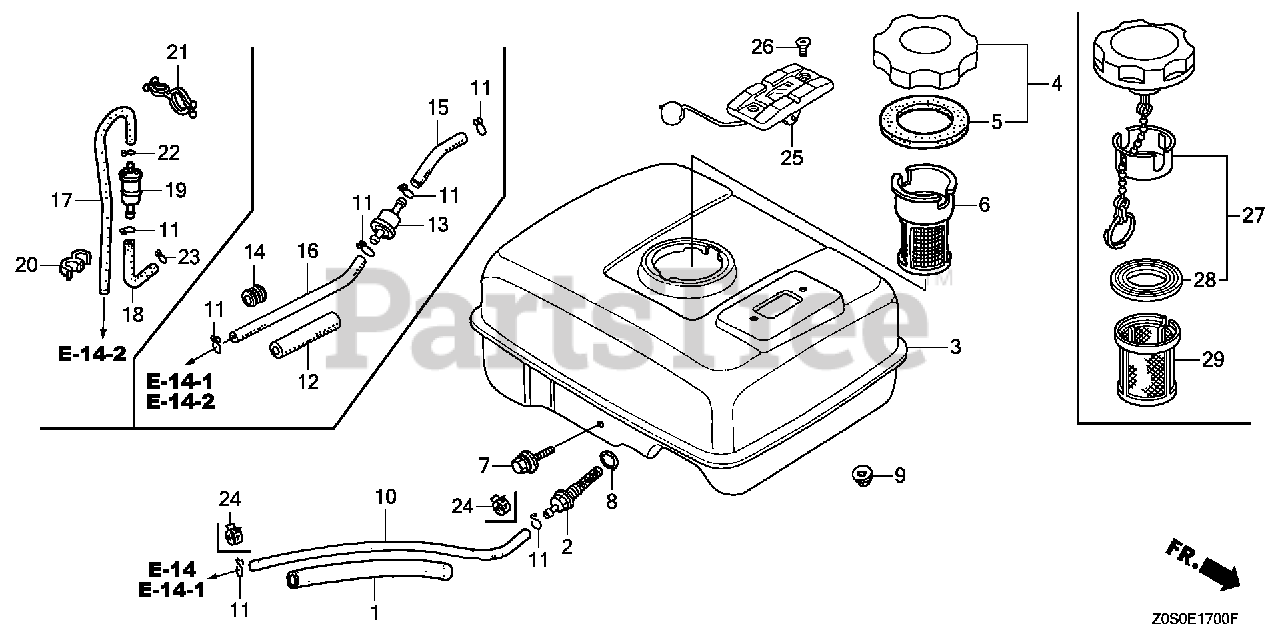

FUEL TANK Parts Diagram

  • Title

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM) (Honda Code 3683646).

$5.49

$

In Stock, Qty 12

0

2

Honda 16955-ZE1-010

SEE PART DETAILS - PRI; JOINT, FUEL TANK

$8.99

$

In Stock, Qty 20+

0

3

Honda 17510-Z4H-U20ZB

TANK, FUEL *NH1* (BLACK)

$226.99

$

Usually ships in 3-6 days

0

4

Honda 17620-Z0T-813

CAP, FUEL FILLER (CHROME PLATED)(RADICON)
(Superseded to 17620-Z1T-801)

$21.99

$

In Stock, only 1 left!

0

4

Honda 17620-Z1T-800

CAP, FUEL FILLER (CHROME PLATED)(TOUYOUSYA)
(Superseded to 17620-Z1T-801)

$21.99

$

In Stock, only 1 left!

0

5

Honda 17631-Z0T-801

GASKET, FUEL FILLER CAP (Honda Code 7346745).

$0.99

$

In Stock, Qty 8

0

5

Honda 17631-Z1T-800

GASKET, FUEL FILLER CAP (39X62X3) (TOUYOUSYA)

$

$

Not available

7

Honda 90004-ZH7-003

SEE PART DETAILS - PRI; BOLT, FLANGE (6X29) (Honda Code 6779540).

$1.49

$

In Stock, Qty 7

0

8

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (14MM) (ARAI) Use up to Engine SN 2949254.

$3.99

$

In Stock, Qty 20+

0

8

Honda 91353-671-004

SEE PART DETAILS - SUP; O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$3.99

$

In Stock, Qty 20+

0

9

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

10

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (Honda Code 5137104). (4.5X140)

$54.99

$

In Stock, only 1 left!

0

11

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

3

Honda 17510-Z4H-U20ZC

TANK, FUEL *NH31* (MCKINLEY WHITE)

$

$

Currently unavailable
