GX120 T1 WKT2 (GCAAT) - Honda Engine, Made in Thailand (SN: GCAAT-1000001 - GCAAT-9999999) AIR CLEANER (SEMI-DRY) Parts Diagram

Engine, Made in Thailand

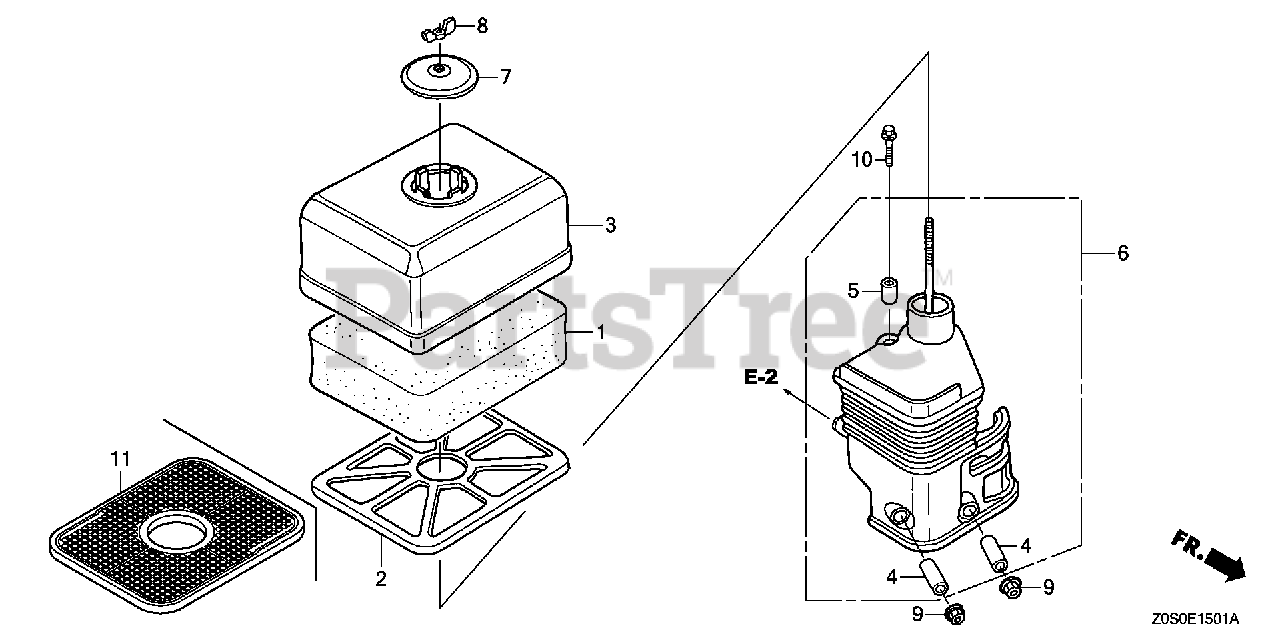

AIR CLEANER (SEMI-DRY) Parts Diagram

  • Title
1

Honda 17211-ZE1-000

ELEMENT, AIR CLEANER (SEMI-DRY)

$9.99

$

In Stock, only 1 left!

0

2

Honda 17212-ZE1-000

GRID, AIR CLEANER (SEMI-DRY)

$9.49

$

In Stock, only 1 left!

0

3

Honda 17231-ZE0-000

COVER, AIR CLEANER (SEMI-DRY)

$46.99

$

Usually ships in 3-6 days

0

4

Honda 17238-ZE0-010

COLLAR, AIR CLEANER

$4.99

$

Usually ships in 3-6 days

0

5

Honda 17239-ZE1-000

COLLAR B, AIR CLEANER

$4.99

$

In Stock, Qty 7

0

6

Honda 17410-ZE0-030

SEE PART DETAILS - SUP; ELBOW, AIR CLEANER
(Superseded to 17410-ZE0-040)

$37.99

$

In Stock, only 2 left!

0

6

Honda 17410-ZE0-040

SEE PART DETAILS - PRI; ELBOW, AIR CLEANER

$37.99

$

In Stock, only 2 left!

0

7

Honda 17421-ZE1-000

CAP, CLEANER

$12.99

$

In Stock, only 4 left!

0

8

Honda 90325-044-000

NUT, TOOL BOX SETTING

$5.49

$

In Stock, Qty 20+

0

9

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

10

Honda 95701-06020-00

BOLT, FLANGE (6X20)

$2.49

$

In Stock, Qty 7

0
