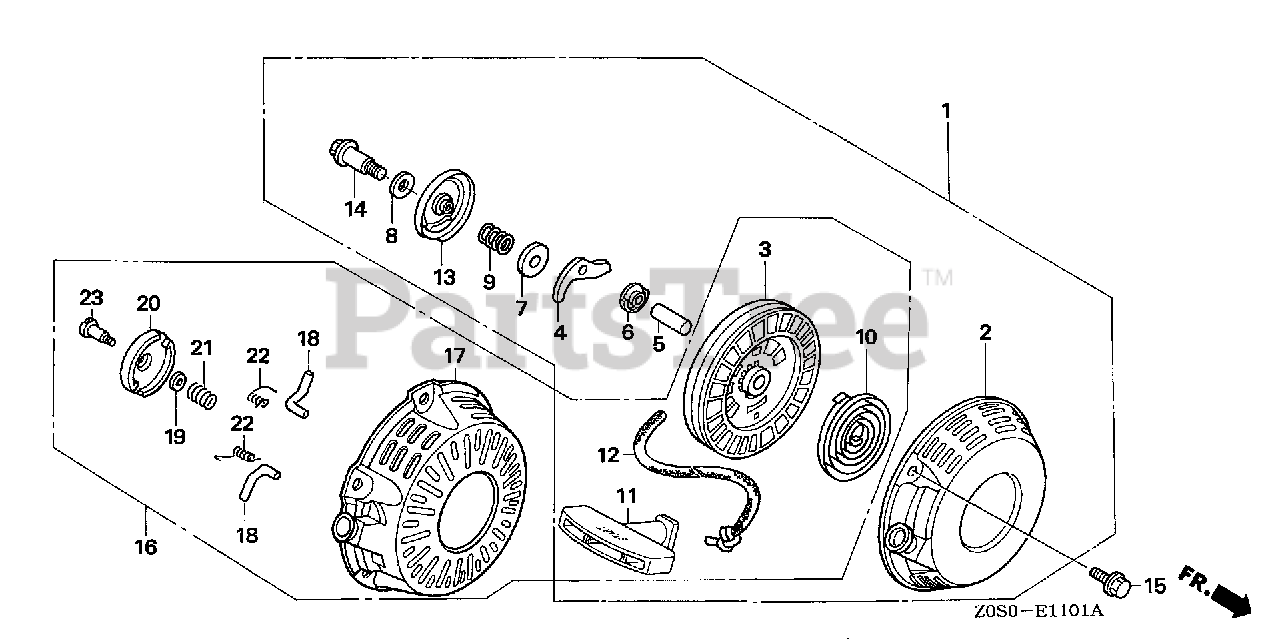

GX120 T1 TX (GCAAT) - Honda Engine, Made in Thailand (SN: GCAAT-1000001 - GCAAT-9999999) RECOIL STARTER (2) Parts Diagram

Engine, Made in Thailand

RECOIL STARTER (2) Parts Diagram

  • Title

1

Honda 28400-Z0T-800ZB

STARTER ASSY., RECOIL *R280* (POWER RED)

Note: Use up to Engine SN 1154036.

$32.99

$

Usually ships in 3-6 days

0

2

Honda 28410-Z0T-800ZB

CASE, STARTER *R280* (POWER RED)

Note: Use up to Engine SN 1154036.

$

$

Not available

3

Honda 28421-ZH8-801

REEL, RECOIL STARTER (BLACK)

Note: Use from Engine SN 1154037.

$35.99

$

Usually ships in 3-6 days

0

3

Honda 28421-883-T20

REEL, STARTER

Note: Use up to Engine SN 1154036.

$41.99

$

Usually ships in 3-6 days

0

4

Honda 28422-883-T20

RATCHET, STARTER

Note: Use up to Engine SN 1154036.

$10.99

$

Usually ships in 3-6 days

0

5

Honda 28423-883-T20

SHAFT, RATCHET

Note: Use up to Engine SN 1154036.

$16.99

$

Usually ships in 3-6 days

0

6

Honda 28429-883-T20

PLATE

Note: Use up to Engine SN 1154036.

$4.99

$

Usually ships in 3-6 days

0

7

Honda 28431-883-T20

PLATE A, FRICTION

Note: Use up to Engine SN 1154036.

$3.99

$

Usually ships in 3-6 days

0

8

Honda 28432-883-T20

PLATE B, FRICTION

Note: Use up to Engine SN 1154036.

$2.99

$

Usually ships in 3-6 days

0

9

Honda 28441-883-T20

SEE PART DETAILS - PRI; SPRING, FRICTION

Note: Use up to Engine SN 1154036.

$3.49

$

Usually ships in 3-6 days

0

10

Honda 28442-ZH8-003

SPRING, RECOIL STARTER

Note: Use from Engine SN 1154037.

$18.99

$

In Stock, Qty 10

0

10

Honda 28442-Z0T-800

SPRING, STARTER RETURN

Note: Use up to Engine SN 1154036.

$32.99

$

Usually ships in 3-6 days

0

11

Honda 28461-ZH8-003

SEE PART DETAILS - SUP; GRIP, STARTER
(Superseded to 28461-ZH8-013)

Note: Use from Engine SN 1154037.

$8.49

$

In Stock, Qty 8

0

11

Honda 28461-ZH8-013

SEE PART DETAILS - PRI; KNOB, RECOIL SRARTER

Note: Use from Engine SN 1154037.

$8.49

$

In Stock, Qty 8

0

11

Honda 28461-Z0T-800

GRIP, STARTER

Note: Use up to Engine SN 1154036.

$8.99

$

Usually ships in 3-6 days

0

12

Honda 28462-ZH8-003

ROPE, RECOIL STARTER

Note: Use from Engine SN 1154037.

$12.99

$

In Stock, only 4 left!

0

12

Honda 28462-883-T20

ROPE, RECOIL STARTER

Note: Use up to Engine SN 1154036.

$

$

Not available

13

Honda 28474-Z0T-800

COVER, STARTER REEL

Note: Use up to Engine SN 1154036.

$10.99

$

Usually ships in 3-6 days

0

14

Honda 90003-883-T20

BOLT, REEL COVER

Note: Use up to Engine SN 1154036.

$3.49

$

Usually ships in 3-6 days

0

15

Honda 90008-ZE2-003

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 20+

0

16

Honda 28400-Z0T-003ZB

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R280* (POWER RED)

Note: Use from Engine SN 1154037.

$101.99

$

In Stock, only 3 left!

0

17

Honda 28410-ZH8-003YA

SEE PART DETAILS - PRI; CASE, RECOIL STARTER *R280* (POWER RED)

Note: Use from Engine SN 1154037.

$119.99

$

Usually ships in 3-6 days

0

18

Honda 28422-ZH8-801

RATCHET, STARTER

Note: Use from Engine SN 1154037.

$6.49

$

In Stock, Qty 6

0

19

Honda 28431-ZH8-801

PLATE, FRICTION

Note: Use from Engine SN 1154037.

$5.49

$

Usually ships in 3-6 days

0

20

Honda 28433-ZH8-801

GUIDE, RATCHET

Note: Use from Engine SN 1154037.

$8.99

$

Usually ships in 3-6 days

0

21

Honda 28441-ZH8-801

SPRING, FRICTION

Note: Use from Engine SN 1154037.

$4.49

$

Usually ships in 3-6 days

0

22

Honda 28443-ZH8-801

SPRING, RETURN

Note: Use from Engine SN 1154037.

$3.49

$

In Stock, only 1 left!

0

23

Honda 90003-ZH8-801

SCREW, SETTING

Note: Use from Engine SN 1154037.

$4.49

$

In Stock, only 2 left!

0
