GX120 T1 SG24 (GCAAT) - Honda Engine, Made in Thailand (SN: GCAAT-1000001 - GCAAT-9999999) MUFFLER COVER Parts Diagram

Engine, Made in Thailand

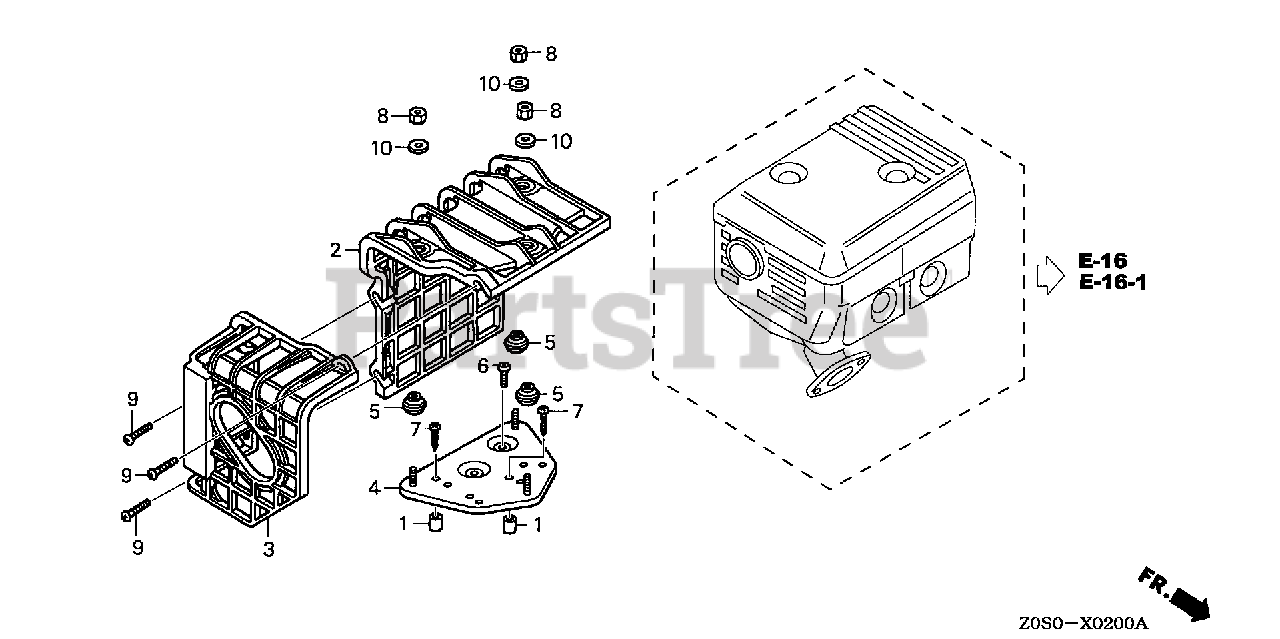

MUFFLER COVER Parts Diagram

  • Title
1

Honda 17233-896-701

COLLAR, AIR CLEANER HOUSING

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0

2

Honda 18433-ZH8-W40

COVER, MUFFLER

Note: (Optional).

$79.99

$

Usually ships in 3-6 days

0

3

Honda 18434-ZH8-W40

COVER, RR. MUFFLER

Note: (Optional).

$14.99

$

Usually ships in 3-6 days

0

4

Honda 18436-ZF6-W400

BASE, MUFFLER COVER

Note: (Optional).

$

$

Not available

5

Honda 18466-ZH8-W40

SPACER, MUFFLER COVER

Note: (Optional).

$8.49

$

Usually ships in 3-6 days

0

6

Honda 90050-ZE1-000

SCREW, TAPPING (5X8)

Note: (Optional).

$2.49

$

In Stock, Qty 20+

0

7

Honda 90050-ZH8-W40

SCREW, TAPPING (5X25)

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0

8

Honda 90302-KF9-900

NUT, HEX. (5MM)

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0

9

Honda 93891-06020-07

SCREW-WASHER (6X20)

Note: (Optional).

$1.99

$

In Stock, Qty 7

0

10

Honda 94103-05700

WASHER, PLAIN (5MM)

Note: (Optional).

$1.49

$

In Stock, only 4 left!

0
