GX120 T1 QW24 (GCAAT) - Honda Engine, Made in Thailand (SN: GCAAT-1000001 - GCAAT-9999999) RECOIL STARTER (1) Parts Diagram

Engine, Made in Thailand

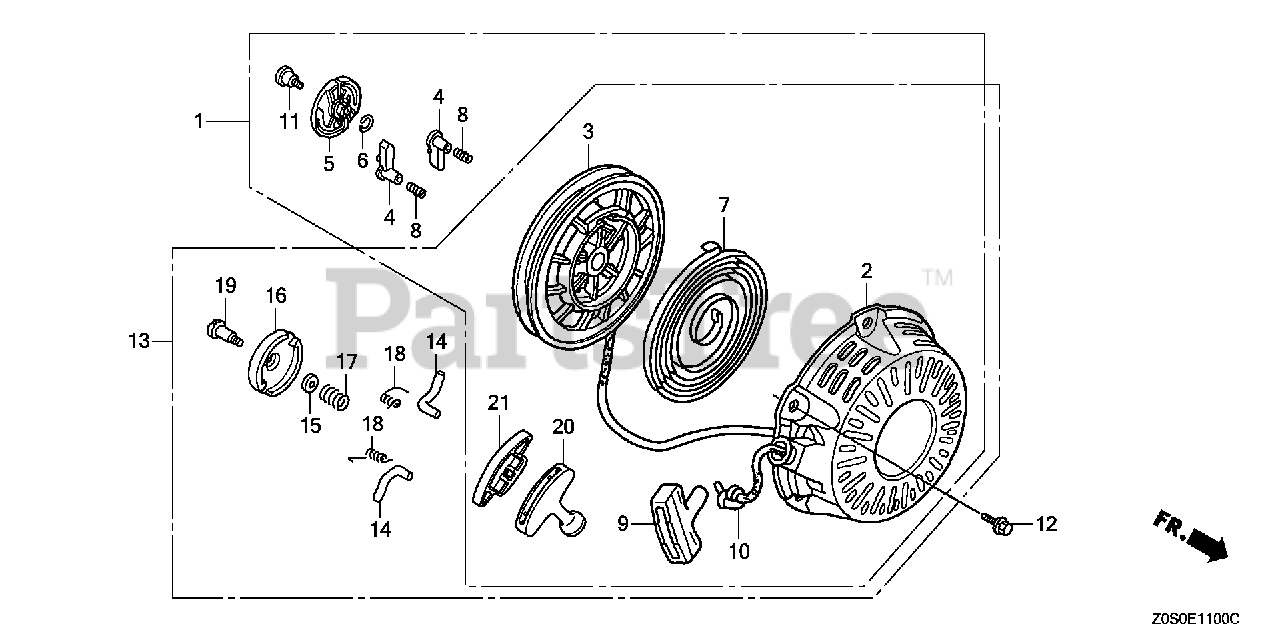

RECOIL STARTER (1) Parts Diagram

  • Title

2

Honda 28410-ZH8-003ZB

CASE, RECOIL STARTER *NH1* (BLACK)

$144.99

$

Usually ships in 3-6 days

0

2

Honda 28410-ZH8-003ZG

CASE, RECOIL STARTER *NH105* (MAT BLACK)

$127.99

$

Usually ships in 3-6 days

0

3

Honda 28421-ZH8-801

REEL, RECOIL STARTER (BLACK)

$35.99

$

Usually ships in 3-6 days

0

7

Honda 28442-ZH8-003

SPRING, RECOIL STARTER

$18.99

$

In Stock, only 4 left!

0

9

Honda 28461-ZH8-003

SEE PART DETAILS - SUP; GRIP, STARTER
(Superseded to 28461-ZH8-013)

$8.49

$

In Stock, Qty 8

0

9

Honda 28461-ZH8-013

SEE PART DETAILS - PRI; KNOB, RECOIL SRARTER

$8.49

$

In Stock, Qty 8

0

10

Honda 28462-ZH8-003

ROPE, RECOIL STARTER

$12.99

$

In Stock, only 4 left!

0

12

Honda 90008-ZE2-003

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 11

0

13

Honda 28400-ZH8-033ZB

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *NH1* (BLACK)
(Superseded to 28400-Z0T-003ZA)

$87.99

$

In Stock, only 1 left!

0

13

Honda 28400-ZH8-033ZG

STARTER ASSY., RECOIL *NH105* (MAT BLACK)

$118.99

$

Usually ships in 3-6 days

0

13

Honda 28400-Z0T-003ZA

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *NH1* (BLACK)

$87.99

$

In Stock, only 1 left!

0

14

Honda 28422-ZH8-801

RATCHET, STARTER

$6.49

$

In Stock, Qty 6

0

15

Honda 28431-ZH8-801

PLATE, FRICTION

$5.49

$

Usually ships in 3-6 days

0

16

Honda 28433-ZH8-801

GUIDE, RATCHET

$8.99

$

Usually ships in 3-6 days

0

17

Honda 28441-ZH8-801

SPRING, FRICTION

$4.49

$

Usually ships in 3-6 days

0

18

Honda 28443-ZH8-801

SPRING, RETURN

$3.49

$

In Stock, only 1 left!

0

19

Honda 90003-ZH8-801

SCREW, SETTING

$4.49

$

In Stock, only 2 left!

0
