GX120 RT2 KRS4 (GCBMT) - Honda Engine, Made in Thailand (SN: GCBMT-1000001 - GCBMT-9999999) CARBURETOR (4) Parts Diagram

Engine, Made in Thailand

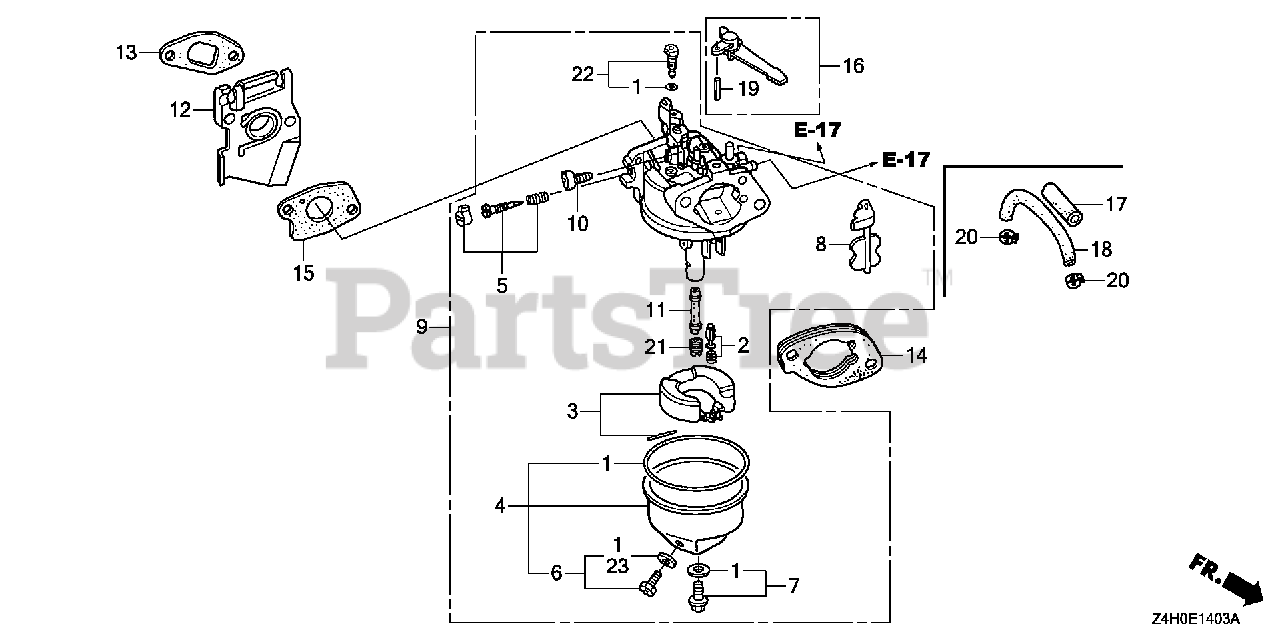

CARBURETOR (4) Parts Diagram

  • Title

1

Honda 16010-ZB1-015

GASKET SET

$18.99

$

In Stock, only 1 left!

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (SEAT NOT INCLUDED)

$28.99

$

In Stock, only 1 left!

0

3

Honda 16013-Z0S-B01

FLOAT SET

$33.99

$

In Stock, only 1 left!

0

4

Honda 16015-Z4H-U51

CHAMBER, FLOAT

$94.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZH7-W01

SCREW SET, PILOT

$20.99

$

In Stock, only 1 left!

0

6

Honda 16024-Z5T-901

SCREW SET, DRAIN

$10.99

$

Usually ships in 3-6 days

0

7

Honda 16028-Z5T-901

SCREW SET

$5.99

$

In Stock, only 2 left!

0

8

Honda 16044-ZE0-005

CHOKE SET

$37.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZCG-811

CARBURETOR ASSY. (BE62L A)

Note: Use from Engine SN 1170537.

$62.99

$

In Stock, only 1 left!

0

9

Honda 16100-Z4H-U51

CARBURETOR ASSY. (BE62J A)

Note: Use up to Engine SN 1170536.

$106.99

$

Usually ships in 3-6 days

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZH7-A50

NOZZLE, MAIN

$28.99

$

Usually ships in 3-6 days

0

12

Honda 16211-ZE0-000

INSULATOR, CARBURETOR

$19.99

$

In Stock, only 1 left!

0

13

Honda 16212-ZH7-800

GASKET, INSULATOR

$2.99

$

In Stock, only 4 left!

0

14

Honda 16220-ZE1-020

SEE PART DETAILS - PRI; SPACER, CARBURETOR

$7.99

$

In Stock, Qty 8

0

15

Honda 16221-ZH8-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

16

Honda 16610-ZE1-000

LEVER, CHOKE (STD)

$10.99

$

In Stock, only 3 left!

0

19

Honda 94305-20122

PIN, SPRING (2X12)

$2.49

$

In Stock, Qty 5

0

21

Honda 99101-ZK7-0580

SEE PART DETAILS - PRI; JET, MAIN (#58)

Note: (Optional).

$8.99

$

Usually ships in 3-6 days

0

21

Honda 99101-ZK7-0600

JET, MAIN (#60)

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

21

Honda 99101-ZK7-0620

JET, MAIN (#62)

$10.99

$

Usually ships in 3-6 days

0

22

Honda 99204-ZE0-0350

JET SET, PILOT (#35)

$22.99

$

In Stock, only 1 left!

0
