GX120 K1 WKT2/A (GC01) - Honda Engine, Made in Japan (SN: GC01-4300001 - GC01-9099999) RECOIL STARTER (1) Parts Diagram

Engine, Made in Japan

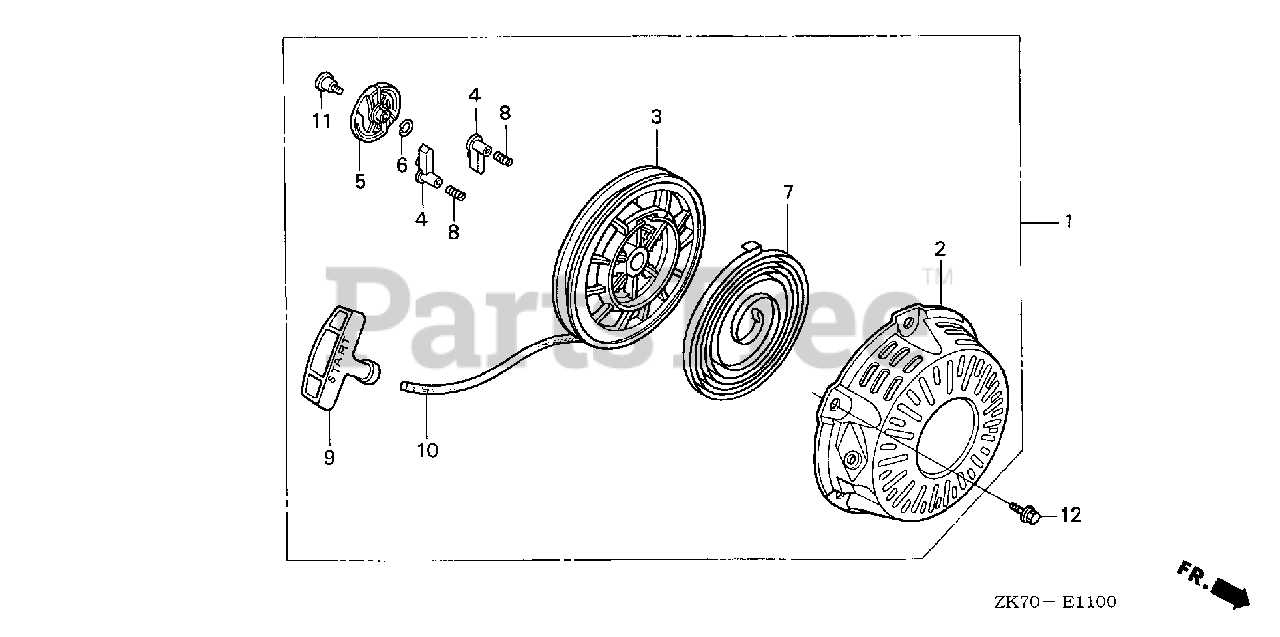

RECOIL STARTER (1) Parts Diagram

  • Title

1

Honda 28400-ZH8-013YA

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R280* (POWER RED)

Note: Use up to Engine SN 4363433.

$126.99

$

In Stock, only 4 left!

0

2

Honda 28410-ZH8-003YA

SEE PART DETAILS - PRI; CASE, RECOIL STARTER *R280* (POWER RED)

Note: Use up to Engine SN 4363433.

$119.99

$

Usually ships in 3-6 days

0

3

Honda 28420-ZH8-013

SEE PART DETAILS - PRI; REEL, RECOIL STARTER (NATURAL)

Note: Use up to Engine SN 4363433.

$44.99

$

Usually ships in 3-6 days

0

4

Honda 28422-ZH8-013

RATCHET, STARTER

Note: Use up to Engine SN 4363433.

$8.99

$

In Stock, only 1 left!

0

5

Honda 28433-ZH8-003

GUIDE, RATCHET

Note: Use up to Engine SN 4363433.

$12.99

$

Usually ships in 3-6 days

0

6

Honda 28441-ZH8-003

SPRING, FRICTION

Note: Use up to Engine SN 4363433.

$6.49

$

In Stock, only 1 left!

0

7

Honda 28442-ZH8-003

SPRING, RECOIL STARTER

Note: Use up to Engine SN 4363433.

$18.99

$

In Stock, Qty 10

0

8

Honda 28443-ZH8-003

SPRING, RETURN

Note: Use up to Engine SN 4363433.

$5.99

$

In Stock, only 1 left!

0

9

Honda 28461-ZH8-003

SEE PART DETAILS - SUP; GRIP, STARTER
(Superseded to 28461-ZH8-013)

Note: Use up to Engine SN 4363433.

$8.49

$

In Stock, Qty 8

0

9

Honda 28461-ZH8-013

SEE PART DETAILS - PRI; GRIP, STARTER

Note: Use up to Engine SN 4363433.

$8.49

$

In Stock, Qty 8

0

10

Honda 28462-ZH8-003

ROPE, RECOIL STARTER

Note: Use up to Engine SN 4363433.

$12.99

$

In Stock, only 4 left!

0

11

Honda 90003-ZH8-003

SCREW, SETTING

Note: Use up to Engine SN 4363433.

$6.99

$

Usually ships in 3-6 days

0

12

Honda 90008-ZE2-003

BOLT, FLANGE (6X10)

Note: Use up to Engine SN 4363433.

$1.99

$

In Stock, Qty 20+

0
