GX120 K1 QXG (GC01) - Honda Engine, Made in Japan (SN: GC01-2000001 - GC01-4299999) MUFFLER Parts Diagram

Engine, Made in Japan

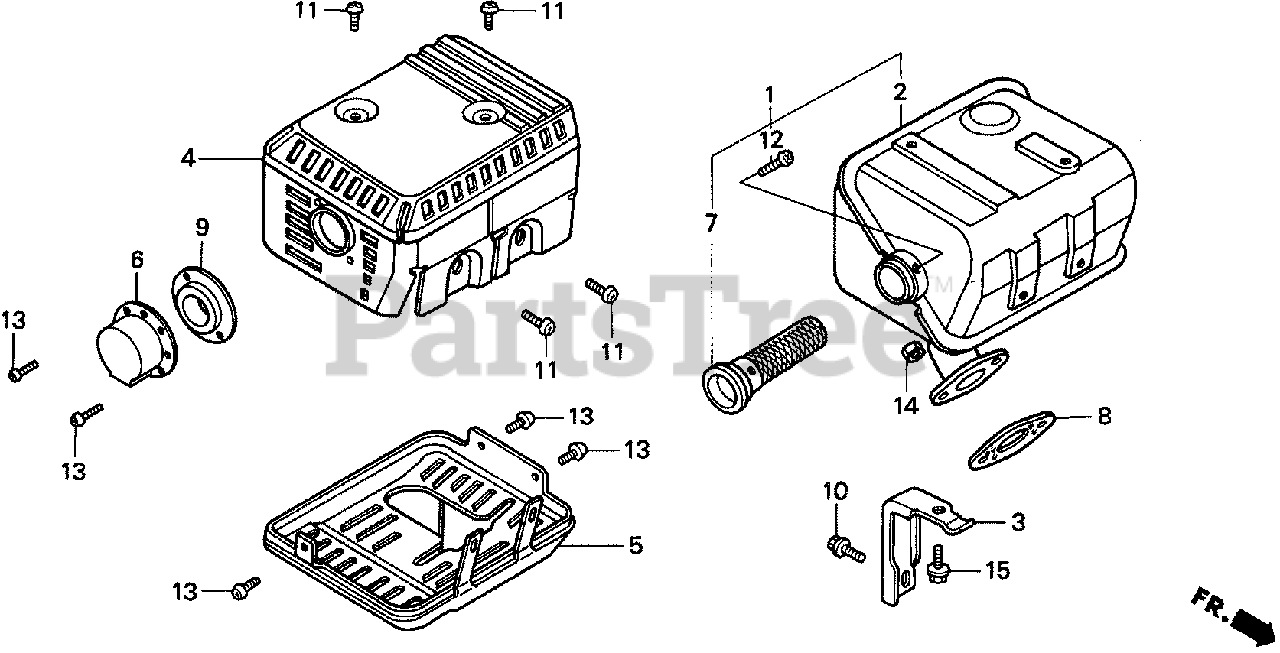

MUFFLER Parts Diagram

  • Title

2

Honda 18310-ZF1-000

MUFFLER

Note: (Honda Code 3683703).

$97.99

$

In Stock, only 2 left!

0

2

Honda 18310-ZH8-810

MUFFLER

Note: (Optional). (Honda Code 3683711).

$112.99

$

In Stock, only 1 left!

0

4

Honda 18320-ZF1-H01

PROTECTOR, MUFFLER
(Superseded to 18320-ZF1-H02)

Note: (Honda Code 4644811).

$40.99

$

In Stock, only 2 left!

0

6

Honda 18340-ZE1-010

DEFLECTOR

Note: Use up to Engine SN 2077061. (Honda Code 3440724).

$16.99

$

Usually ships in 3-6 days

0

6

Honda 18340-ZH7-U20

DEFLECTOR

Note: Use from Engine SN 2077062. (Honda Code 4130233).

$27.99

$

Usually ships in 3-6 days

0

7

Honda 18355-ZE1-000

ARRESTER, SPARK

Note: (Optional). (Honda Code 1427780).

$15.99

$

In Stock, only 1 left!

0

8

Honda 18381-ZH8-800

GASKET, MUFFLER
(Superseded to 18381-ZH8-801)

Note: (Honda Code 3683745).

$4.49

$

In Stock, only 1 left!

0

11

Honda 90050-ZE1-000

SCREW, TAPPING (5X8)

Note: (Honda Code 1431105).

$2.49

$

In Stock, Qty 20+

0

12

Honda 90055-ZE1-000

SCREW, TAPPING (4X6)

Note: (Optional). (Honda Code 1431121).

$1.49

$

In Stock, Qty 13

0

13

Honda 90055-ZE1-000

SCREW, TAPPING (4X6)

Note: (Honda Code 1431121).

$1.49

$

In Stock, Qty 13

0

14

Honda 94001-08000-0S

NUT, HEX. (8MM)

Note: (Honda Code 0167338).

$1.99

$

In Stock, Qty 10

0
