GX120 K1 QXC (GC01) - Honda Engine, Made in Japan (SN: GC01-2000001 - GC01-4299999) AIR CLEANER (CYCLONE) Parts Diagram

Engine, Made in Japan

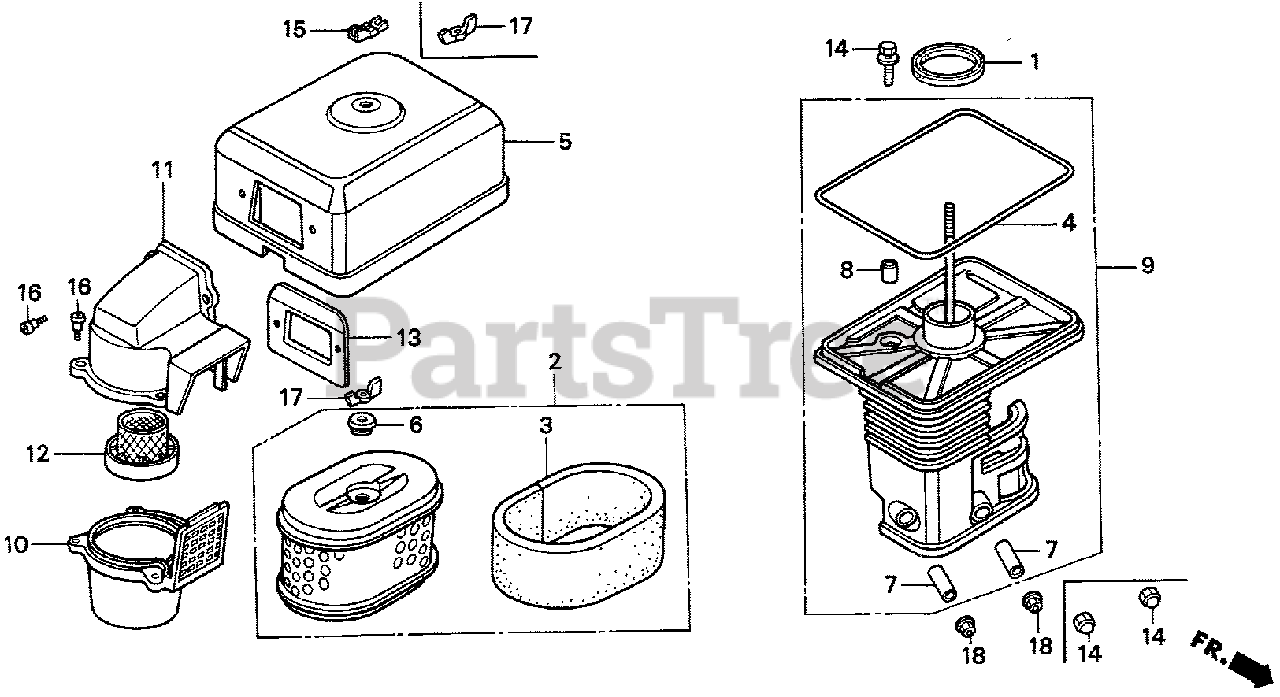

AIR CLEANER (CYCLONE) Parts Diagram

  • Title

NI

Honda 95701-06020-00

BOLT, FLANGE (6X20)

Note: (Honda Code 2105815).

$2.49

$

In Stock, Qty 6

0

1

Honda 16271-ZE1-000

GASKET, ELBOW

Note: (Honda Code 1427194).

$4.99

$

In Stock, Qty 9

0

2

Honda 17210-ZE1-505

ELEMENT, AIR CLEANER (DUAL)
(Superseded to 17210-Z4M-821)

Note: (Honda Code 5247408).

$9.99

$

In Stock, Qty 20+

0

2

Honda 17210-ZE1-822

ELEMENT, AIR CLEANER (DUAL)
(Superseded to 17210-Z4M-821)

Note: (Honda Code 2893881).

$9.99

$

In Stock, Qty 20+

0

3

Honda 17218-ZE1-505

FILTER (OUTER)
(Superseded to 17218-ZE1-821)

Note: (Honda Code 5272802).

$11.99

$

In Stock, only 1 left!

0

3

Honda 17218-ZE1-821

FILTER (OUTER) (NOT AVAILABLE)

Note: (Honda Code 2535029).

$11.99

$

In Stock, only 1 left!

0

4

Honda 17219-733-010

GASKET, AIR CLEANER COVER

Note: (Honda Code 2538437).

$6.99

$

Usually ships in 3-6 days

0

5

Honda 17230-ZE1-841

COVER, AIR CLEANER (DUAL)

Note: (Honda Code 2574044).

$31.99

$

Usually ships in 3-6 days

0

6

Honda 17232-891-000

GROMMET, AIR CLEANER

Note: (Honda Code 0999763).

$5.99

$

In Stock, Qty 15

0

7

Honda 17238-ZE0-010

COLLAR, AIR CLEANER

Note: (Honda Code 2535037).

$4.99

$

Usually ships in 3-6 days

0

8

Honda 17239-733-000

COLLAR B, AIR CLEANER

Note: (Honda Code 1493154).

$4.99

$

Usually ships in 3-6 days

0

9

Honda 17410-ZE0-840

ELBOW, AIR CLEANER
(Superseded to 17410-ZE0-841)

Note: (Honda Code 2604999).

$35.99

$

Usually ships in 3-6 days

0

10

Honda 17470-ZE1-841

CASE, PRE AIR CLEANER
(Superseded to 17470-ZE1-842)

Note: (Honda Code 2574085).

$15.99

$

In Stock, only 1 left!

0

11

Honda 17475-ZE1-841

CAP, PRE AIR CLEANER

Note: (Honda Code 2574093).

$19.99

$

In Stock, only 1 left!

0

12

Honda 17476-ZE1-841

GUIDE, PRE AIR CLEANER

Note: (Honda Code 2574101).

$10.99

$

In Stock, only 1 left!

0

13

Honda 17478-ZE1-841

PLATE, PRE AIR CLEANER

Note: (Honda Code 2574119).

$9.99

$

In Stock, only 1 left!

0

14

Honda 90201-415-000

NUT, CAP (6MM)

Note: Use up to Engine SN 2299856. (Honda Code 0670729).

$2.99

$

In Stock, Qty 9

0

15

Honda 90203-PB2-000

WINGNUT, AIR CLEANER COVER

Note: Use up to Engine SN 2185869. (Honda Code 0994855).

$10.99

$

In Stock, only 3 left!

0

15

Honda 90203-ZA0-800

WINGNUT (6MM)

Note: Use from Engine SN 2185870 to 2329087. (Honda Code 1742238).

$4.49

$

In Stock, only 2 left!

0

16

Honda 90300-GB0-900

BOLT, MUDGUARD

Note: (Honda Code 2574408).

$3.99

$

In Stock, only 4 left!

0

17

Honda 90325-044-000

WINGNUT, TOOL BOX SETTING

Note: Use up to Engine SN 2329087. (Honda Code 0127720).

$5.49

$

In Stock, Qty 20+

0

17

Honda 90325-044-000

WINGNUT, TOOL BOX SETTING

Note: Use from Engine SN 2329088. (Honda Code 0127720).

$5.49

$

In Stock, Qty 20+

0

18

Honda 94050-06000

NUT, FLANGE (6MM)

Note: Use from Engine SN 2299857. (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0
