GX120 K1 QH2 (GC01) - Honda Engine, Made in Japan (SN: GC01-2000001 - GC01-4299999) AIR CLEANER (DUAL) Parts Diagram

Engine, Made in Japan

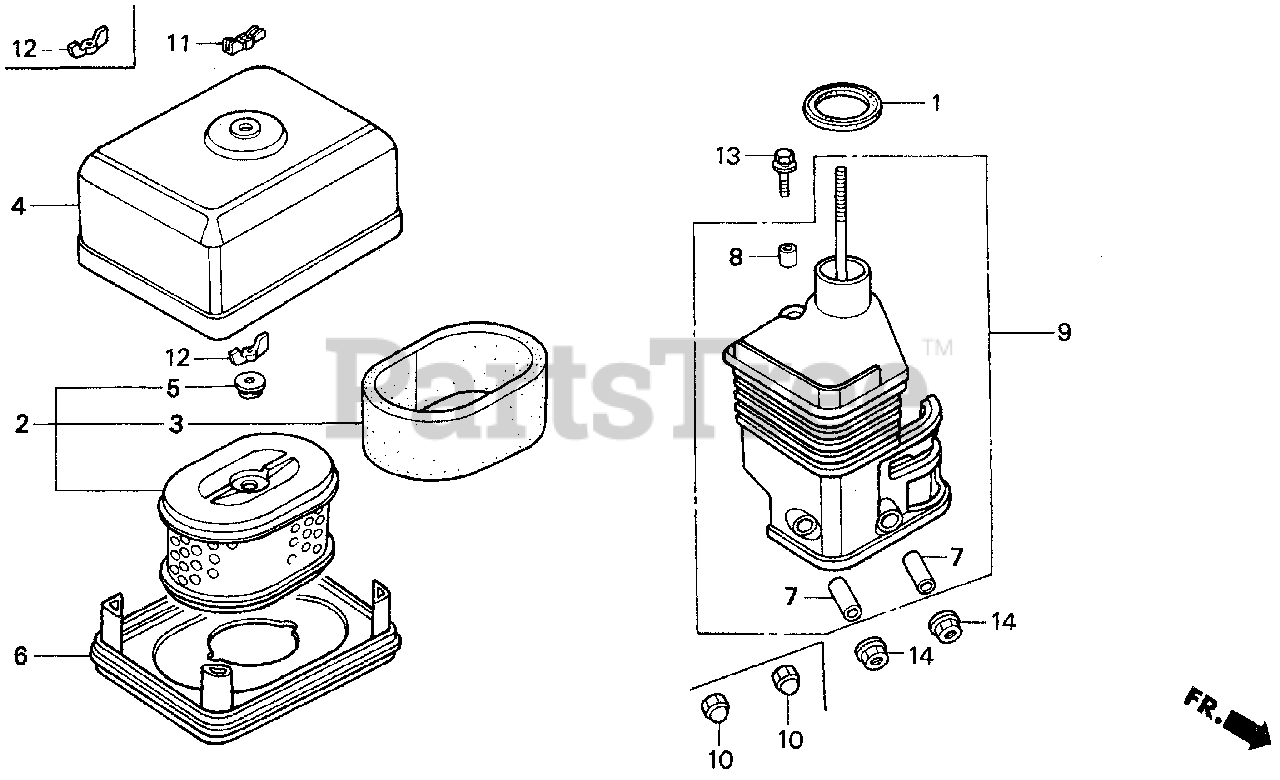

AIR CLEANER (DUAL) Parts Diagram

  • Title

1

Honda 16271-ZE1-000

GASKET, ELBOW

Note: (Honda Code 1427194).

$4.99

$

In Stock, Qty 9

0

2

Honda 17210-ZE0-505

ELEMENT, AIR CLEANER (DUAL)

Note: (Honda Code 5273032).

$13.99

$

In Stock, Qty 9

0

3

Honda 17218-ZE0-821

FILTER (OUTER)

Note: (Honda Code 2535011).

$11.99

$

In Stock, only 1 left!

0

4

Honda 17230-ZE0-820

COVER, AIR CLEANER (DUAL)

Note: (Honda Code 1540806).

$48.99

$

In Stock, only 1 left!

0

5

Honda 17232-891-000

GROMMET, AIR CLEANER

Note: (Honda Code 0999763).

$5.99

$

In Stock, Qty 15

0

7

Honda 17238-ZE0-010

COLLAR, AIR CLEANER

Note: (Honda Code 2535037).

$4.99

$

Usually ships in 3-6 days

0

8

Honda 17239-ZE1-000

COLLAR B, AIR CLEANER

Note: (Honda Code 1427533).

$4.99

$

In Stock, Qty 7

0

9

Honda 17410-ZE0-030

ELBOW, AIR CLEANER
(Superseded to 17410-ZE0-040)

Note: (Honda Code 2535052).

$38.99

$

In Stock, only 2 left!

0

10

Honda 90201-415-000

NUT, CAP (6MM)

Note: Use up to Engine SN 2299856. (Honda Code 0670729).

$2.99

$

In Stock, Qty 9

0

11

Honda 90203-ZA0-800

WINGNUT (6MM)

Note: Use up to Engine SN 2299856. (Honda Code 1742238).

$4.49

$

In Stock, only 2 left!

0

12

Honda 90325-044-000

WINGNUT, TOOL BOX SETTING

Note: Use up to Engine SN 2299856. (Honda Code 0127720).

$5.49

$

In Stock, Qty 20+

0

12

Honda 90325-044-000

WINGNUT, TOOL BOX SETTING

Note: Use from Engine SN 2299857. (Honda Code 0127720).

$5.49

$

In Stock, Qty 20+

0

13

Honda 93404-06020-08

BOLT-WASHER (6X20)

Note: Use up to Engine SN 2519854. (Honda Code 2410694).

$2.49

$

In Stock, only 2 left!

0

13

Honda 95701-06020-00

BOLT, FLANGE (6X20)

Note: Use from Engine SN 2519855. (Honda Code 2105815).

$2.49

$

In Stock, Qty 6

0

14

Honda 94050-06000

NUT, FLANGE (6MM)

Note: Use from Engine SN 2299857. (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0
