GX120 K1 QA2 (GC01) - Honda Engine, Made in Japan (SN: GC01-2000001 - GC01-4299999) CYLINDER HEAD Parts Diagram

Engine, Made in Japan

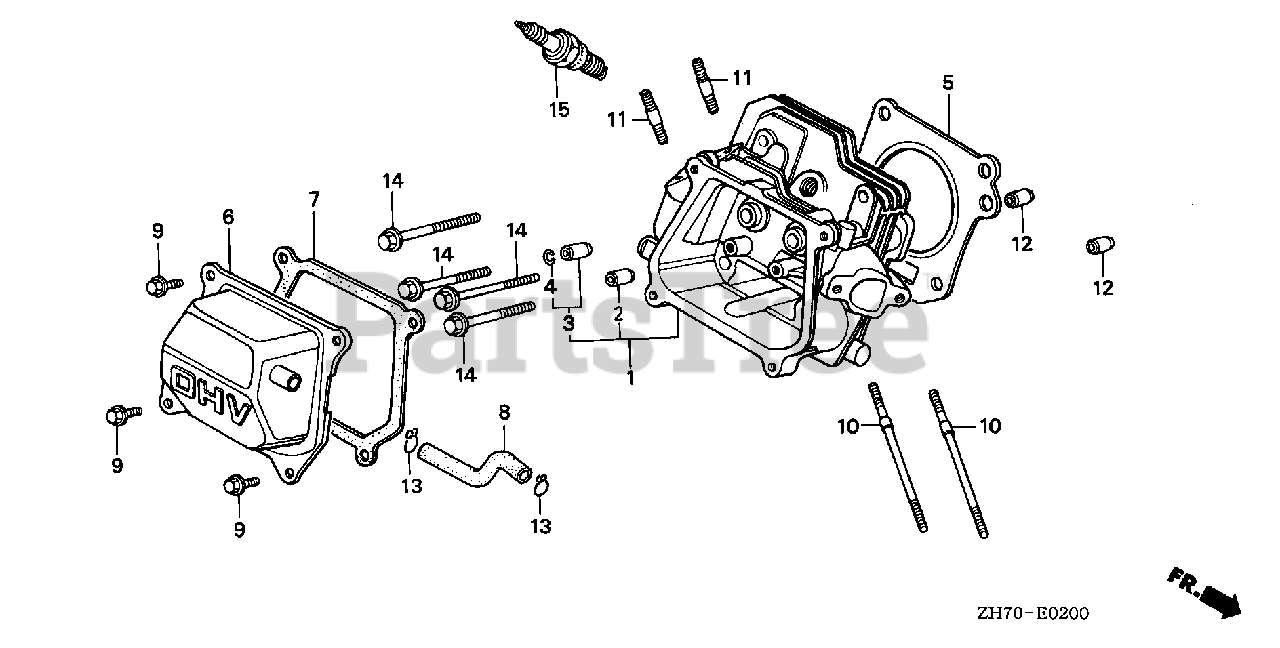

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12210-ZH7-415

CYLINDER HEAD

$238.99

$

Usually ships in 3-6 days

0

2

Honda 12204-ZE1-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OVER SIZE)

Note: (Optional).

$9.99

$

Usually ships in 3-6 days

0

3

Honda 12205-ZE1-315

GUIDE, EX. VALVE (OVER SIZE)

Note: (Optional).

$10.99

$

In Stock, only 2 left!

0

4

Honda 12216-ZE5-300

CLIP, VALVE GUIDE

$1.99

$

In Stock, Qty 17

0

5

Honda 12251-ZH7-800

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD
(Superseded to 12251-ZH7-801)

$13.99

$

In Stock, only 2 left!

0

5

Honda 12251-ZH7-801

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD

$13.99

$

In Stock, only 2 left!

0

6

Honda 12310-ZE1-010

SEE PART DETAILS - SUP; COVER, HEAD
(Superseded to 12310-ZE1-020)

Note: Use up to Engine SN 2539585.

$19.99

$

In Stock, only 2 left!

0

6

Honda 12310-ZE1-010

SEE PART DETAILS - SUP; COVER, HEAD
(Superseded to 12310-ZE1-020)

Note: Use from Engine SN 2539586 to 3909674.

$19.99

$

In Stock, only 2 left!

0

6

Honda 12310-ZE1-020

SEE PART DETAILS - PRI; COVER, HEAD

Note: Use up to Engine SN 2539585.

$19.99

$

In Stock, only 2 left!

0

6

Honda 12310-ZE1-020

SEE PART DETAILS - PRI; COVER, HEAD

Note: Use from Engine SN 2539586 to 3909674.

$19.99

$

In Stock, only 2 left!

0

6

Honda 12310-ZE1-020

SEE PART DETAILS - PRI; COVER, HEAD

Note: Use from Engine SN 3909675.

$19.99

$

In Stock, only 2 left!

0

7

Honda 12391-ZE1-000

GASKET, HEAD COVER

$5.99

$

In Stock, Qty 20+

0

8

Honda 15721-ZH8-000

TUBE, BREATHER

$5.49

$

In Stock, Qty 20+

0

9

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: Use from Engine SN 2299857.

$2.49

$

In Stock, Qty 20+

0

9

Honda 90016-ZE1-000

BOLT, FLANGE (6X13) (CT200)

Note: Use up to Engine SN 2299856.

$3.99

$

Usually ships in 3-6 days

0

10

Honda 90043-ZE1-010

BOLT, STUD (6X109)

Note: Use up to Engine SN 2402519.

$7.49

$

Usually ships in 3-6 days

0

10

Honda 90043-ZE1-020

BOLT, STUD (6X112)

$7.49

$

In Stock, Qty 12

0

11

Honda 90047-ZE1-000

BOLT, STUD (8X32)

$4.99

$

In Stock, only 2 left!

0

12

Honda 94301-10160

PIN, DOWEL (10X16)

$3.49

$

In Stock, only 3 left!

0

14

Honda 95723-08055-00

BOLT, FLANGE (8X55)

$2.99

$

In Stock, only 1 left!

0

15

Honda 98079-55846

SEE PART DETAILS - PRI; SPARK PLUG (BPR5ES) (NGK)

Note: (Optional).

$3.99

$

In Stock, Qty 20+

0

15

Honda 98079-55855

SPARK PLUG (W16EPR-U) (DENSO)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

15

Honda 98079-56846

SPARK PLUG (BPR6ES) (NGK)

$3.99

$

In Stock, Qty 20+

0

15

Honda 98079-56855

SPARK PLUG (W20EPR-U) (DENSO)

$3.99

$

In Stock, Qty 8

0
