GX120 K1 QA2 (GC01) - Honda Engine, Made in Japan (SN: GC01-2000001 - GC01-4299999) CYLINDER HEAD Parts Diagram

Engine, Made in Japan

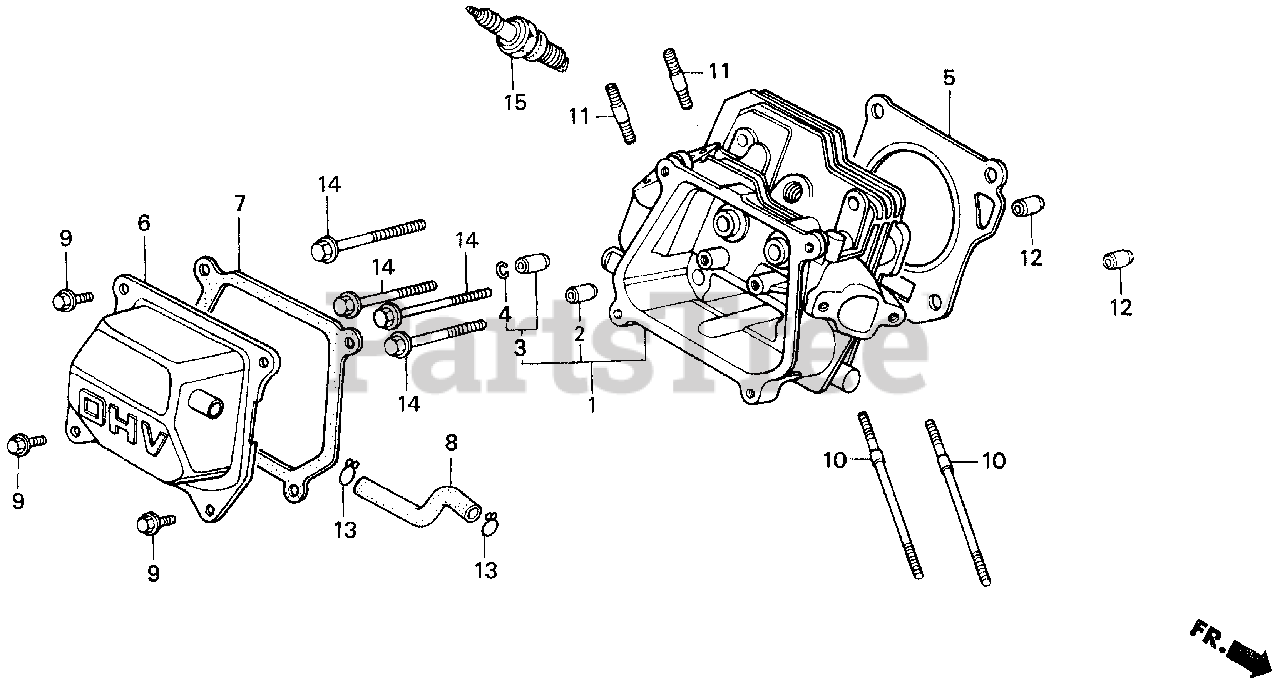

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12210-ZH7-000

CYLINDER HEAD

Note: (Honda Code 4505657).

$

$

Currently unavailable

1

Honda 12210-ZH7-010

CYLINDER HEAD

Note: (Honda Code 6775514).

$

$

Currently unavailable

2

Honda 12204-ZE1-306

GUIDE, VALVE (OS)

Note: (Optional). (Honda Code 4165874).

$9.99

$

Usually ships in 3-6 days

0

3

Honda 12205-ZE1-315

GUIDE, EX. VALVE (OS)

Note: (Optional). (Honda Code 1899848).

$10.99

$

In Stock, only 2 left!

0

4

Honda 12216-ZE5-300

CLIP, VALVE GUIDE

Note: (Honda Code 2399780).

$1.99

$

In Stock, Qty 17

0

5

Honda 12251-ZH7-800

GASKET, CYLINDER HEAD
(Superseded to 12251-ZH7-801)

Note: (Honda Code 3693637).

$13.99

$

In Stock, only 3 left!

0

6

Honda 12310-ZE1-000

COVER, HEAD

Note: (Honda Code 1426519).

$18.99

$

Usually ships in 3-6 days

0

6

Honda 12310-ZE1-010

COVER, HEAD
(Superseded to 12310-ZE1-020)

Note: (Honda Code 4725248).

$18.99

$

In Stock, only 1 left!

0

7

Honda 12391-ZE1-000

GASKET, CYLINDER HEAD COVER

Note: (Honda Code 1426527).

$5.49

$

In Stock, Qty 20+

0

8

Honda 15721-ZH8-000

TUBE, BREATHER

Note: (Honda Code 3683497).

$4.99

$

In Stock, Qty 11

0

9

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: Use from Engine SN 2299857. (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

9

Honda 90016-ZE1-000

BOLT, FLANGE (6X13)

Note: Use up to Engine SN 2299856. (Honda Code 1541002).

$3.99

$

Usually ships in 3-6 days

0

10

Honda 90043-ZE1-020

BOLT, STUD (6X109)

Note: (Honda Code 4588323).

$6.99

$

In Stock, only 1 left!

0

11

Honda 90047-ZE1-000

BOLT, STUD (8X32)

Note: (Honda Code 1431097).

$4.99

$

In Stock, only 1 left!

0

12

Honda 94301-10160

PIN A, DOWEL (10X16)

Note: (Honda Code 0058206).

$3.49

$

In Stock, only 3 left!

0

14

Honda 95723-08055-00

BOLT, FLANGE (8X55)

Note: (Honda Code 1436609).

$2.49

$

In Stock, only 1 left!

0

15

Honda 98079-55846

SPARK PLUG (BPR5ES) (NGK)

Note: (Optional). (Honda Code 1672443).

$3.99

$

In Stock, Qty 20+

0

15

Honda 98079-55855

SPARK PLUG (W16EPR-U) (DENSO)

Note: (Optional). (Honda Code 1672450).

$3.49

$

Usually ships in 3-6 days

0

15

Honda 98079-56846

SPARK PLUG (BPR6ES) (NGK)

Note: (Honda Code 1441112).

$3.99

$

In Stock, Qty 20+

0

15

Honda 98079-56855

SPARK PLUG (W20EPR-U) (DENSO)

Note: (Honda Code 1441120).

$3.99

$

In Stock, Qty 8

0
