GX120 K1 QA2 (GC01) - Honda Engine, Made in Japan (SN: GC01-2000001 - GC01-4299999) CYLINDER BARREL Parts Diagram

Engine, Made in Japan

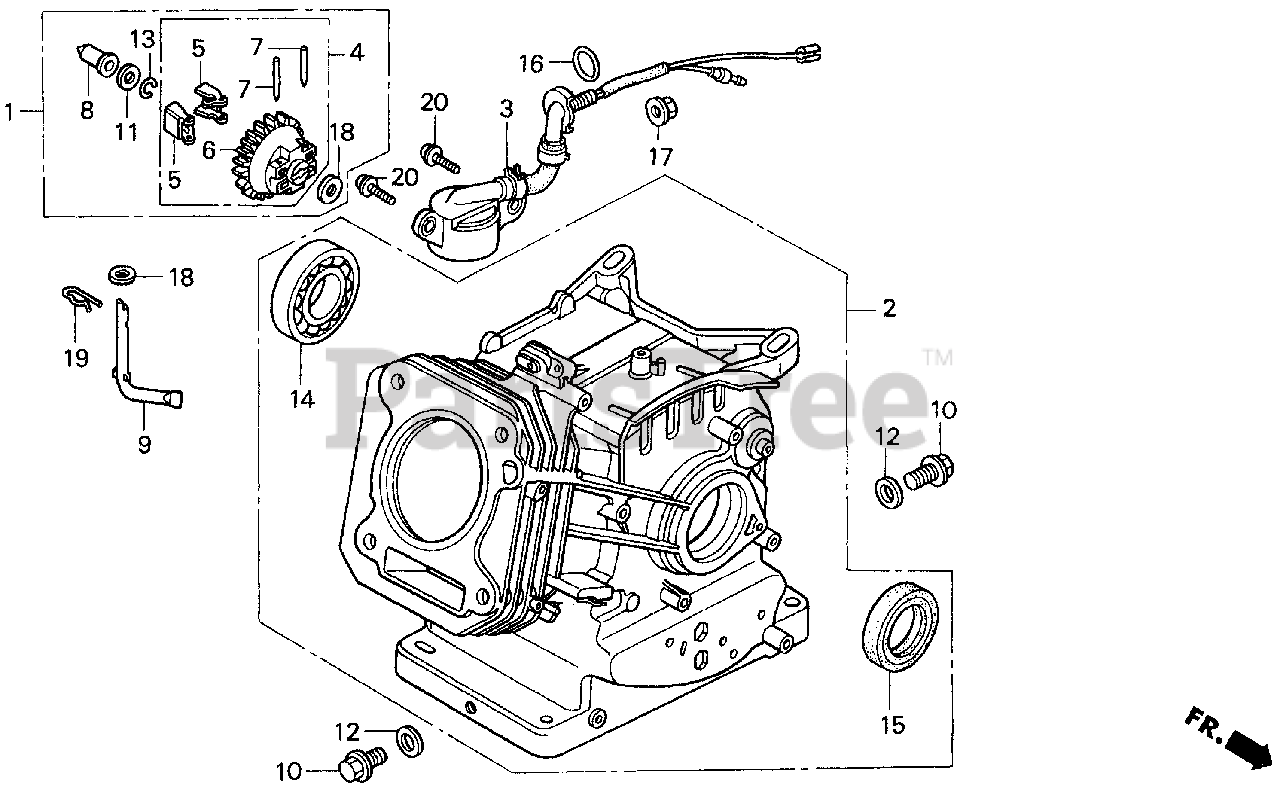

CYLINDER BARREL Parts Diagram

  • Title

2

Honda 12000-ZF0-405

CYLINDER ASSY. (020)

Note: (Honda Code 6379127).

$

$

Currently unavailable

2

Honda 12000-ZF0-405

CYLINDER ASSY. (020)

Note: Use up to Engine SN 3841370. (Honda Code 6379127).

$

$

Currently unavailable

2

Honda 12000-ZF0-415

CYLINDER ASSY. (030)

Note: Use from Engine SN 3841371. (Honda Code 6841167).

$

$

Currently unavailable

4

Honda 16510-ZE1-000

GOVERNOR ASSY.

Note: (Honda Code 2414225).

$16.99

$

In Stock, only 3 left!

0

5

Honda 16511-ZE1-000

WEIGHT, GOVERNOR

Note: (Honda Code 1427228).

$3.99

$

Usually ships in 3-6 days

0

6

Honda 16512-ZE1-000

HOLDER, GOVERNOR WEIGHT

Note: (Honda Code 1427236).

$24.99

$

In Stock, only 1 left!

0

7

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT

Note: (Honda Code 1427244).

$2.49

$

Usually ships in 3-6 days

0

8

Honda 16531-ZE1-000

SLIDER, GOVERNOR

Note: (Honda Code 1427251).

$3.49

$

In Stock, Qty 11

0

9

Honda 16541-ZE1-000

SHAFT, GOVERNOR ARM

Note: (Honda Code 1427277).

$13.99

$

Usually ships in 3-6 days

0

10

Honda 90131-ZE1-000

BOLT, DRAIN PLUG

Note: (Honda Code 1431246).

$3.49

$

In Stock, only 1 left!

0

11

Honda 90451-ZE1-000

WASHER, THRUST (6MM)

Note: (Honda Code 2413862).

$1.99

$

In Stock, Qty 5

0

12

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM)

Note: (Honda Code 1436583).

$1.49

$

In Stock, Qty 20+

0

13

Honda 90602-ZE1-000

CLIP, GOVERNOR HOLDER

Note: (Honda Code 2456697).

$1.99

$

In Stock, Qty 6

0

14

Honda 91001-878-003

BEARING, RADIAL BALL (62/22)

Note: (Honda Code 0442061).

$37.99

$

In Stock, only 1 left!

0

15

Honda 91202-ZE6-003

OIL SEAL (22X35X6)
(Superseded to 91202-ZE6-013)

Note: (Honda Code 3270246).

$9.99

$

In Stock, Qty 20+

0

18

Honda 94101-06800

WASHER, PLAIN (6MM)

Note: (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

19

Honda 94251-08000

PIN, LOCK (8MM)

Note: (Honda Code 0115527).

$1.99

$

In Stock, Qty 13

0
