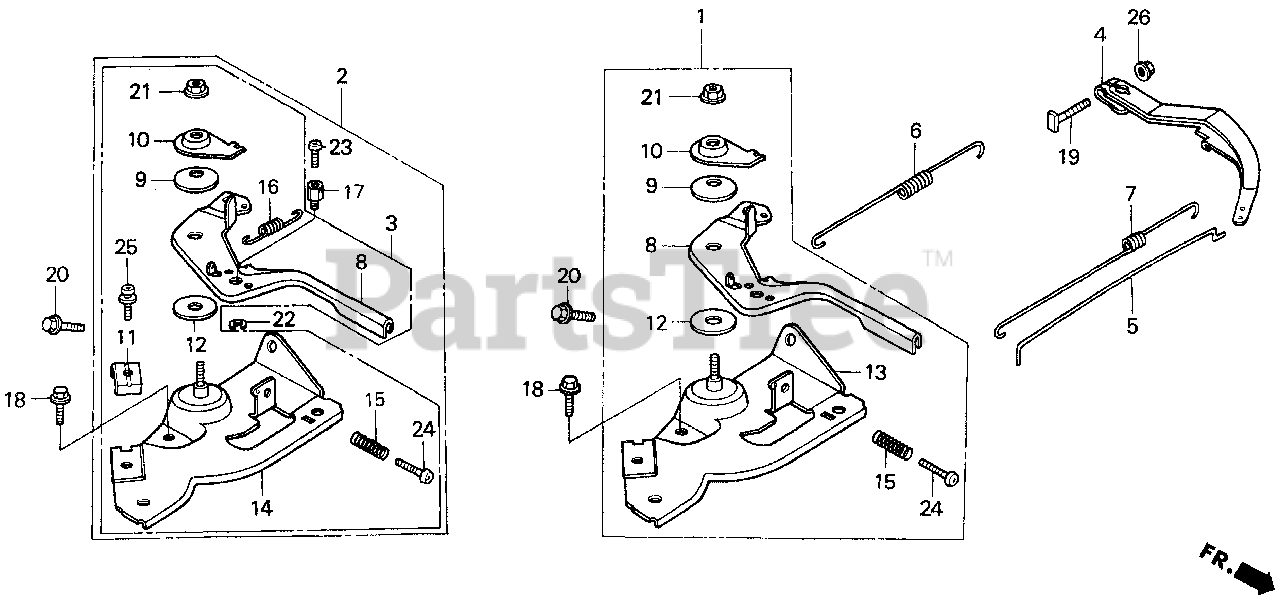

GX120 K1 QA2 (GC01) - Honda Engine, Made in Japan (SN: GC01-2000001 - GC01-4299999) CONTROL Parts Diagram

Engine, Made in Japan

CONTROL Parts Diagram

  • Title

3

Honda 16500-ZH7-820

CONTROL ASSY. (REMOTE)

Note: (Honda Code 3694908).

$41.99

$

Usually ships in 3-6 days

0

4

Honda 16551-ZE0-010

ARM, GOVERNOR

Note: (Honda Code 1950609).

$16.99

$

In Stock, only 2 left!

0

5

Honda 16555-ZE0-000

ROD, GOVERNOR

Note: (Honda Code 1427301).

$6.99

$

In Stock, only 1 left!

0

6

Honda 16561-ZE0-020

SPRING, GOVERNOR
(Superseded to 16561-ZE0-030)

Note: (Honda Code 1961390).

$4.49

$

In Stock, only 4 left!

0

7

Honda 16562-ZE0-020

SPRING, THROTTLE RETURN

Note: (Honda Code 1961408).

$4.49

$

In Stock, Qty 16

0

8

Honda 16571-ZH7-000

LEVER, CONTROL

Note: (Honda Code 3694924).

$16.99

$

In Stock, only 1 left!

0

9

Honda 16574-ZE1-000

SPRING, LEVER

Note: (Honda Code 1427384).

$4.49

$

In Stock, only 1 left!

0

10

Honda 16575-ZH8-000

WASHER, CONTROL LEVER

Note: (Honda Code 3683604).

$6.49

$

Usually ships in 3-6 days

0

11

Honda 16576-891-000

HOLDER, CABLE

Note: (Honda Code 0800466).

$5.49

$

In Stock, only 2 left!

0

12

Honda 16578-ZE1-000

SPACER, CONTROL LEVER

Note: (Honda Code 1427400).

$5.99

$

In Stock, only 3 left!

0

14

Honda 16580-ZH7-810

BASE, CONTROL

Note: (Honda Code 3694940).

$22.99

$

Usually ships in 3-6 days

0

15

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

Note: (Honda Code 0636431).

$5.49

$

In Stock, Qty 6

0

16

Honda 16592-ZE1-810

SPRING, CABLE RETURN

Note: (Honda Code 1445774).

$2.49

$

In Stock, Qty 5

0

18

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: (Honda Code 0636845).

$2.49

$

In Stock, Qty 19

0

19

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

Note: (Honda Code 2418671).

$3.49

$

In Stock, only 3 left!

0

20

Honda 90022-888-010

BOLT, FLANGE (6X20) (CT200)

Note: (Honda Code 0671552).

$3.49

$

In Stock, only 2 left!

0

21

Honda 90114-SA0-000

NUT, SELF-LOCK (6MM)

Note: (Honda Code 1410182).

$4.49

$

In Stock, Qty 20+

0

24

Honda 93500-05025-0H

SCREW, PAN (5X25)

Note: (Honda Code 0374702).

$1.49

$

In Stock, only 4 left!

0

25

Honda 93500-05016-0A

SCREW, PAN (5X16)

Note: Use from Engine SN 2308557. (Honda Code 0145557).

$1.49

$

In Stock, Qty 7

0

25

Honda 93893-05016-00

SCREW-WASHER (5X16)

Note: Use up to Engine SN 2308556. (Honda Code 0821512).

$1.49

$

Usually ships in 3-6 days

0

26

Honda 94050-06000

NUT, FLANGE (6MM)

Note: (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0
