GX120 K1 Q1 (GC01) - Honda Engine, Made in Japan (SN: GC01-2000001 - GC01-4299999) AIR CLEANER (4) Parts Diagram

Engine, Made in Japan

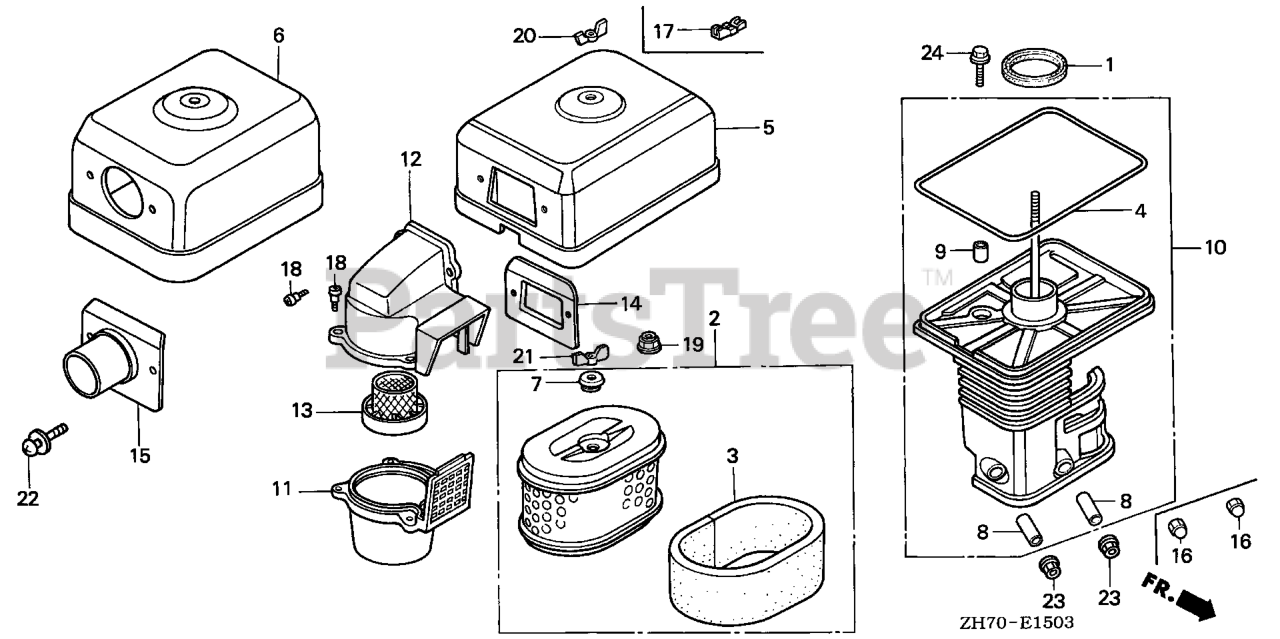

AIR CLEANER (4) Parts Diagram

  • Title

1

Honda 16271-ZE1-000

GASKET, ELBOW (Honda Code 1427194).

Note: (Optional)

$4.99

$

In Stock, Qty 9

0

2

Honda 17210-ZE1-517

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER (DUAL) Use up to Engine SN 2115700.
(Superseded to 17210-Z4M-821)

Note: (Optional)

$9.99

$

In Stock, Qty 20+

0

2

Honda 17210-Z4M-821

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER (DUAL)

Note: (Optional)

$9.99

$

In Stock, Qty 20+

0

3

Honda 17218-ZE1-821

SEE PART DETAILS - SUP; FILTER (OUTER)

Note: (Optional)

$11.99

$

In Stock, Qty 6

0

4

Honda 17219-733-010

SEE PART DETAILS - PRI; GASKET, AIR CLEANER COVER (Honda Code 2538437).

Note: (Optional)

$6.49

$

Usually ships in 3-6 days

0

5

Honda 17230-ZE1-841

COVER, AIR CLEANER (DUAL) (Honda Code 2574044).

Note: (Optional)

$29.99

$

Usually ships in 3-6 days

0

7

Honda 17232-891-000

GROMMET, AIR CLEANER (Honda Code 0999763).

Note: (Optional)

$5.99

$

In Stock, Qty 6

0

8

Honda 17238-ZE0-010

COLLAR, AIR CLEANER (Honda Code 2535037).

Note: (Optional)

$4.99

$

Usually ships in 3-6 days

0

9

Honda 17239-733-000

COLLAR B, AIR CLEANER (Honda Code 1493154).

Note: (Optional)

$4.49

$

Usually ships in 3-6 days

0

10

Honda 17410-ZE0-841

SEE PART DETAILS - PRI; ELBOW, AIR CLEANER

Note: (Optional)

$34.99

$

Usually ships in 3-6 days

0

11

Honda 17470-ZE1-842

SEE PART DETAILS - PRI; CASE, PRE AIR CLEANER (Honda Code 7423247).

Note: (Optional)

$14.99

$

In Stock, only 1 left!

0

12

Honda 17475-ZE1-841

CAP, PRE AIR CLEANER (Honda Code 2574093).

Note: (Optional)

$18.99

$

In Stock, only 1 left!

0

13

Honda 17476-ZE1-841

GUIDE, PRE AIR CLEANER (Honda Code 2574101).

Note: (Optional)

$9.49

$

In Stock, only 1 left!

0

14

Honda 17478-ZE1-841

PLATE, PRE AIR CLEANER (Honda Code 2574119).

Note: (Optional)

$8.99

$

In Stock, only 1 left!

0

16

Honda 90201-415-000

NUT, CAP (6MM) (Honda Code 0670729).

Note: Use up to Engine SN 2299856.

$2.99

$

Usually ships in 3-6 days

0

17

Honda 90203-PB2-000

SEE PART DETAILS - PRI; WINGNUT, AIR CLEANER COVER (Honda Code 0994855).

Note: (Optional) Use up to Engine SN 2185869.

$10.99

$

In Stock, only 3 left!

0

17

Honda 90203-ZA0-800

WINGNUT (6MM) (Honda Code 1742238).

Note: (Optional) Use from Engine SN 2185870 to 2336263.

$4.49

$

In Stock, only 1 left!

0

18

Honda 90300-GB0-900

BOLT, MUDGUARD (Honda Code 2574408).

Note: (Optional)

$3.99

$

In Stock, only 4 left!

0

20

Honda 90325-044-000

SEE PART DETAILS - PRI; WINGNUT, TOOL BOX SETTING (Honda Code 0127720).

Note: (Optional) Use from Engine SN 2336264.

$5.49

$

In Stock, Qty 20+

0

21

Honda 90325-044-000

SEE PART DETAILS - PRI; WINGNUT, TOOL BOX SETTING (Honda Code 0127720).

Note: (Optional)

$5.49

$

In Stock, Qty 20+

0

23

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

Note: Use from Engine SN 2299857.

$0.99

$

In Stock, Qty 20+

0

24

Honda 95701-06020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X20) (Honda Code 2105815).

Note: (Optional)

$2.49

$

In Stock, Qty 9

0
