GX120 K1 Q1 (GC01) - Honda Engine, Made in Japan (SN: GC01-2000001 - GC01-4299999) AIR CLEANER (2) Parts Diagram

Engine, Made in Japan

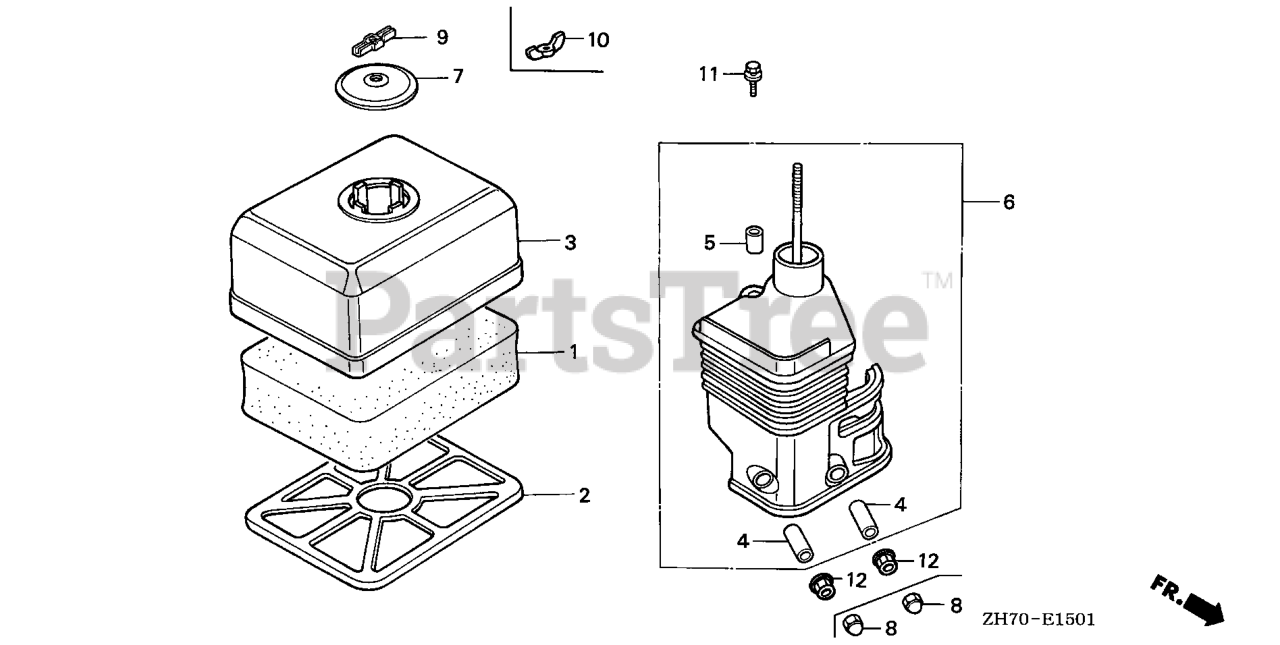

AIR CLEANER (2) Parts Diagram

  • Title

1

Honda 17211-ZE1-000

ELEMENT, AIR CLEANER (SEMI-DRY)

Note: (Optional)

$9.99

$

In Stock, only 1 left!

0

2

Honda 17212-ZE1-000

GRID, AIR CLEANER (SEMI-DRY)

Note: (Optional)

$9.49

$

In Stock, only 1 left!

0

3

Honda 17231-ZE0-000

COVER, AIR CLEANER (SEMI-DRY)

Note: (Optional)

$46.99

$

Usually ships in 3-6 days

0

4

Honda 17238-ZE0-010

COLLAR, AIR CLEANER (Honda Code 2535037).

Note: (Optional)

$4.99

$

Usually ships in 3-6 days

0

5

Honda 17239-ZE1-000

COLLAR B, AIR CLEANER (Honda Code 1427533).

Note: (Optional)

$4.99

$

In Stock, Qty 7

0

6

Honda 17410-ZE0-040

SEE PART DETAILS - PRI; ELBOW, AIR CLEANER

Note: (Optional)

$37.99

$

In Stock, only 2 left!

0

6

Honda 17410-ZE0-812

SEE PART DETAILS - PRI; ELBOW, AIR CLEANER

Note: (Optional)

$9.49

$

Usually ships in 3-6 days

0

7

Honda 17421-ZE1-000

CAP, CLEANER (Honda Code 1427616).

Note: (Optional)

$12.99

$

In Stock, only 4 left!

0

8

Honda 90201-415-000

NUT, CAP (6MM) (Honda Code 0670729).

Note: Use up to Engine SN 2299856.

$2.99

$

In Stock, Qty 12

0

9

Honda 90203-PB2-000

SEE PART DETAILS - PRI; WINGNUT, AIR CLEANER COVER (Honda Code 0994855).

Note: (Optional) Use up to Engine SN 2185869.

$10.99

$

In Stock, only 3 left!

0

9

Honda 90203-ZA0-800

WINGNUT (6MM) (Honda Code 1742238).

Note: (Optional) Use from Engine SN 2185870 to 2336263.

$4.49

$

In Stock, only 1 left!

0

10

Honda 90325-044-000

SEE PART DETAILS - PRI; WINGNUT, TOOL BOX SETTING (Honda Code 0127720).

Note: (Optional) Use from Engine SN 2336264.

$5.49

$

In Stock, Qty 20+

0

11

Honda 93404-06020-08

SEE PART DETAILS - PRI; BOLT-WASHER (6X20)

$2.49

$

In Stock, only 2 left!

0

12

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

Note: Use from Engine SN 2299857.

$0.99

$

In Stock, Qty 20+

0
