GX120 K1 PX2 (GC01) - Honda Engine, Made in Japan (SN: GC01-2000001 - GC01-4299999) CONTROL (1) Parts Diagram

Engine, Made in Japan

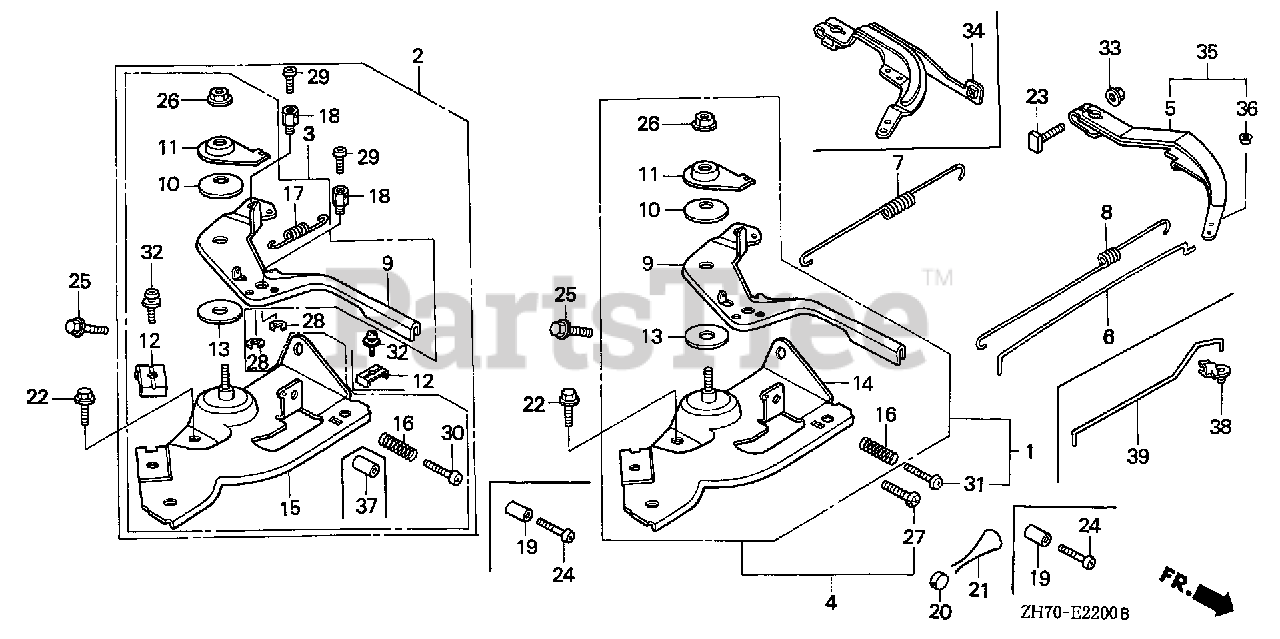

CONTROL (1) Parts Diagram

  • Title

1

Honda 16500-ZH7-000

CONTROL ASSY.

$36.99

$

Usually ships in 3-6 days

0

5

Honda 16551-ZE0-010

ARM, GOVERNOR

$15.99

$

Usually ships in 3-6 days

0

6

Honda 16555-ZE0-000

ROD, GOVERNOR

$6.49

$

Usually ships in 3-6 days

0

7

Honda 16561-ZE0-020

SEE PART DETAILS - SUP; SPRING, GOVERNOR
(Superseded to 16561-ZE0-030)

$3.99

$

In Stock, only 1 left!

0

7

Honda 16561-ZE0-030

SEE PART DETAILS - PRI; SPRING, GOVERNOR

$3.99

$

In Stock, only 1 left!

0

8

Honda 16562-ZE0-020

SPRING, THROTTLE RETURN

$4.49

$

In Stock, Qty 20+

0

9

Honda 16571-ZH7-000

LEVER, CONTROL

$14.99

$

In Stock, only 1 left!

0

10

Honda 16574-ZE1-000

SPRING, LEVER

$4.49

$

In Stock, only 2 left!

0

11

Honda 16575-ZH8-000

WASHER, CONTROL LEVER

$5.99

$

Usually ships in 3-6 days

0

13

Honda 16578-ZE1-000

SPACER, CONTROL LEVER

$5.49

$

In Stock, only 4 left!

0

14

Honda 16580-ZH7-000

BASE, CONTROL

$20.99

$

Usually ships in 3-6 days

0

16

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

$4.99

$

In Stock, Qty 7

0

22

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

23

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

$3.49

$

In Stock, only 3 left!

0

25

Honda 90022-888-010

BOLT, FLANGE (6X20) (CT200)

$2.99

$

In Stock, only 2 left!

0

26

Honda 90114-SA0-000

NUT, SELF-LOCK (6MM)

$4.49

$

Usually ships in 3-6 days

0

31

Honda 93500-05025-0H

SCREW, PAN (5X25)

Note: Use from Engine SN 2812717.

$0.99

$

In Stock, only 4 left!

0

31

Honda 93500-05028-0A

SCREW, PAN (5X28)

Note: Use up to Engine SN 2812716.

$1.49

$

In Stock, Qty 5

0

33

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0
