GX120 K1 LX2 (GC01) - Honda Engine, Made in Japan (SN: GC01-2000001 - GC01-4299999) 1/2 REDUCTION Parts Diagram

Engine, Made in Japan

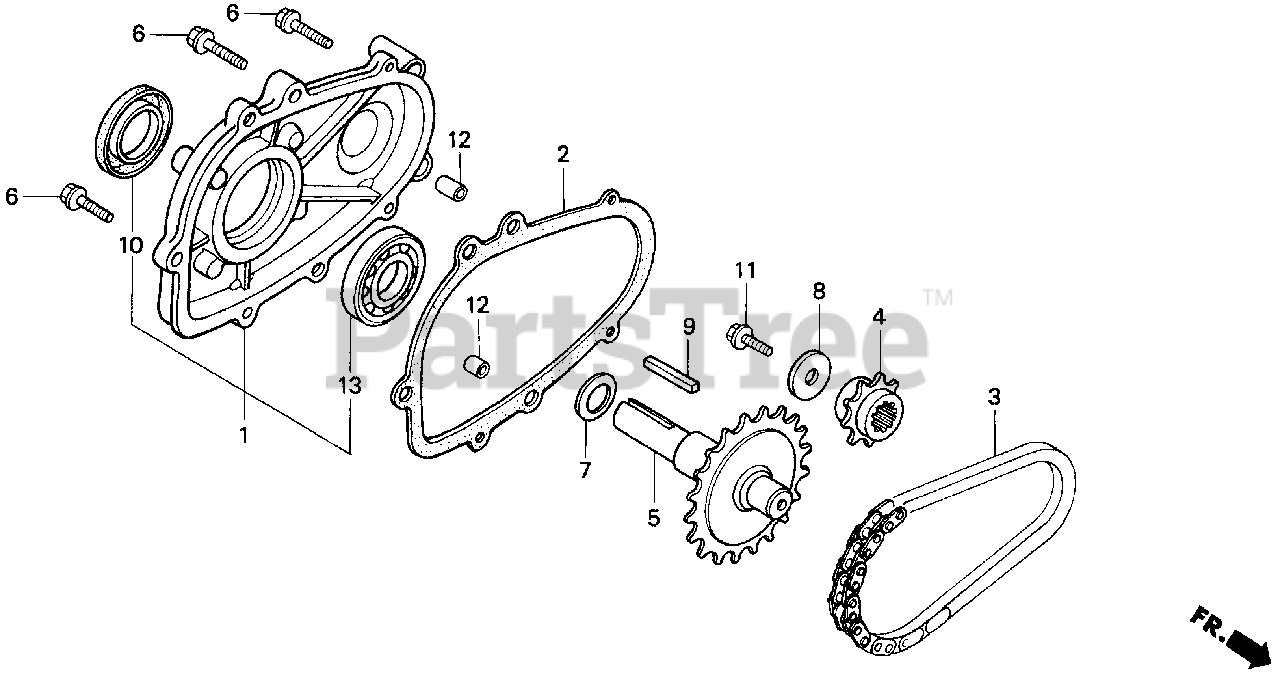

1/2 REDUCTION Parts Diagram

  • Title

1

Honda 11500-ZE1-610

COVER ASSY., CHAIN CASE

Note: (Honda Code 1899798).

$

$

Currently unavailable

2

Honda 11521-ZH8-800

GASKET, CHAIN CASE COVER

Note: (Honda Code 3735362).

$8.49

$

Usually ships in 3-6 days

0

3

Honda 14411-ZE0-611

CHAIN, P.T.O. DRIVE

Note: (Honda Code 3046638).

$27.99

$

Usually ships in 3-6 days

0

4

Honda 23110-ZE0-610

SPROCKET, DRIVE

Note: (Honda Code 3046646).

$46.99

$

Usually ships in 3-6 days

0

5

Honda 23710-ZE0-613

SHAFT, P.T.O.

Note: (Honda Code 4058889).

$150.99

$

Usually ships in 3-6 days

0

6

Honda 90015-883-000

BOLT, FLANGE (6X28)

Note: (Honda Code 0636852).

$3.99

$

Usually ships in 3-6 days

0

7

Honda 90456-ZE1-000

SPRING, THRUST

Note: (Honda Code 2946226).

$5.49

$

Usually ships in 3-6 days

0

8

Honda 90471-ZE1-610

WASHER (8MM)

Note: (Honda Code 1904366).

$5.49

$

Usually ships in 3-6 days

0

9

Honda 90741-883-810

KEY (5X5X33)

Note: (Honda Code 1033505).

$11.99

$

Usually ships in 3-6 days

0

10

Honda 91202-883-005

OIL SEAL (25X41X6)
(Superseded to 91201-Z0T-801)

Note: (Honda Code 0636936).

$8.99

$

In Stock, only 2 left!

0

11

Honda 92101-08025-0A

BOLT, HEX. (8X25)

Note: (Honda Code 2651537).

$2.49

$

In Stock, Qty 6

0

12

Honda 94301-08140

PIN A, DOWEL (8X14)

Note: (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0

13

Honda 96100-62050-00

BEARING, RADIAL BALL (6205)

Note: (Honda Code 0636977).

$24.99

$

In Stock, only 1 left!

0
