GX120 K1 LW2 (GC01) - Honda Engine, Made in Japan (SN: GC01-2000001 - GC01-4299999) CARBURETOR (1) Parts Diagram

Engine, Made in Japan

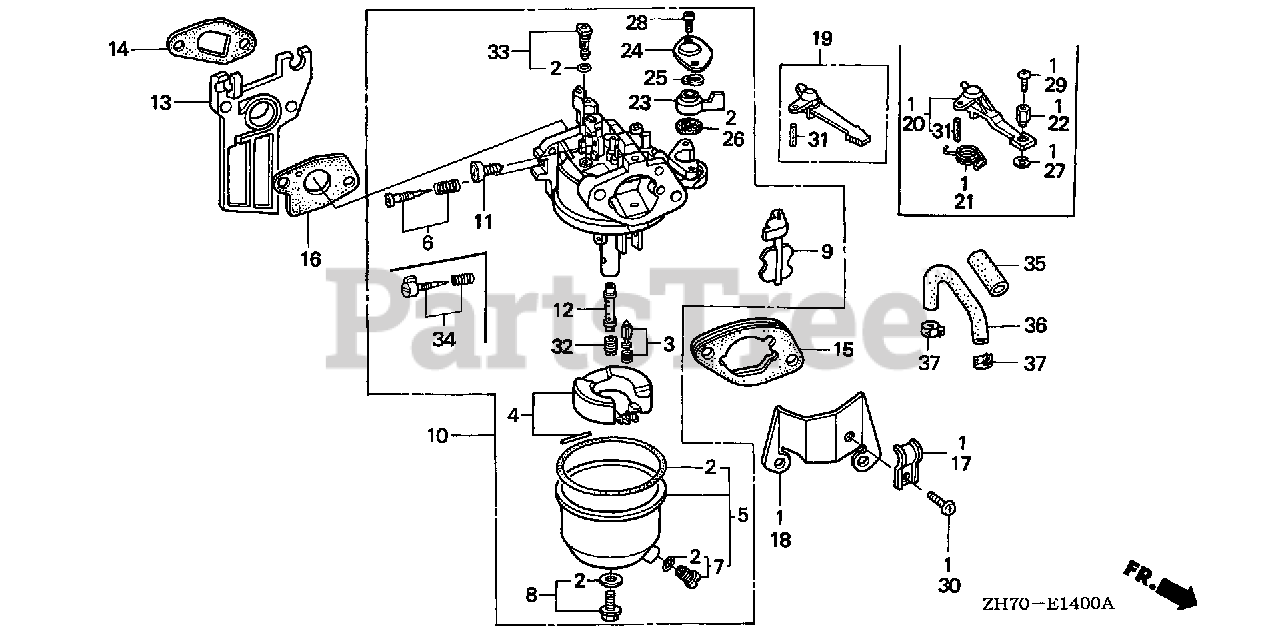

CARBURETOR (1) Parts Diagram

  • Title

2

Honda 16010-ZE0-025

SEE PART DETAILS - PRI; GASKET SET

$20.99

$

In Stock, Qty 6

0

3

Honda 16011-ZE0-005

VALVE SET, FLOAT (SEAT NOT INCLUDED)

$30.99

$

In Stock, only 1 left!

0

4

Honda 16013-ZE0-005

FLOAT SET

$31.99

$

In Stock, only 1 left!

0

5

Honda 16015-ZE0-831

CHAMBER SET, FLOAT (CARBURETOR NO.)

Note: Use from Engine SN BE12B C.

$38.99

$

In Stock, only 2 left!

0

5

Honda 16015-ZE1-811

CHAMBER SET, FLOAT (CARBURETOR NO.)
(Superseded to 16015-ZE0-831)

Note: Use up to Engine SN BE12B B.

$38.99

$

In Stock, only 2 left!

0

6

Honda 16016-ZE0-005

SCREW SET, PILOT (CARBURETOR NO.)

$15.99

$

In Stock, only 1 left!

0

7

Honda 16024-ZE1-811

SCREW SET, DRAIN

$10.99

$

In Stock, only 3 left!

0

8

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

8

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 1 left!

0

9

Honda 16044-ZE0-005

CHOKE SET (CARBURETOR NO.)

Note: Use from Engine SN BE12B B.

$39.99

$

Usually ships in 3-6 days

0

10

Honda 16100-ZH7-812

CARBURETOR ASSY. (BE12B C)

$97.99

$

Usually ships in 3-6 days

0

11

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

12

Honda 16166-ZH7-W50

SEE PART DETAILS - SUP; NOZZLE, MAIN (CARBURETOR NO.)
(Superseded to 16166-ZK7-S91)

Note: Use from Engine SN BE12B B.

$22.99

$

Usually ships in 3-6 days

0

12

Honda 16166-ZH7-820

NOZZLE, MAIN (CARBURETOR NO.)

Note: Use up to Engine SN BE12B A.

$25.99

$

Usually ships in 3-6 days

0

12

Honda 16166-ZK7-S91

SEE PART DETAILS - PRI; NOZZLE, MAIN

Note: Use from Engine SN BE12B B.

$22.99

$

Usually ships in 3-6 days

0

13

Honda 16211-ZE0-000

INSULATOR, CARBURETOR

$20.99

$

In Stock, only 1 left!

0

14

Honda 16212-ZH7-800

GASKET, INSULATOR

Note: Use from Engine SN 2272435.

$2.99

$

In Stock, Qty 17

0

15

Honda 16220-ZE1-020

SEE PART DETAILS - PRI; SPACER, CARBURETOR

$8.49

$

In Stock, Qty 20+

0

16

Honda 16221-ZE0-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-ZH8-801)

Note: Use up to Engine SN 2272434.

$2.49

$

In Stock, Qty 20+

0

16

Honda 16221-ZH8-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

19

Honda 16610-ZE1-000

LEVER, CHOKE (STD)

$11.99

$

In Stock, Qty 8

0

23

Honda 16953-ZE1-812

LEVER, PETCOCK

$10.99

$

In Stock, Qty 10

0

24

Honda 16954-ZE1-812

PLATE, LEVER SETTING

$4.49

$

In Stock, only 1 left!

0

25

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER

$4.49

$

Usually ships in 3-6 days

0

26

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK

$4.49

$

In Stock, Qty 20+

0

28

Honda 93500-03006-0H

SCREW, PAN (3X6)

Note: Use from Engine SN BE12B C.

$1.49

$

In Stock, only 3 left!

0

28

Honda 93500-03008-1G

SCREW, PAN (3X8) (CARBURETOR NO.)

Note: Use up to Engine SN BE12B B.

$

$

Currently unavailable

31

Honda 94305-20122

PIN, SPRING (2X12)

$2.49

$

In Stock, only 4 left!

0

32

Honda 99101-ZF5-0550

JET, MAIN (#55) (CARBURETOR NO.)

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

32

Honda 99101-ZF5-0580

SEE PART DETAILS - SUP; JET, MAIN (#58) (CARBURETOR NO.)
(Superseded to 99101-ZK7-0580)

Note: (Optional).

$8.99

$

Usually ships in 3-6 days

0

32

Honda 99101-ZH7-0600

JET, MAIN (#60) (CARBURETOR NO.)

Note: Use from Engine SN BE12B B.

$9.49

$

Usually ships in 3-6 days

0

32

Honda 99101-ZK7-0580

SEE PART DETAILS - PRI; JET, MAIN (#58)

Note: (Optional).

$8.99

$

Usually ships in 3-6 days

0

32

Honda 99101-ZK7-0600

JET, MAIN (#60)

Note: Use up to Engine SN BE12B A.

$10.99

$

Usually ships in 3-6 days

0

33

Honda 99204-ZE0-0350

JET SET, PILOT (#35)

$23.99

$

In Stock, only 2 left!

0
